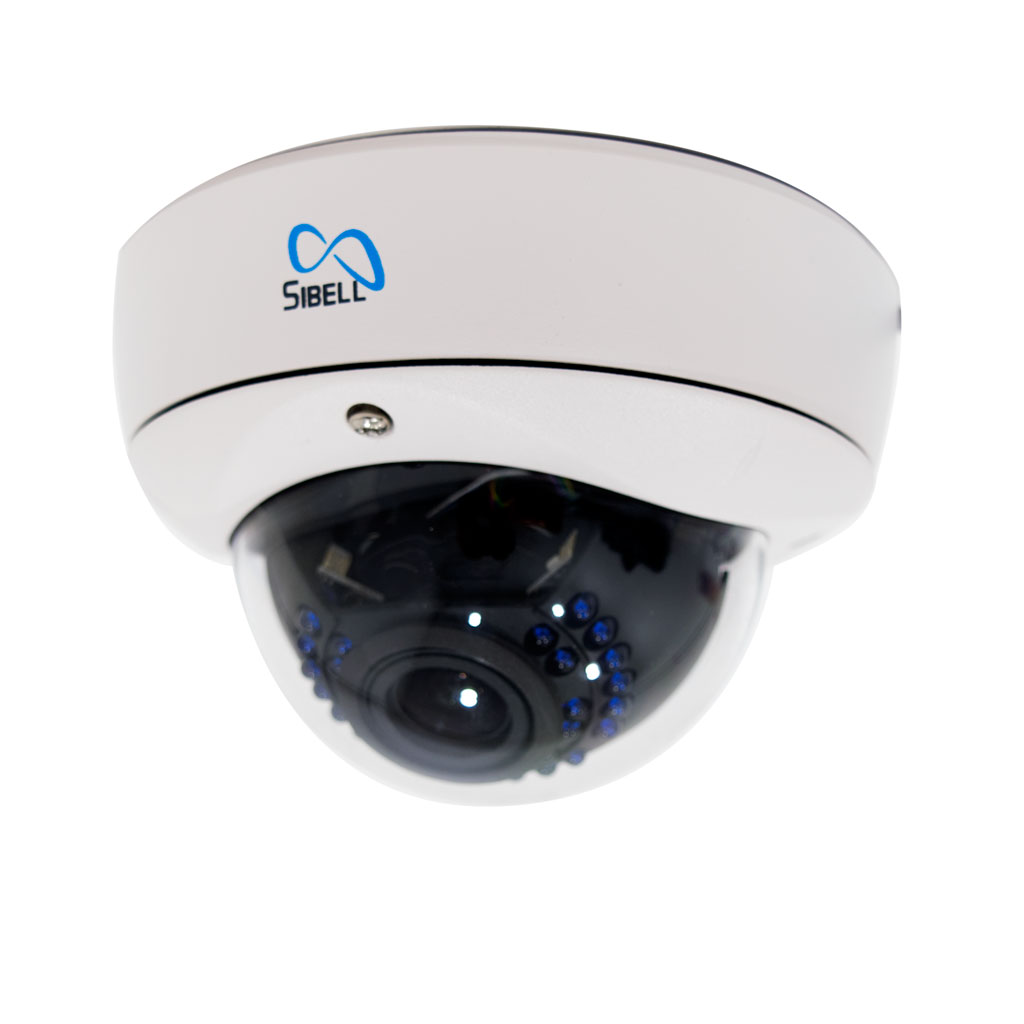

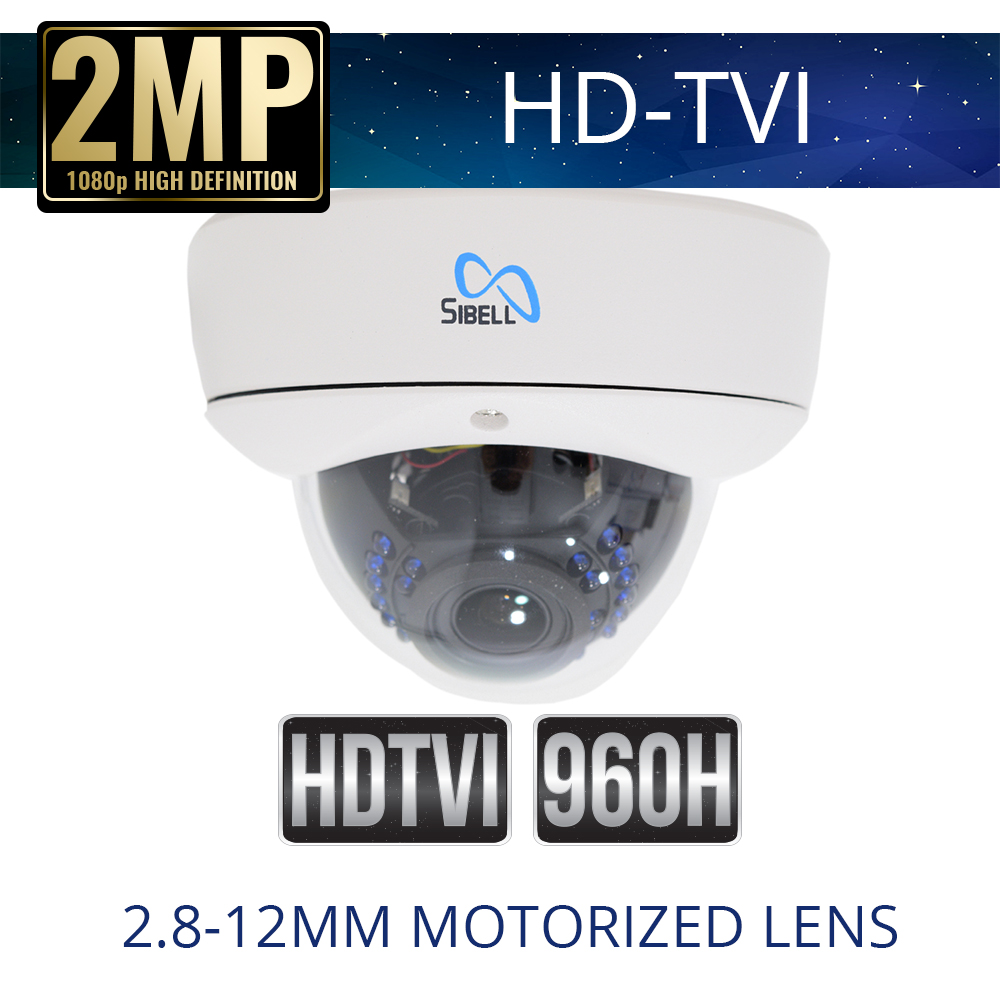

2mp TVI Vandalproof Dome with IR & Motorized Zoom Lens

Sibell TVIVD-SB2IRZW 2mp TVI Motorized Zoom Vandal Dome with IR is a IP66 rated HD-TVI Hd Over coaxial cable security camera that works with Sibell DVRs and DVRs that utilize HD-TVI inputs. The TVIVD-SB2IRW will produce 960H analog output is need and is a affordable mototized lens option for HD-TVI Security Systems.

Key Features:

  • 2 Mega Pixel 1080P ( 1920 x 1080 )
  • Max. Resolution: 1920 x 1080
  • 2.8-12mm Motorized Zoom
  • 80 ~ 95 feet IR night view distance
  • TVI High Definition Over Coaxial Cable
  • Day Night, White Balance
  • 12vDC Power Supply

Product Description

Image Sensor1/2.8” 2.0M SONY IMX322 Exmor CMOS
Effective Pixels1984(H) X 1105(V)
Scanning SystemProgressive
Sensor area7.6mmX5.8mm
ResolutionDigital:1920×1080p(1080p/30fps) 1280×720p(720p/60fps)  Analog:700TVL
Minimum illuminationCOLOR:0. [email protected](F2.0, AGC ON)  B&W:[email protected](F2.0, AGC ON)
S/N ratio>50dB(AGC Off)
White balanceAUTO
Lens2.8-12mm Autofocal Lens
Video outputHD-TVI (1080P)
IR LED30Pcs  ø 5mm IR LED (wavelength 850nm)
IR distance80-95 Feet (25-30m)
Power SupplyDC 12V ±10%
Power Consumption< 4.2W
Operating Environment– 10 °C ~ 50 °C,10 % ~ 90 % humidity
Dimensions ( in )5.9in x  3.7in


Download “TVIVD-SB2IRZW Specsheet” TVIVD-SB2IRZW-Specsheet.pdf – Downloaded 281 times – 383 KB

Download “TVIVD-SB2IRZW Manual” TVIVD-SB2IRZW-Manual-1.pdf – Downloaded 507 times – 1 MB
