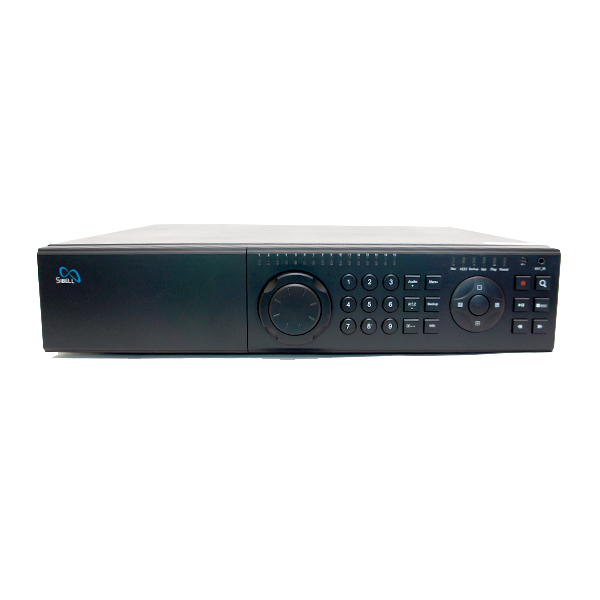

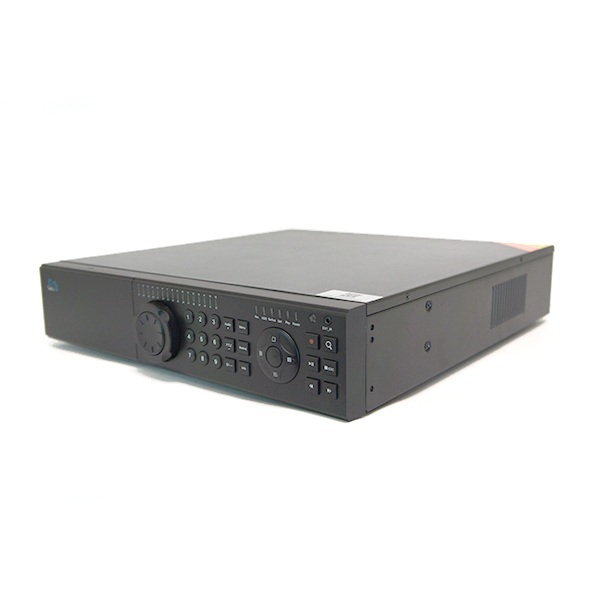

32ch Sibell NVR 8HDD
NVR-SB32 32ch Sibell NVR 8HDD supports camera resolutions from 720p to 5 Mega Pixels. H.265 High profile compression available to help save you on hard drive space. This 32ch Sibell NVR 8HDD can take a 8 hard drives up to 6TB each. The Sibell User interface was designed for usability, and can easily be interpreted as one of the most intuitive systems developed and embedded. This 32 channel machine is powerful enough for the largest jobs without losing any of the usability. This NVR will also take ONVIF compatible devices.
Key Features:
- Supports 32ch 1MP(720p) – 5MP IP Inputs
- H.265 high profile compression format
- Intuitive, user-friendly GUI with Modular Design
- Recording Modes in Manual, motion, sensor or timer
- 16 ch Simultaneous playback
- Search video: Time Slice, Time, Event or Tag Search
- Express backup options
- Remote Monitoring via Browser or CMS
- Mobile Viewing Via Sibell Mobile App on IOS & Android
- NAT function & QRCode scan to set up mobile viewing
Description
Model#: NVR-SB32 32ch Sibell NVR 8HDD |
||
| System | Compression | Standard H.265 |
| OS | Embedded Linux | |
| Video | Network Input | 32 CH IPC input |
| Bandwidth | 256Mbps | |
| Network Access Format
|
5MP / 4MP / 3MP / 1080P / 960P / 720P@25 / 30fps | |
| Output | HDMI × 2: one input 4K x 2K/ 1920 x 1080 / 1280 x 1024 the other 1920 x 1080 / 1280 x 1024
VGA x1: 1920×1080/ 1280 x 1024 |
|
| Audio | Network Input | 32 CH IPC audio input |
| 2-way Audio | RCA x 1 | |
| Local Output | RCA x 1 | |
| Record | Record Stream | Dual stream recording |
| Resolution | 5MP / 4MP / 3MP / 1080P / 960P / 720P | |
| Mode | Manual, timer, motion, sensor | |
| Playback | Simultaneous Playback | Max 16 CH |
| Search | Time slice / time / event / tag search | |
| Smart Search | Highlighted color to display the camera record in a certain period of time, different colors refers to different record events | |
| Function | Play, pause, FF, FB, digital zoom, etc. | |
| Alarm | Mode | Manual, sensor, motion, exception |
| Input | 8 CH local alarm input, support IPC alarm input | |
| Output | 4Ch | |
| Triggering | Record, snap, preset, e-mail, etc. | |
| Network | Interface | RJ45 10 / 100 / 1000 Mbps × 2 |
| Protocol | TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP | |
| Web Client | Max 10 users online | |
| Mobile Device | OS | IOS, Android |
| Storage | HDD | SATA × 8, e-SATA × 2, max 6T per HDD |
| Backup | Local Backup | U disk, USB mobile HDD |
| Network Backup | Yes | |

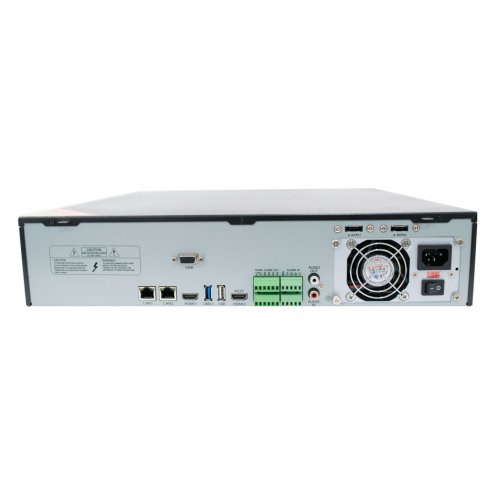

| Port | USB | USB 2.0 × 2 ( one in the front panel and the other in the rear panel ), USB 3.0 × 1 ( rear panel ) |
| Remote Controller | Yes | |
| Others | Power Supply | ATX |
| Consumption | ≤ 15W ( without HDD ) | |
| Dimensions | 17 × 18 × 3.5 ( W × D × H ) in | |
| Environment | -10 °C ~ 50 °C 10% ~ 90% humidity | |
Documents
Download “NVR-SB32 Specsheet”
NVR-SB32-Specsheet.pdf – Downloaded 746 times – 357.13 KBDownload “NVR-SB32 Quick Start Guide”
NVR-SB32-QSG.pdf – Downloaded 653 times – 1.46 MBDownload “Sibell NVR Manual”
Sibell-2016-NVR-manual.pdf – Downloaded 4966 times – 6.32 MBYou must be logged in to post a review.
