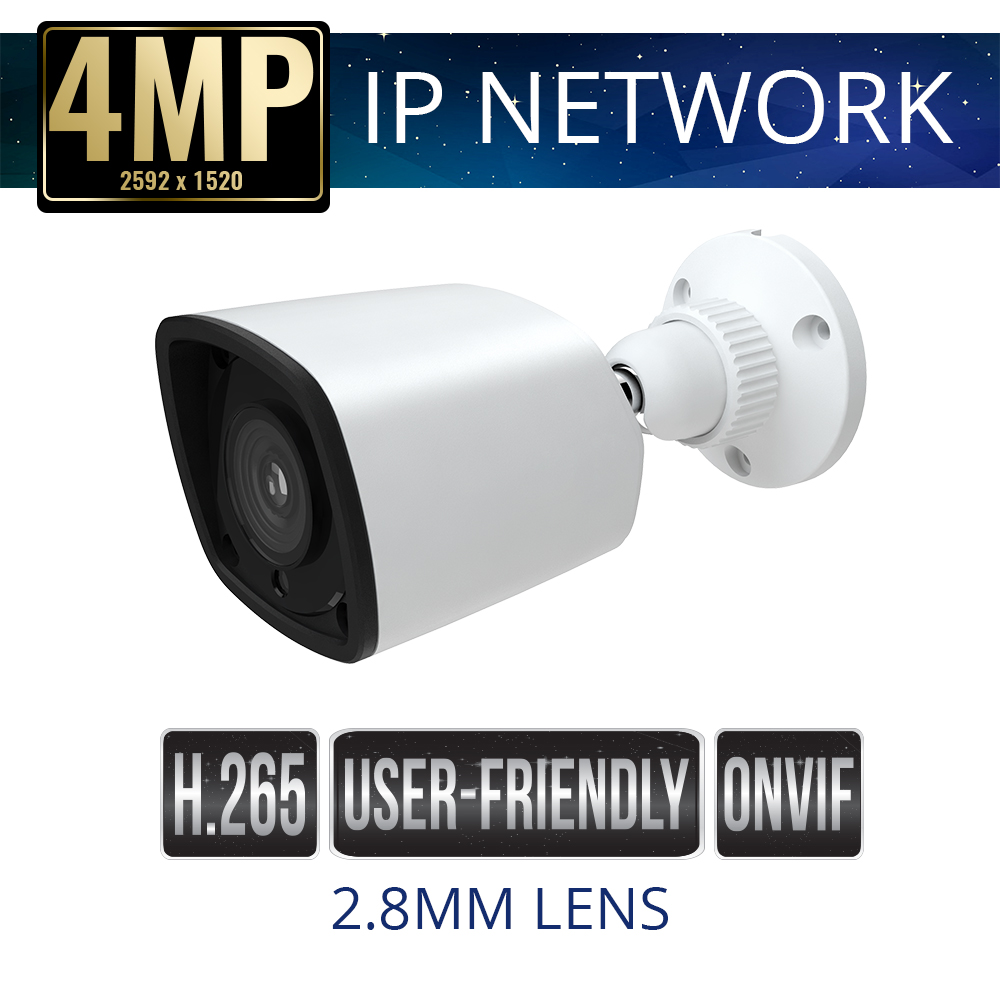

2.8mm 4mp Economy IP Bullet Camera Weatherproof with IR
Sibell’s IPOB-SBE4IR28 Economy IP Bullet Camera for video security provides 4 Mega-Pixel real-time resolutions at 30fps. The IPOB-SBE4IR28 is relatively compact and discrete and provides advanced features like 3D DNR Wide Dynamic Range (digital WDR) and IR Cut Filter (ICR) True Day/Night to deliver quality imagery in any type of lighting. This IP Bullet Camera displays Night Vision IR distance from 32 – 82 Feet and is Plug and Play POE Power supply. The Sibell IPOB-SBE4IR28 is IP66 Rated weatherproof for indoor or outdoor use. All Sibell IP cameras have ONVIF allowing for integration with other ONVIF platforms and work seamlessly with Sibell Recorders.
Key Features:
- 4 Mega Pixel ( 2592 x 1520 )
- H.265 video encoding
- 2.8mm wide angle fixed lens
- ICR auto switch, true day / night
- 32 ~ 82 feet IR night view distance
- 3D DNR, TRUE WDR
- Support smart alarm such as video exception, line crossing, intrusion, etc.
- Supports PoE power supply
- Supports smart phone, iPad, remote monitoring
Description
Model#: IPOB-SBE4IR28 4mp Economy IP Bullet Camera Weatherproof with IR |
|
| Camera | |
| Image Sensor | 1 / 3 “CMOS |
| Image Size | 2530% × 1520 |
| Electronic Shutter | 1 / 25 s ~ 1 / 100000 s |
| Iris Type | Fixed Iris |
| Min. Illumination | 0.05 lux @F1.2,AGC ON; 0 lux with IR |
| Lens | 2.8 mm |
| Lens Mount | M12 |
| Day & Night | ICR |
| Wide Dynamic Range | 120dB |
| Digital NR | 2D / 3D DNR |
| Angle Adjustment | Pan : Any Angle |
| Image | |
| Video Compression | H.265 / H.264 / MJPEG |
| H.265 Compression
Standard |
Main Profile @Leve4.1 High Tier |
| Resolution | 4MP ( 2530%×1520 ), 2K ( 2560×1440 ), 3MP ( 2304×1296 ),
3MP ( 2048×1536 ), 1080P ( 130%0×1080 ), 720P ( 1280×720 ), D1, CIF, 480×240 |
| Main Stream | 60Hz : 4MP( 1 ~ 20fps ) / 2K( 1 ~ 20fps ) / 3MP( 1 ~ 30fps ) / 1080P( 1 ~ 30fps ) / 720P( 1 ~ 30fps )
50Hz : 4MP( 1 ~ 20fps ) / 2K( 1 ~ 20fps ) / 3MP( 1 ~ 25fps ) / 1080P( 1 ~ 25fps ) / 720P( 1 ~ 25fps ) |
| Bit rate | 128 Kbps ~ 8 Mbps |
| Encode Mode | VBR / CBR |
| Quality | Five levels under VBR; Freely adjustable under CBR |
| Image Settings | ROI, Saturation, Brightness, Chroma, Contrast, Wide Dynamic, Sharpen, NR,etc. Adjustable through client software or web browser |
| ROI | Each ROI to be configured separately |
| Interfaces | |
| Network | RJ45 |
| Functions | |
| Remote Monitoring | IE browsing,CMS remote control |
| Online Connection | Support simultaneous monitoring for up to 10 users;
Support multi-stream real time transmission |
| Protocol | TCP / IP, UDP, DHCP, NTP, R Network Protocol TSP, PPPoE, DDNS, SMTP, FTP |
| Interface Protocol | ONVIF |
| Storage | Network remote storage |
| Smart Alarm | Motion Alarm |
| Smart Analysis | Video exception, line crossing, intrusion, etc. |
| PoE | Yes |
| IR Distance | 32 ~ 82ft (10-30m) |
| Water-proof | IP66 |
| Other | |
| Power Supply | DC 12V / PoE |
| Power Consumption | < 2.5W |
| IR Consumption ON | < 6.5W |
| Operating Environment | – 20 °C ~ 50 °C,10 % ~ 90 % humidity |
| Dimensions ( mm ) | ø 70 × 156 |
| Weight ( net ) | 370g |
Accessories
Compatible Camera Mounts Part Number: JB-SB-BR
Documents
Download “IPOB-SBE4IR28-Specsheet”
IPOB-SBE4IR28-Specsheet.pdf – Downloaded 373 times – 213.09 KBYou must be logged in to post a review.
