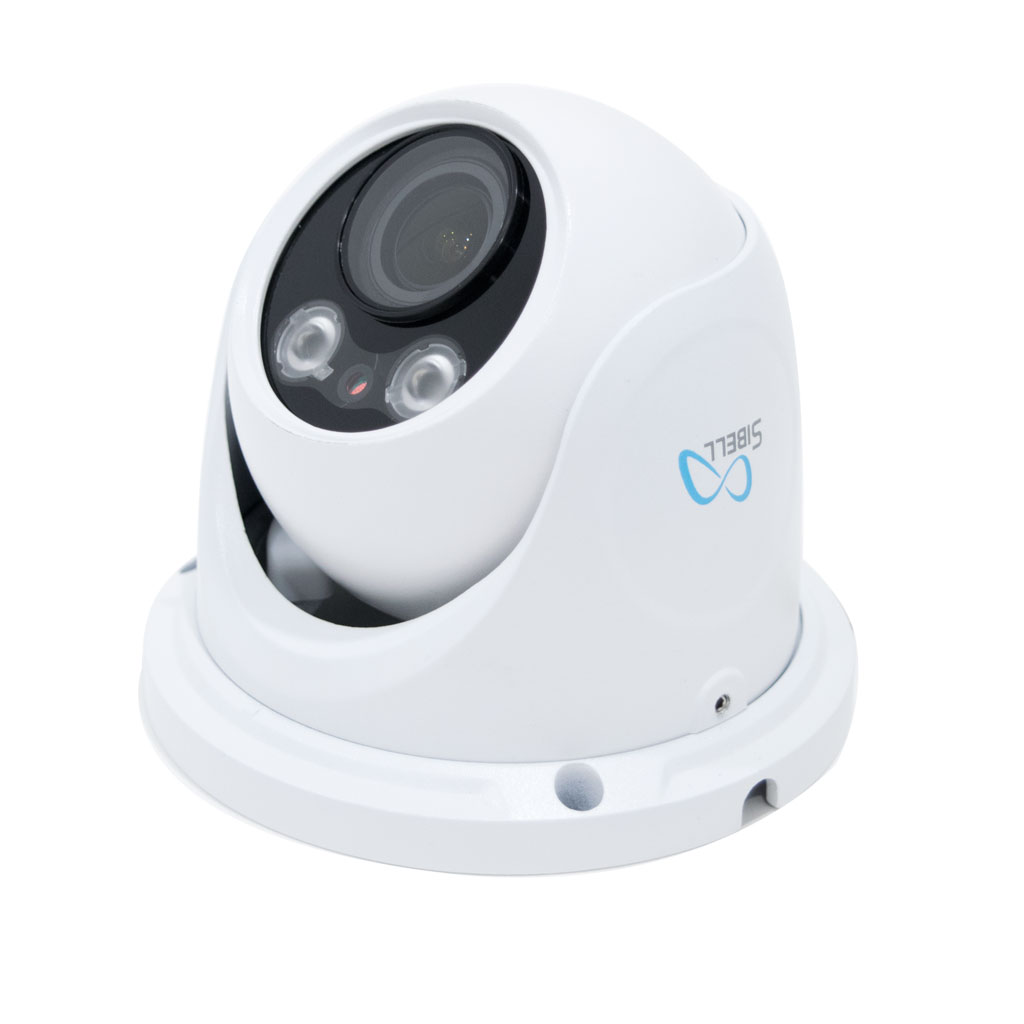

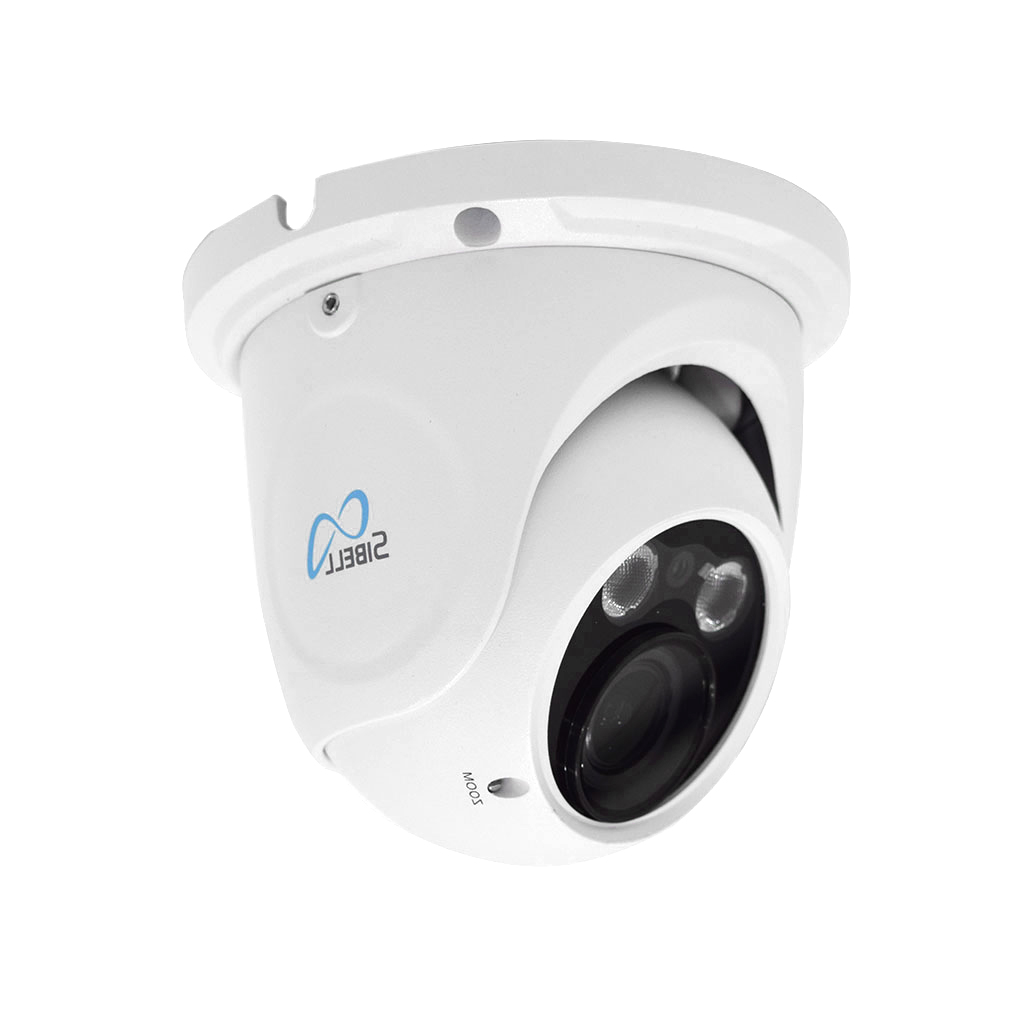

3mp IP Network Eyeball Dome Camera Weatherproof with IR
Sibell IPOD-SB3IREV 3mp IP Network Eyeball Dome Camera for video security provides 3 Mega-Pixel real-time resolutions at 30fps. (2048 x 1536). This 3mp IP Network Eyeball Dome Camera provides a feature set including ICR auto switch, true day/night, 3D DNR, and Digital Wide Dynamic Range. The Lens is a manual varifocal 2.8-12mm adjustable zoom. The Sibell IPOD-SB3IREV eyeball dome camera is IP66 Rated weatherproof for indoor or outdoor use. All Sibell IP cameras have ONVIF allowing for integration with other ONVIF platforms. Sibell IP Cameras work seamlessly with Sibell Recorders.
Key Features:
- 3 Mega Pixel ( 2048 x 1536 )
- Max. Resolution: 2048 x 1536
- ICR auto switch, true day/night
- 65 ~ 98 feet IR night view distance
- 3D DNR, digital WDR
- ROI coding
- Supports PoE power supply
- Supports smart phone, iPad, remote monitoring
- Supports three streams
Description
IPOD-SB3IREV 3mp IP Network Eyeball Dome Camera |
|
| Camera | |
| Image Sensor | 1 / 3 “CMOS |
| Image Size | 2048 x 1536 |
| Electronic Shutter | 1 / 25 s ~ 1 / 100000 s |
| Auto Iris | Fixed Iris |
| Min. Illumination | 0.07 lux @F1.2,AGC ON; 0 lux with IR |
| Lens | 2.8 ~ 12 mm @F1.4, angle of view : 84° ~ 27° |
| Lens Mount | ɸ 14 |
| Day & Night | ICR |
| Wide Dynamic Range | Digital WDR |
| Digital NR | 3D DNR |
| Angle Adjustment | Pan : 0°~360°, Tilt : 0°~90°, Rotation : 0°~360° |
| Image | |
| Video Compression | H.264 / MJPEG Baseline Profile / Main Profile / High Profile |
| Resolution | 3MP ( 2048 × 1536 ), 1080P ( 1920 × 1080 ), 720P ( 1280 × 720 ), D1, CIF, 480 x 240 |
| Main stream | 60Hz : 3MP ( 1 ~ 30fps ) / 1080P ( 1 ~ 30fps ) / 720P ( 1 ~ 30fps )
50Hz : 3MP ( 1 ~ 25fps ) / 1080P ( 1 ~ 25fps ) / 720P ( 1 ~ 25fps ) |
| Bit rate | 128 Kbps ~ 6 Mbps |
| Encode Mode | VBR / CBR |
| Quality | Five levels under VBR; Freely adjustable under CBR |
| Image Settings | ROI, Saturation, Brightness, Chroma, Contrast,
Wide Dynamic, Sharpen, NR,etc. Adjustable through client software or web browser |
| ROI | 3 ROI |
| Interfaces | |
| Network | RJ45 |
| Functions | |
| Remote Monitoring | IE browsing, CMS remote control |
| Online Connection | Support simultaneous monitoring for up to 3 users;
Support multi-stream real time transmission |
| Protocol | TCP / IP, UDP, DHCP, NTP, RTSP, DDNS, SMTP,FTP |
| Interface Protocol | ONVIF |
| Storage | Network remote storage |
| Smart Alarm | Motion Alarm |
| PoE | Yes |
| IR Distance | 65-98ft (20~30m) |
| Water-proof | IP66 |
| Other | |
| Power Supply | DC 12V / PoE |
| Power Consumption | < 2W |
| IR Consumption ON | < 4.5W |
| Operating Environment | – 20 °C ~ 50 °C,10 % ~ 90 % humidity |
| Dimensions | ɸ 4.3in × 5in (ɸ 109mm × 130mm) |
| Weight ( net ) | 688g (1.5lbs) |
| Installation | Wall mounting, pendent mounting |
Accessories

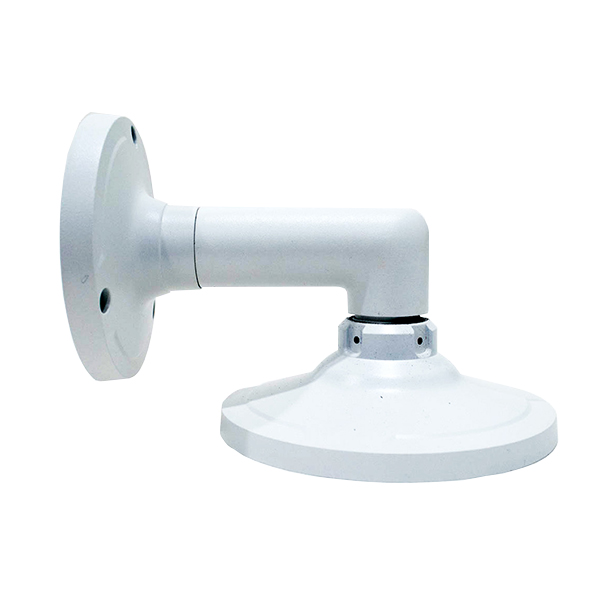

Compatible Camera MountsPart Number: JB-SB-BR
 |
Part Number: WB-SB-ED
 |
Documents
Download “IPOD-SB3IREV-Specsheet”
IPOD-SB3IREV-Specsheet.pdf – Downloaded 406 times – 169.10 KBDownload “IPOD-SB3IREV- Quick Start Guide”
IPOD-SB3IREV-QSG.pdf – Downloaded 398 times – 1.41 MBDownload “IPOD-SB3IREV- Manual”
IPOD-SB3IREV-Manual.pdf – Downloaded 408 times – 1.93 MBYou must be logged in to post a review.
