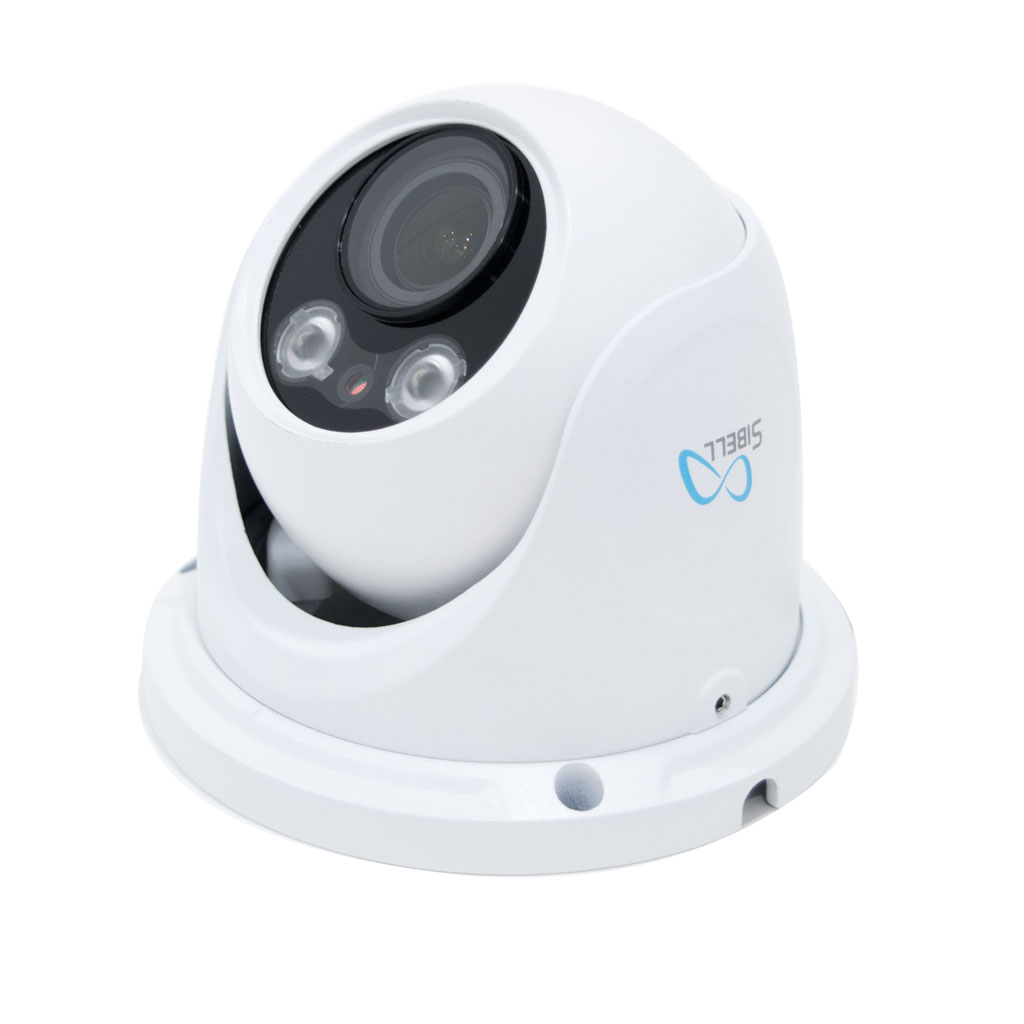

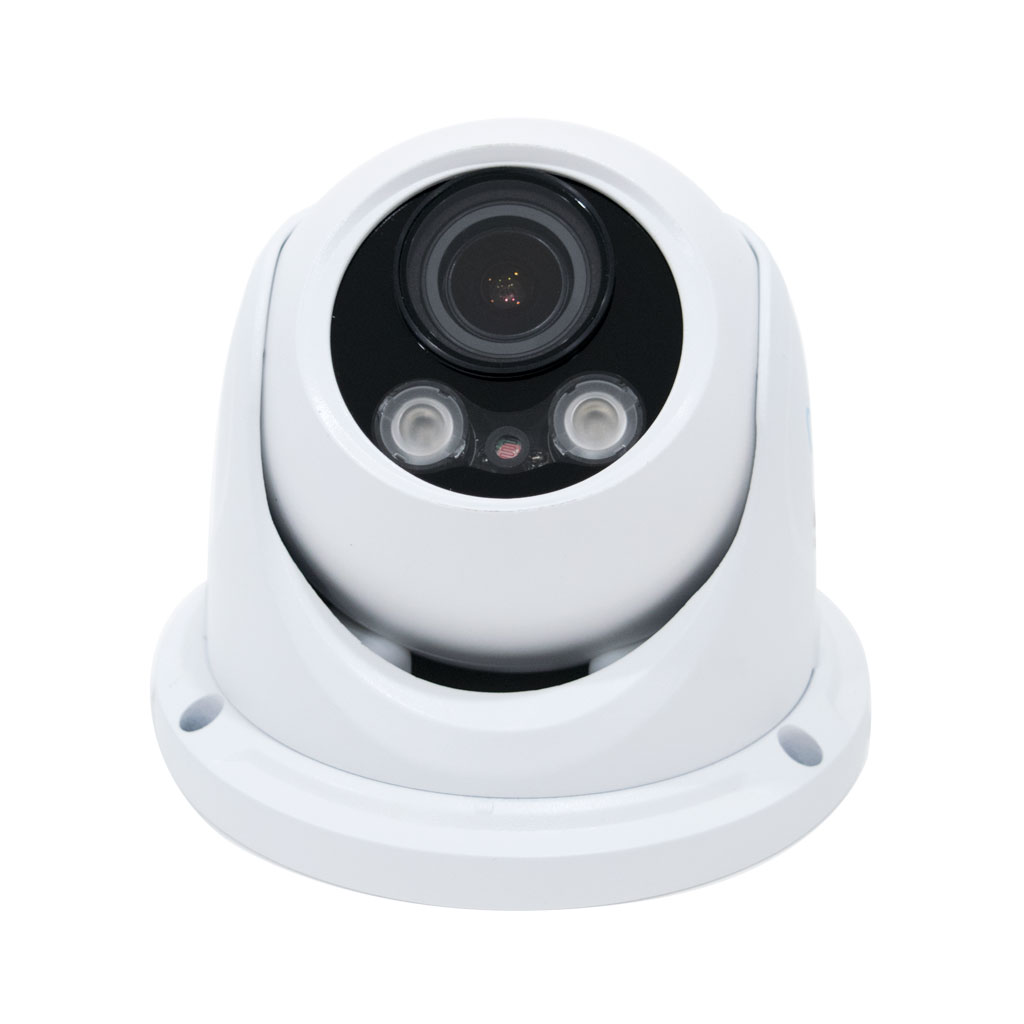

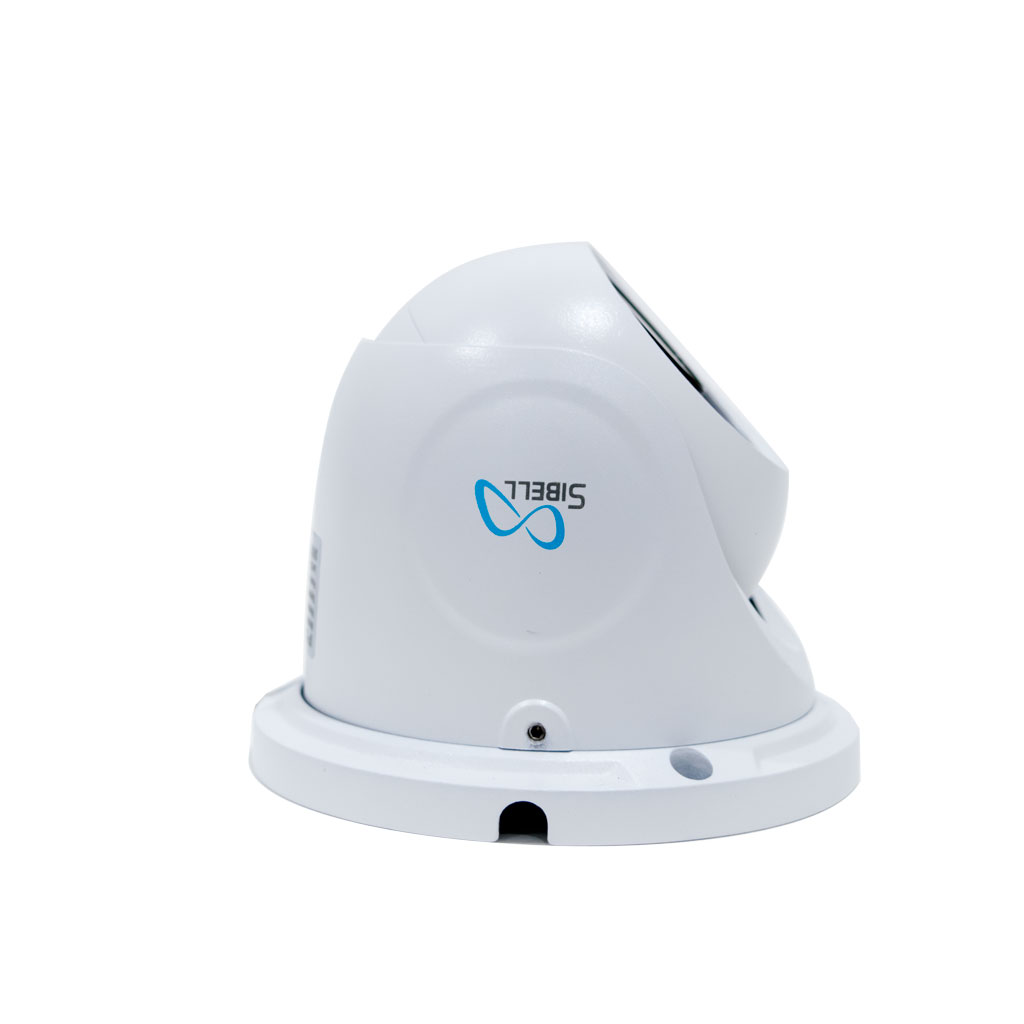

4mp IP Eyeball Dome Weatherproof with IR & Motorized Zoom Lens

Sibell IPOD-SB4IRZA 4mp IP Eyeball Dome Weatherproof with IR & Motorized Zoom Lens, provides exceptionally clear high definition video day or night. This camera model comes with a powerful 3.3-12mm Motorized Zoom Lens that allows for OSD Zoom and focus adjustments, ICR, True day/ night, 3D DNR and True WDR make this camera great for use in the day our night, receive clear video picture in most lighting conditions. Night Vision IRs allow for night views from 65 -95 feet, IPOD-SB4IRZA comes complete with Plug and Play PoE Power supply and will work with ONVIF devices.

Key Features:

  • 4 Mega Pixel ( 2592 x 1520 ) (2560 x 1440)
  • 3.3-12mm Motorized Zoom Lens
  • ICR auto switch, true day / night
  • 65 ~ 95 feet IR night view distance
  • 3D DNR, True WDR
  • ROI coding (Region Of Interest Feature)
  • Supports local CVBS video output and one-way audio
  • Supports PoE power supply
  • Supports smart phone, iPad, remote monitoring
  • Supports three streams

Description

Model#: IPOD-SB4IRZA 4mp IP Eyeball Dome Weatherproof with IR & Motorized Zoom Lens

Camera
Image Sensor 1 / 3 “CMOS
Image Size 2688 x 1520
Electronic Shutter 1 / 25 s ~ 1 / 100000 s
Min. Illumination 0.05 lux @F1.2,AGC ON; 0 lux with IR
Lens 3.3 ~ 12mm Motorized Zoom
Angle Adjustment Any Angle
Video Compression H.265/ H.264 / MJPEG
Resolution 4MP ( 2560 × 1440 ), 3MP (2304 × 1296), 1080p ( 1920 × 1080 ),  720P ( 1280 × 720 ), D1, CIF, 480 × 240
Main stream 60Hz : 4MP( 1 ~ 30fps ) / 3MP( 1 ~ 30fps ) / 1080P( 1 ~ 30fps ) / 720P( 1 ~ 30fps )

50Hz : 4MP( 1 ~ 25fps ) / 3MP( 1 ~ 25fps ) / 1080P( 1 ~ 25fps ) / 720P( 1 ~ 25fps)

Bit rate 64 Kbps ~ 10 Mbps
Encode Mode VBR / CBR
Quality Five levels under VBR; Freely adjustable under CBR
Image Settings ROI, Saturation, Brightness, Chroma, Contrast,

Wide Dynamic, Sharpen, NR,etc.

Adjustable through client software or web browser

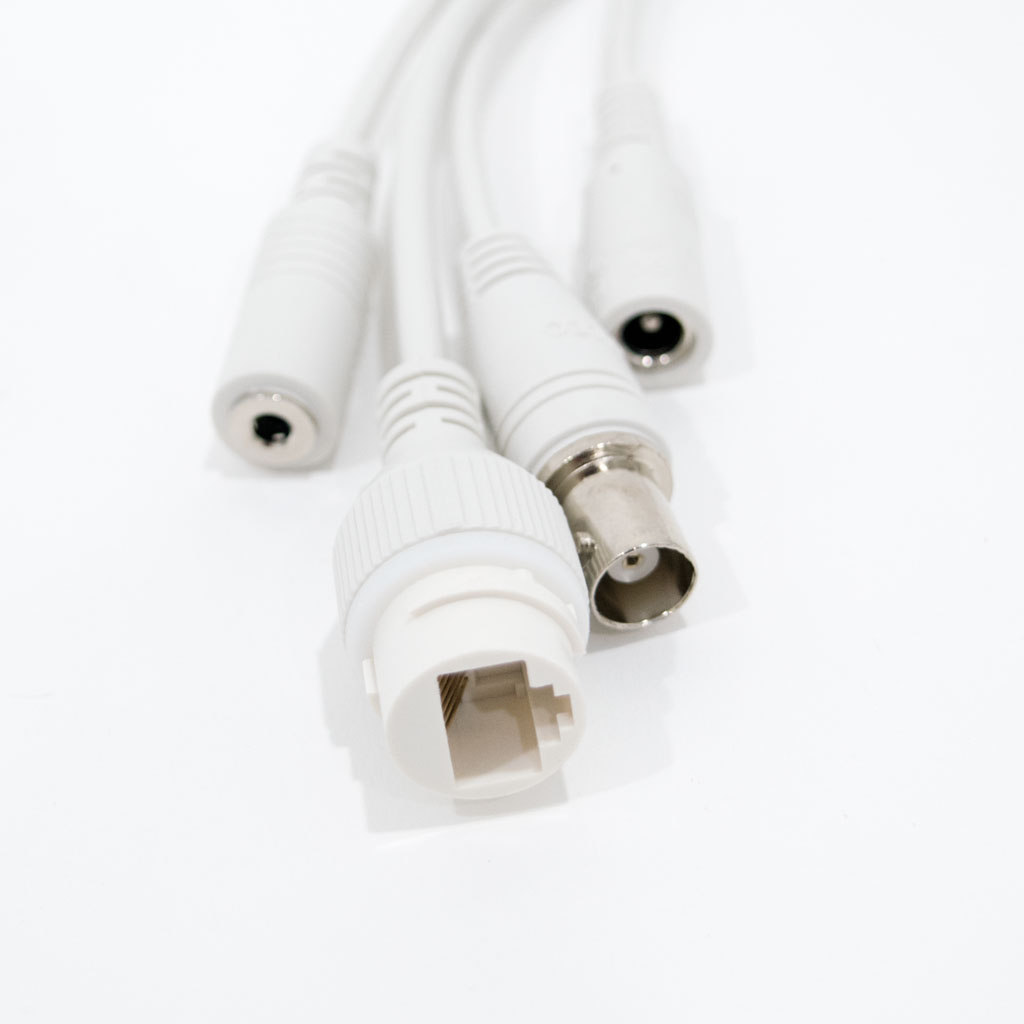

Interfaces
Network RJ45
Audio One-way audio (MIC IN × 1)
Video Output CVBS video output ( BNC × 1 )
Functions
Remote Monitoring IE browsing,CMS remote control
Online Connection Support simultaneous monitoring for up to 10 users;

Support multi-stream real time transmission

Protocol TCP / IP, UDP, DHCP, NTP, R Protocol TSP, PPPoE, DDNS, SMTP, FTP
Storage Network remote storage
Smart Alarm Motion Alarm
Day & Night ICR
PoE Yes
IR Distance 65-95ft (20~30m)
Water-proof IP66
Other
Power Supply DC 12V / PoE
Power Consumption < 2.5W
IR Consumption ON < 5.5W
Operating Environment – 20 °C ~ 50 °C,10 % ~ 90 % humidity
Dimensions ( mm ) ø 109 × 130
Weight ( net ) 689g

Accessories

Compatible Camera Mounts
Part Number: JB-SB-BR JB-SB-BR Sibell Mounting bracket round Part Number: WB-SB-ED Sibell Mount wm-sb-ed

Documents

Download “IPOD-SB4IRZA Specsheet” IPOD-SB4IRZA-Specsheet.pdf – Downloaded 339 times – 472 KB

Download “IPOD-SB4IRZA Quick Start Guides” IPOD-SB4IRZA-QSG.pdf – Downloaded 307 times – 1 MB

Download “Sibell 4MP User Manual for Varifocal Lens Bullet and Dome” Sibell-4MP-user-munual-for-varifocal-lens-bullet-and-dome.pdf – Downloaded 417 times – 2 MB
