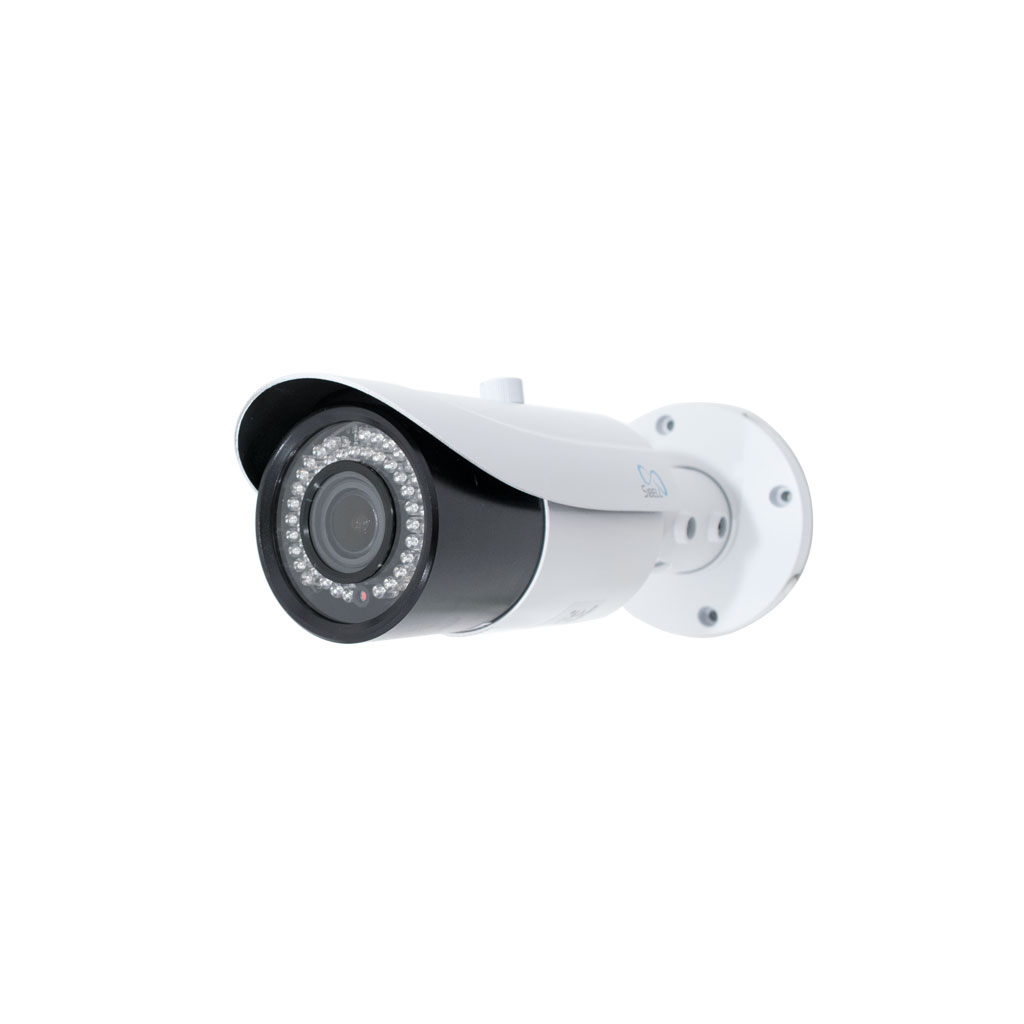

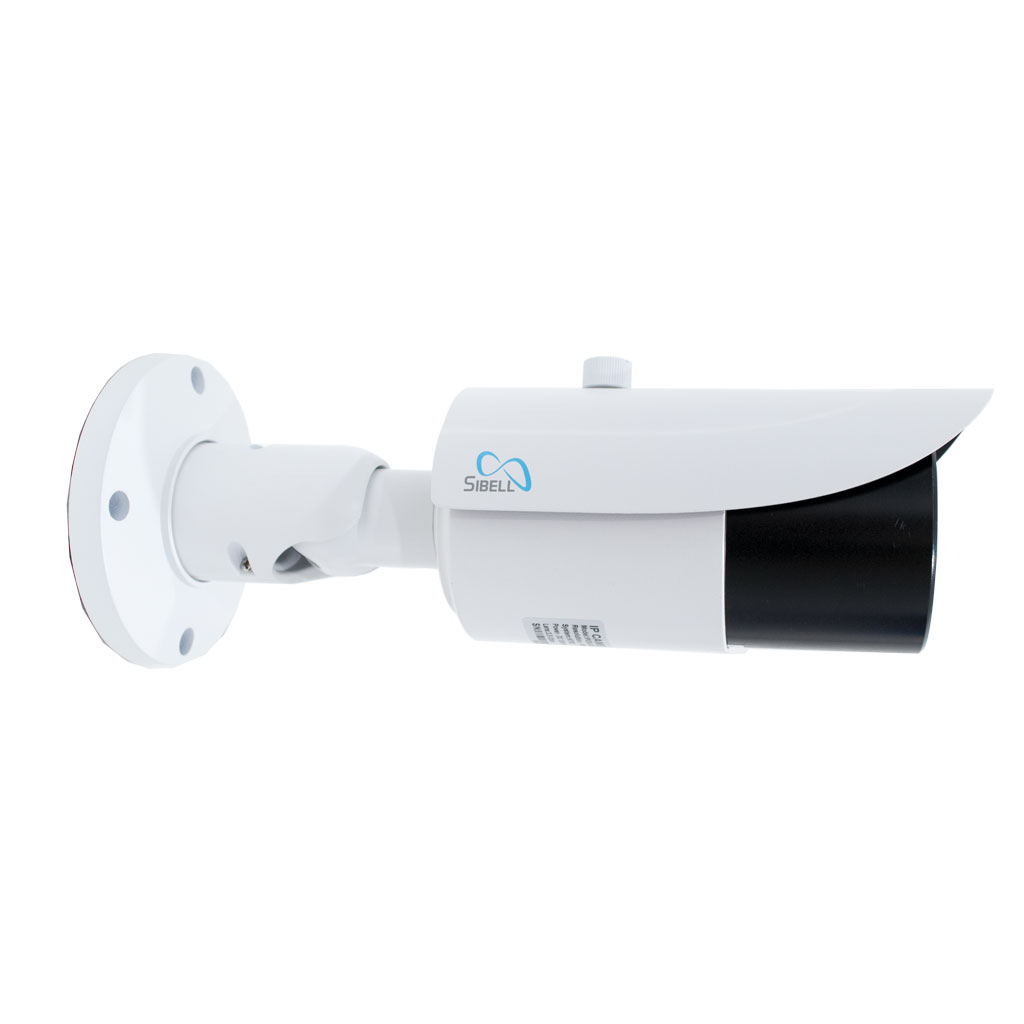

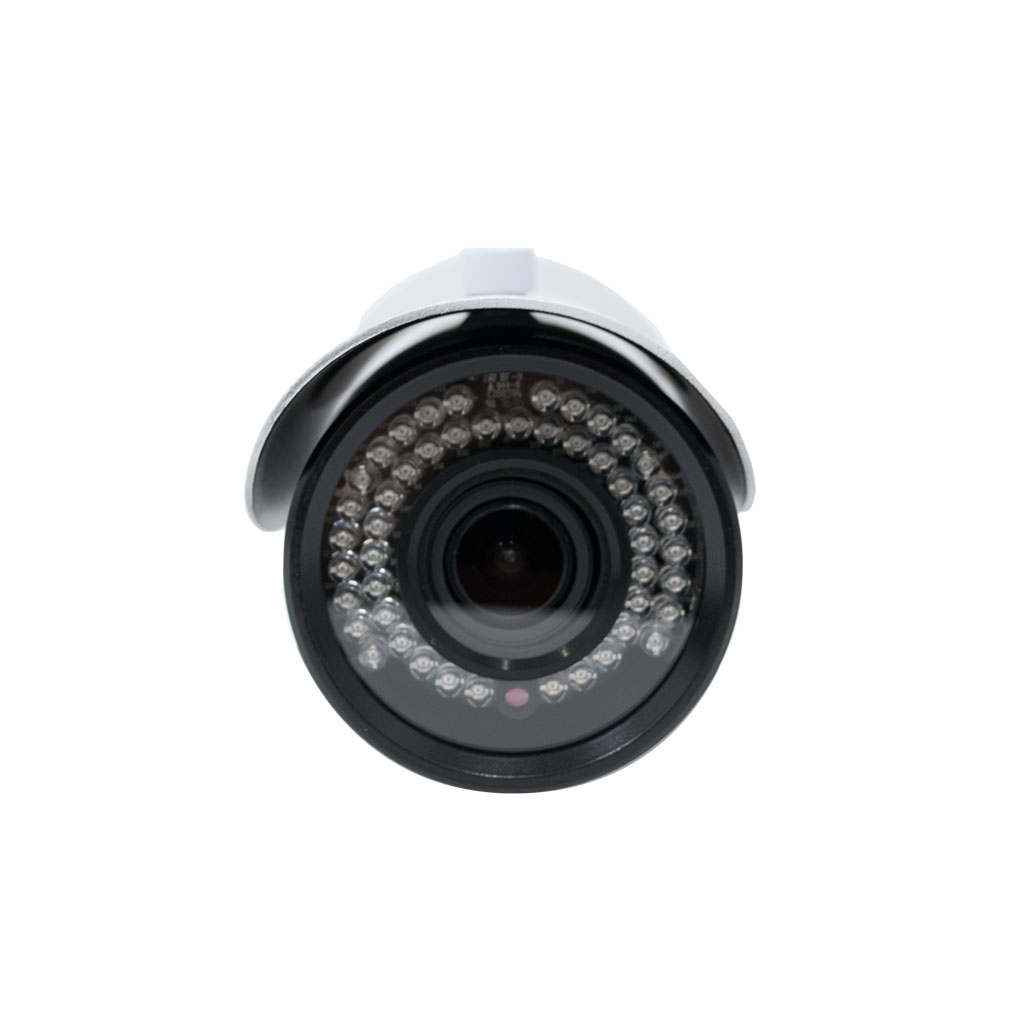

4mp IP Bullet Camera Motorized Zoom Weatherproof with IR

Sibell IPOB-SB4IRZA 4mp IP Bullet Camera Motorized Zoom for video security provides 4 Mega Pixel resolutions at 30fps, 3D DNR Wide Dynamic Range (True WDR) and IR Cut Filter (ICR) True Day/Night to deliver quality video imagery in any type of lighting environment. This camera’s powerful 3.3 – 12mm Motorized Zoom lens is perfect for adjusting the view, zoom and focus from the on screen display. Sibell 4 megapixel cameras provide exceptional video quality, Night Vision IR distance up to 98 – 160 Feet. Easy Plug and play PoE Power supply and IP66 Rated weather resistant. All Sibell IP cameras integrate with ONVIF devices.
Key Features:

  • 4 Mega Pixel ( 2592 x 1520 ) (2560 x 1440)
  • H.265 video encoding (optional)
  • 3.3~12mm Motorized Zoom
  • ICR auto switch, true day / night
  • 98 ~ 160 feet IR night view distance
  • 3D DNR, True WDR
  • ROI coding (Region Of Intrest Feature)
  • Supports local CVBS video output and Two-way audio
  • Supports PoE power supply
  • Supports smart phone, iPad, remote monitoring
  • Supports three streams

Product Description

Model#: IPOB-SB4IRZA 4mp IP Bullet Camera Motorized Zoom Weatherproof

Camera
Image Sensor1/ 3 “CMOS
Image Size2688 x 1520
Electronic Shutter1 / 25 s ~ 1 / 100000 s
Min. Illumination0.05 lux @F1.2,AGC ON; 0 lux with IR
Lens3.3~12mm
Angle AdjustmentAny Angle
Video CompressionH.265/ H.264 / MJPEG
Resolution4MP ( 2560×1440 ), 3MP ( 2304×1296 ),1080P ( 1920×1080 ), 720P ( 1280×720 ), D1, CIF, 480×240
Main stream60Hz :  ( 1 ~ 30fps ) /  1080P( 1 ~ 30fps ) / 720P( 1 ~ 30fps ) 4MP 4MP 3MP( 1 ~ 30fps ) /

50Hz :  ( 1 ~ 25fps ) / 3MP( 1 ~ 25fps ) / 1080P( 1 ~ 25fps ) / 720P( 1 ~ 25fps )

Bit rate64 Kbps ~ 10 Mbps
Encode ModeVBR / CBR
QualityFive levels under VBR; Freely adjustable under CBR
Image SettingsROI, Saturation, Brightness, Chroma, Contrast,

Wide Dynamic, Sharpen, NR,etc.

Adjustable through client software or web browser

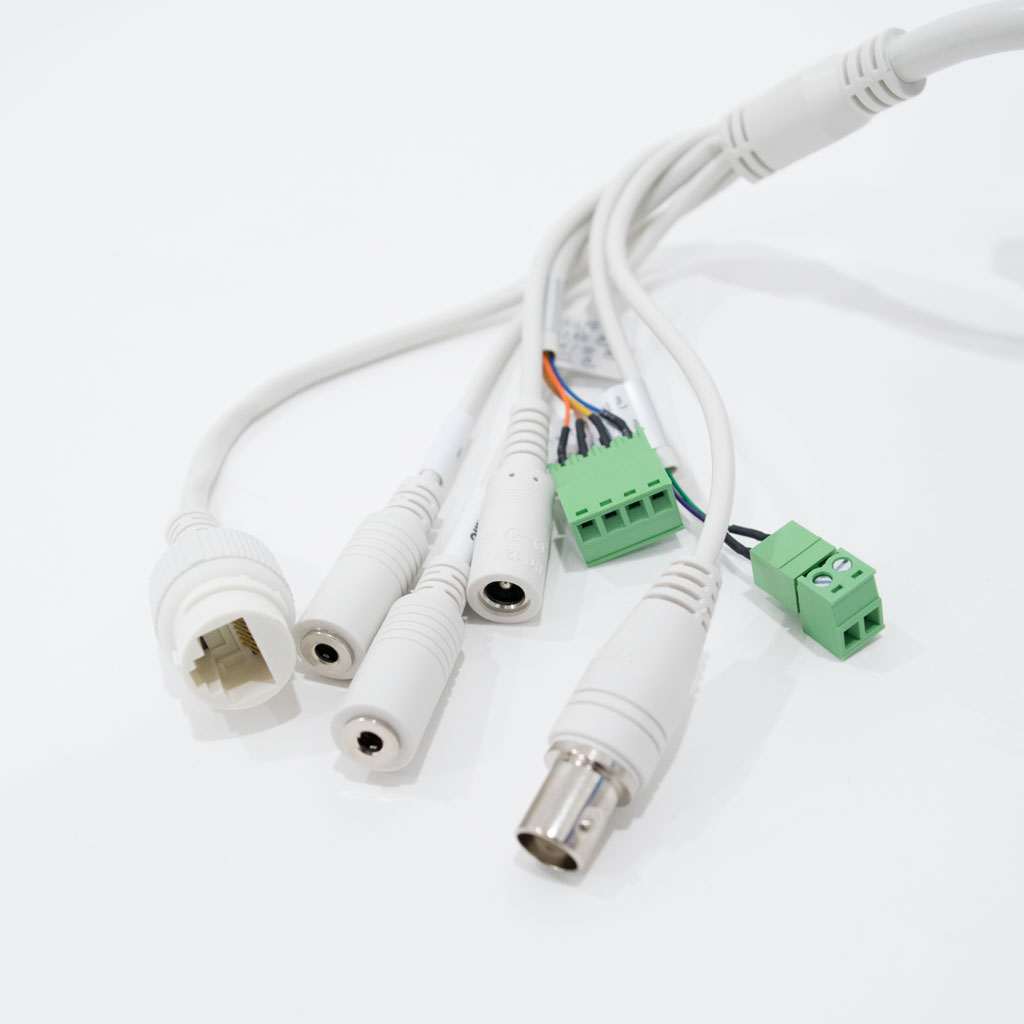

Interfaces
NetworkRJ45
AudioTwo-way audio (MIC IN × 1, MIC OUT x 1)
Video OutputCVBS video output ( BNC × 1 )
Storage CardSupport TF card, up to 128GB
RS485Yes
AlarmInput: 1ch Output: 1ch
Functions
Remote MonitoringIE browsing,CMS remote control
Online ConnectionSupport simultaneous monitoring for up to 10 users;

Support multi-stream real time transmission

ProtocolTCP / IP, UDP, DHCP, NTP, R Protocol TSP, PPPoE, DDNS, SMTP, FTP
StorageTF card local storage, Network remote storage
Smart AlarmMotion Alarm, sensor alarm
Day & NightICR
PoEYes
IR Distance98-160ft (30 ~ 50m)
Water-proofIP66
Other
Power SupplyDC 12V / PoE
Power Consumption< 2.5W
IR Consumption ON< 6.5W
Operating Environment– 20 °C ~ 50 °C,10 % ~ 90 % humidity
Dimensions ( mm )ø 109 × 284
Weight ( net )1115g

Documents

Download “IPOB-SB4IRZA Specsheet” IPOB-SB4IRZA-Specsheet.pdf – Downloaded 231 times – 373 KB

Download “IPOB-SB4IRZA Quick Start Guide” IPOB-SB4IRZA-QSG.pdf – Downloaded 245 times – 1 MB

Download “Sibell 4MP User Manual for Varifocal Lens Bullet and Dome” Sibell-4MP-user-munual-for-varifocal-lens-bullet-and-dome.pdf – Downloaded 286 times – 2 MB

Accessories

Compatible Camera Mounts
Part Number: JB-SB-BR JB-SB-BR Sibell Mounting bracket roundPart Number: JB-SB-UNIRSibell Mount JB-SB-UNIR
