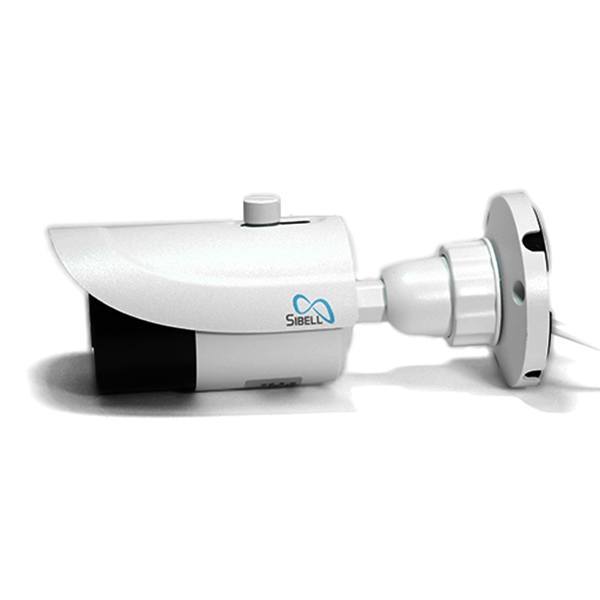

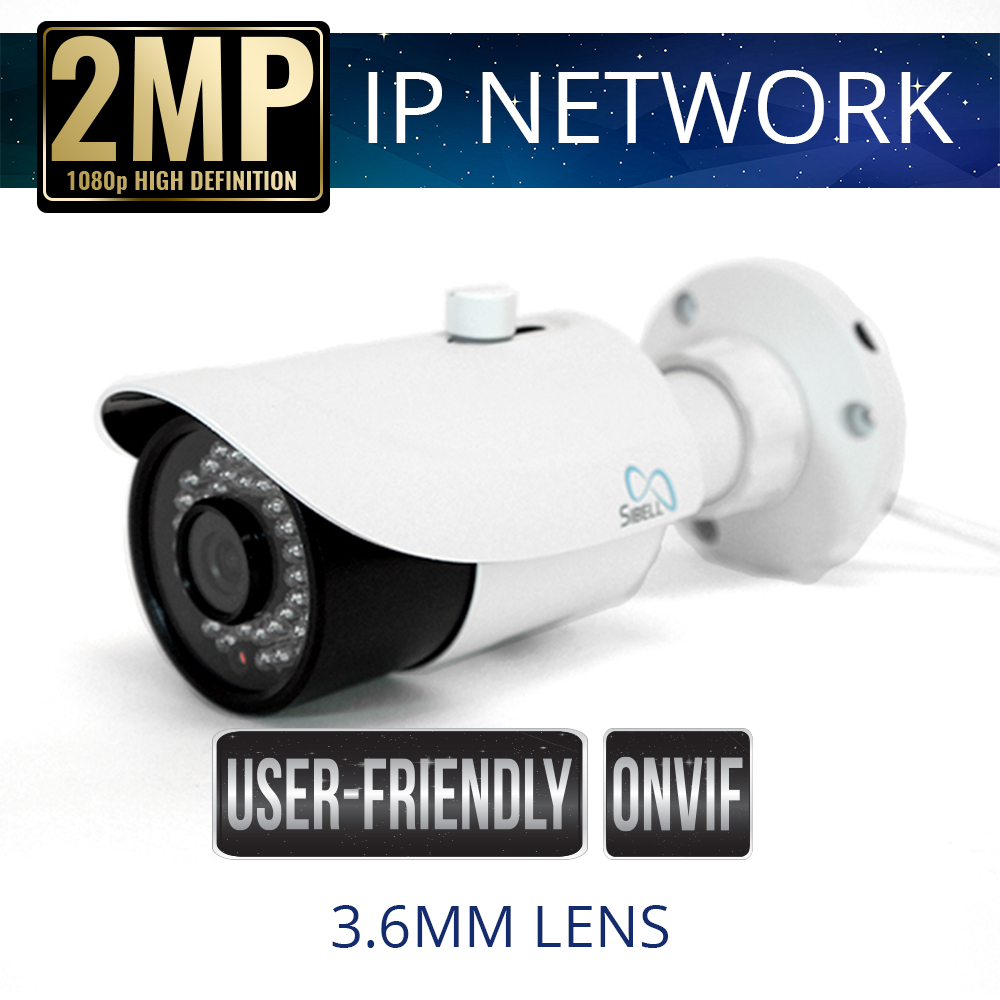

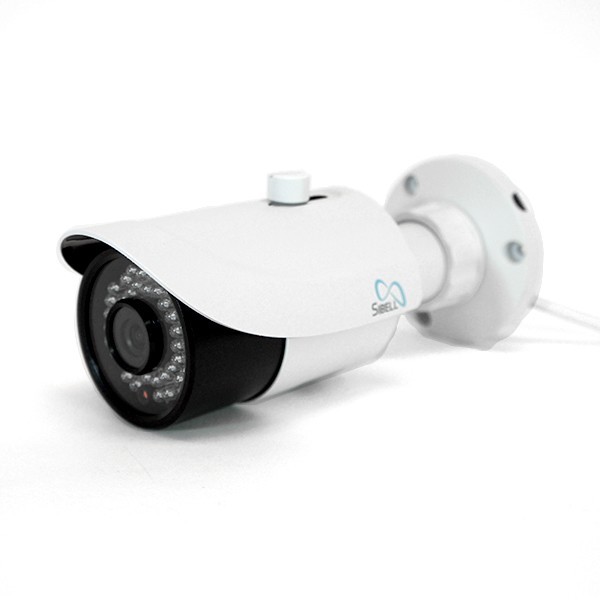

2mp IP Network Bullet Camera Weatherproof with IR

Sibell IPOB-SB2IR IP Network Bullet Camera for video security provides 2 Mega Pixel real-time 108op resolutions at 30fps. 3D DNR Wide Dynamic Range (digital WDR) and  IR Cut Filter (ICR) True Day/Night to deliver quality imagery in any type of lighting environment. Night Vision IR distance up to 65 – 95 Feet. POE Power supply  and IP66 Rated. All Sibell IP cameras have ONVIF allowing for integration with other ONVIF platforms.

Key Features:

  • 2 Mega Pixel 1080P ( 1920 x 1080 )
  • Max. Resolution: 1920 x 1080
  • ICR auto switch, true day / night
  • 65 ~ 95 feet IR night view distance
  • 3D DNR, digital WDR
  • ROI coding
  • Supports local CVBS video output and one-way audio
  • Supports PoE power supply
  • Supports smart phone, iPad, remote monitoring
  • Supports three streams

Product Description

Model#: IPOB-SB2IR 2MP IP Network Bullet Camera

Camera
Image Sensor1 / 2.7 “CMOS
Image Size1920 x 1080
Electronic Shutter1 / 25 s ~ 1 / 100000 s
Min. Illumination0.05 lux @F1.2,AGC ON; 0 lux with IR
Lens3.6mm
Lens MountM12
Angle AdjustmentAny Angle
Video CompressionH.264 / MJPEG
Resolution1080P ( 1920×1080 ),720P ( 1280×720) D1,CIF(480×240)
Main stream60Hz : 1080P( 1 ~ 30fps ) / 720P( 1 ~ 30fps )

50Hz : 1080P( 1 ~ 25fps ) / 720P( 1 ~ 25fps )

Bit rate64 Kbps ~ 8 Mbps
Encode ModeVBR / CBR
QualityFive levels under VBR; Freely adjustable under CBR
Image SettingsROI, Saturation, Brightness, Chroma, Contrast,

Wide Dynamic, Sharpen, NR,etc.

Adjustable through client software or web browser

Interfaces
NetworkRJ45
AudioOne-way audio (MIC IN × 1)
Video OutputCVBS video output ( BNC × 1 )
Functions
Remote MonitoringIE browsing,CMS remote control
Online ConnectionSupport simultaneous monitoring for up to 4 users;

Support multi-stream real time transmission

ProtocolTCP / IP, UDP, DHCP, NTP, R Protocol TSP, PPPoE, DDNS, SMTP, FTP
StorageNetwork remote storage
Smart AlarmMotion Alarm
Day & NightICR
PoEYes
IR Distance65-95ft (20~30m)
Water-proofIP66
Other
Power SupplyDC 12V / PoE
Power Consumption< 3.5W
IR Consumption ON< 6W
Operating Environment– 20 °C ~ 50 °C,10 % ~ 90 % humidity
Dimensions ( mm )ø 87 × 219
Weight ( net )608g
InstallationWall mounting, pendent mounting

Documents

Download “IPOB-SB2IR Spec Sheet” IPOB-SB2IR-SPECSHEET.pdf – Downloaded 217 times – 356 KB

Download “IPOB-SB2IR Quick Start Guide” IPOB-SB2IR-QSG.pdf – Downloaded 238 times – 2 MB

Download “Sibell 2MP IP Camera Manual” Sibell-2MP-usermanual.pdf – Downloaded 262 times – 2 MB

Accessories

Compatible Camera Mounts Part Number: JB-SB-BR mount
