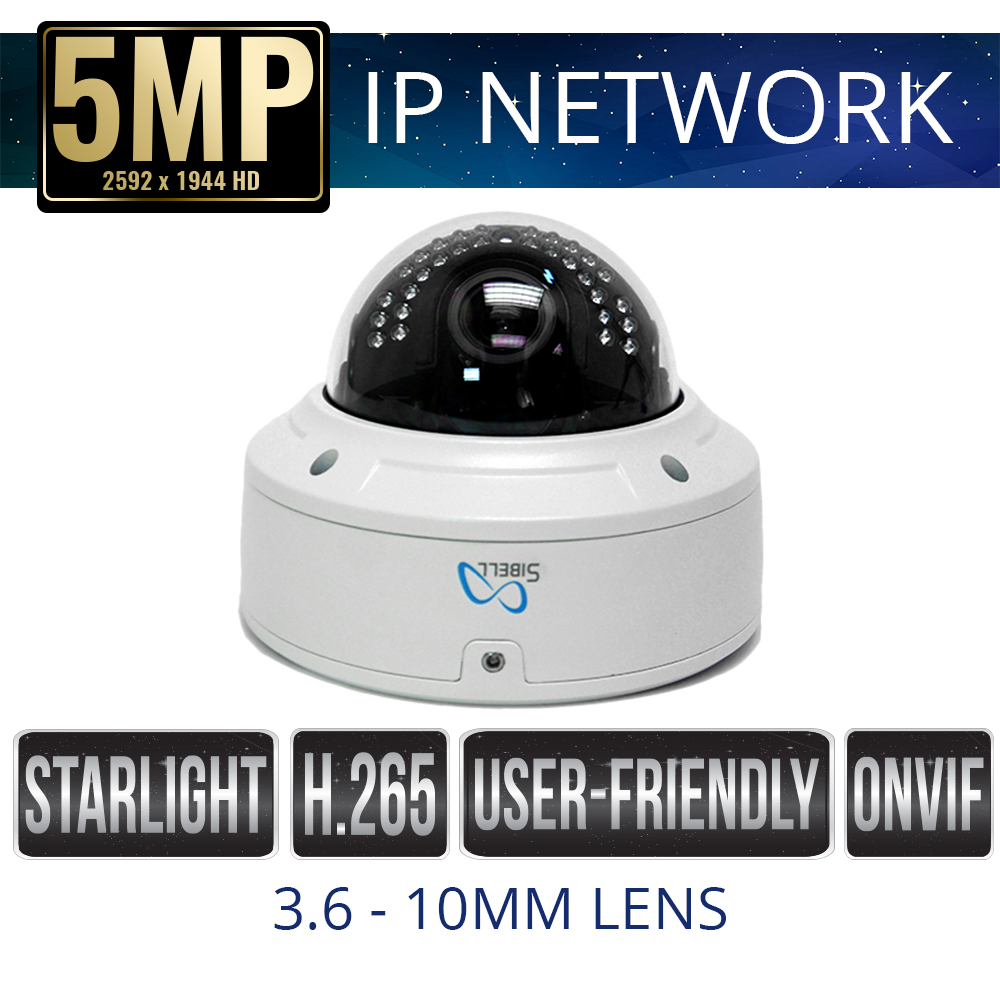

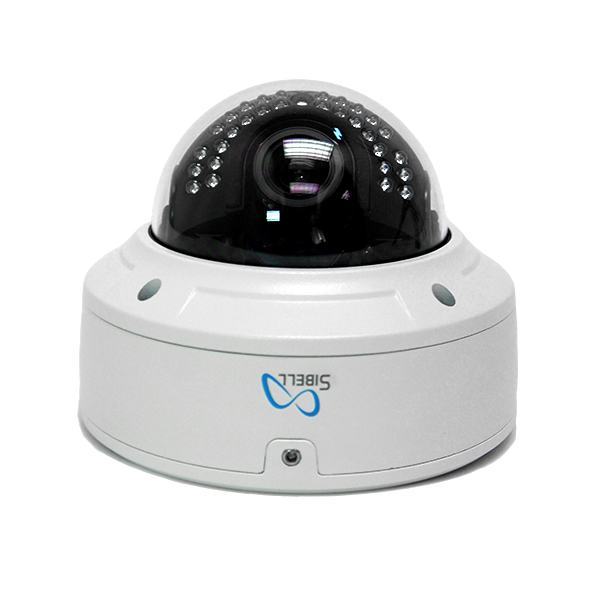

5mp IP Network Vandal-proof Dome Weatherproof with IR

IPVD-SB5IRVA 5mp IP Network Vandal-proof Dome Camera for HD video security provides 5 Mega Pixel resolutions at 30fps. This powerful Sibell vandal dome comes with a 3.6 – 10mm vari-focal manual lens to zoom in and capture intimate details. The feature set contains 3D DNR, Wide Dynamic Range (digital WDR) and IR Cut Filter (ICR) True Day/Night to deliver quality imagery in any type of lighting environment. This Model contains a special Starlight feature for Night Vision IR distance up to 65 – 98 Feet. Easy connect PoE Power supply and IP66 Rated weatherproof. All Sibell IP Network cameras have ONVIF allowing for integration with other ONVIF platforms.

Key Features:

  • HD 5 Mega Pixel ( 2592 x 1944 )
  • H.265 video encoding (optional)
  • 3.6~10mm Lens Manual Vari-focal
  • IP66 & IK10 ingress protection
  • ICR auto switch, true day / night
  • 65 ~ 98 feet IR night view distance (Starlight Camera)
  • 3D DNR, Digital WDR
  • Supports 8 ROI codings (Region of Intrest feature)
  • Supports local CVBS video output and Two-way audio
  • Supports PoE power supply
  • Supports smart phone, iPad, remote monitoring
  • One gigabit Ethernet network port, 10m / 100m / 1000m

Product Description

Model#: IPVD-SB5IRVA 5mp IP Network Vandal-proof Dome

Camera
Image Sensor1/ 1.8 “CMOS
Image Size2592 x 1944
Electronic Shutter1 / 25 s ~ 1 / 100000 s
Min. Illumination0.01 lux @F1.2,AGC ON; 0 lux with IR
Lens3.6~10mm
Day & NightICR
Wide Dynamic RangeDigital WDR
Digital NR2D / 3D DNR
Angle AdjustmentPan : 0°~360°, Tilt : 0°~77°, Rotation : 0°~360°
Video CompressionH.265/  MJPEG
Resolution5MP ( 2592 × 1944), 4MP ( 2560×1440 ), 3MP ( 2304×1296 ),1080P ( 1920×1080 ), 720P ( 1280×720 ), D1, CIF, 480×240
Multi-stream5MP(1~30fps) / 2560 × 1440 (1~30fps) 1080P (1~30fps) / 720P(1~30fps)
D1(1~60fps) / CIF(1~30fps)
D1(1~30fps) / CIF(1~30fps)/ 480 × 240(1~30fps)
Bit rate16 Kbps ~ 40 Mbps
Encode ModeVBR / CBR
QualityFive levels under VBR; Freely adjustable under CBR
Image SettingsROI, Saturation, Brightness, Chroma, Contrast,

Wide Dynamic, Sharpen, NR,etc.

Adjustable through client software or web browser

Audio Compression G.711A / U
ROISupport independent ROI configuration of each stream
Interfaces
NetworkGigabit Ethernet network port ( RJ45 x 1 ), 10M / 100M / 1000M self-adaptive
AudioTwo-way audio (MIC IN × 1, MIC OUT x 1)
Video OutputCVBS video output ( BNC × 1 )
Storage CardSupport SD card, up to 64GB
RS485Yes
AlarmInput: 1ch Output: 1ch
Functions
Remote MonitoringIE browsing,CMS remote control
Online ConnectionSupport simultaneous monitoring for up to 10 users;

Support multi-stream real time transmission

ProtocolTCP / IP, UDP, DHCP, NTP, R Protocol TSP, PPPoE, DDNS, SMTP, FTP
Interface ProtocolONVIF, GB-T / 28181-2011
StorageSD card local storage, network remote storage
Smart AlarmMotion Alarm, Sensor Alarm
PTZRS485 x 1
PoEYes
IR Distance65-95ft (20~30m)
Water-proofIP66
Other
Power SupplyDC 12V / PoE
Power Consumption< 3W
IR Consumption ON< 5.5W
Operating Environment– 20 °C ~ 50 °C,10 % ~ 90 % humidity
Dimensions ( mm )ø 150 × 114
Weight ( net )1025g

Documents

Download “IPVD-SB5IRVA Specsheet” IPVD-SB5IRVA-Specsheet.pdf – Downloaded 223 times – 370 KB

Download “IPVD-SB4IRVA Quick Start Guide” IPVD-SB4IRVA-QSG.pdf – Downloaded 222 times – 3 MB

Download “Sibell 5MP user Manual” Sibell-5MP-user-manual.pdf – Downloaded 229 times – 3 MB

Accessories

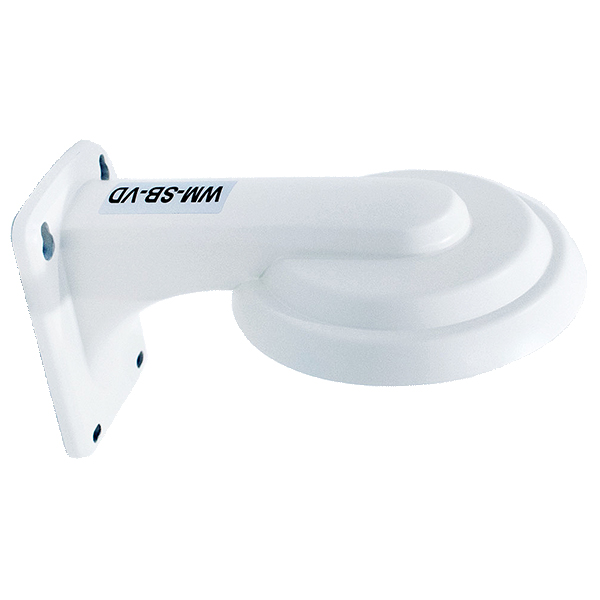

Compatible Camera Mounts Part Number: WM-SB-VDSibell Mount wm-sb-vd
