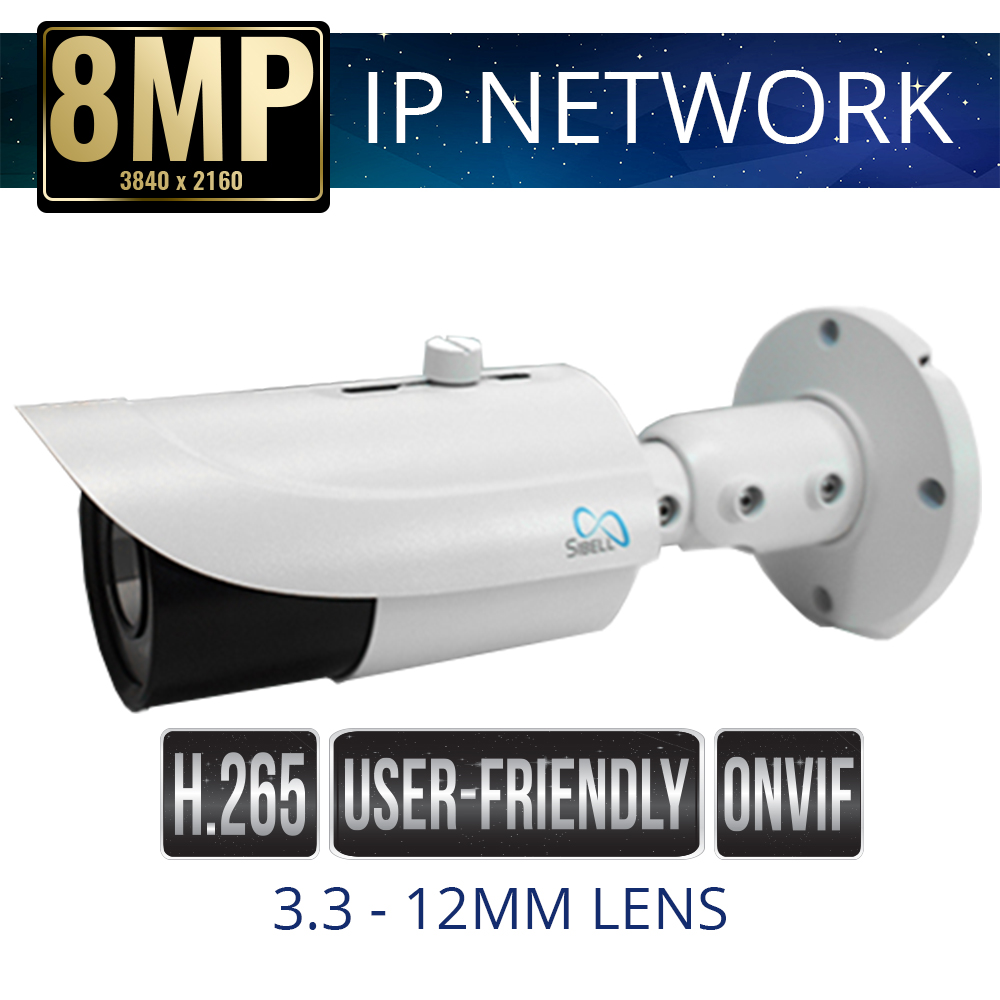

8mp IP Bullet Camera Motorized Zoom Weatherproof
Sibell IPOB-SB8IRZ 8mp IP Bullet Camera Motorized Zoom for video security provides 8 Mega Pixel 4k Ultra HD resolutions at 30fps, 3D DNR Wide Dynamic Range (True WDR) and IR Cut Filter (ICR) True Day/Night to deliver quality video imagery in any type of lighting environment. This camera’s powerful 3.3 – 12mm Motorized Zoom lens is perfect for adjusting the view, zoom and focus from the on screen display. Sibell 8 megapixel cameras provide exceptional video quality, Night Vision IR distance up to 95 – 160 Feet. Easy Plug and play PoE Power supply and IP66 Rated weather resistant. All Sibell IP cameras integrate with ONVIF devices.
Key Features:
- 8 Mega Pixel ( 3840 x 2160 )
- H.265 video encoding
- 3.3~12mm Motorized Zoom
- ICR auto switch, true day / night
- 95 ~ 160 feet IR night view distance
- 3D DNR, True WDR
- ROI coding (Region Of Intrest Feature)
- Supports local CVBS video output and Two-way audio
- Supports PoE power supply
- Supports smart phone, iPad, remote monitoring
- Supports three streams
Description
| Model#: IPOB-SB8IRZ 8mp IP Bullet Camera Motorized Zoom Weatherproof | |
| Camera | |
| Image Sensor | 1 / 2.5 “CMOS |
| Image Size | 3840 × 2160 |
| Electronic Shutter | 1 / 25 s ~ 1 / 100000 s |
| Iris Type | Fixed Iris |
| Min. Illumination | 0.01 lux @F1.2, AGC ON; 0 lux with IR |
| Lens | 3.3 ~ 12 mm @F1.4, horizontal field of view : 97.5° ~ 38.5° |
| Lens Mount | ɸ14 |
| Day & Night | ICR |
| Wide Dynamic Range | Digital WDR |
| BLC | Yes |
| HLC | Yes |
| Defogging | Yes |
| Digital NR | 2D / 3D DNR |
| Angle Adjustment | Pan : Any Angle |
| Image | |
| Video Compression | H.265 MP; H.264 BP / MP / HP; MJPEG |
| Resolution | 8MP ( 3840×2160 ), 1080P ( 1920×1080 ), 720P ( 1280×720 ),
D1, CIF, 480×240 |
| Main Stream | 60Hz : 8MP ( 1 ~ 30fps ) / 1080P ( 1 ~ 30fps ) / 720P ( 1 ~ 30fps )
50Hz : 8MP ( 1 ~ 25fps ) / 1080P ( 1 ~ 25fps ) / 720P ( 1 ~ 25fps ) |
| Bit rate | 64 Kbps ~ 16 Mbps |
| Encode Mode | VBR / CBR |
| Quality | Five levels under VBR; Freely adjustable under CBR |
| Image Settings | ROI, Saturation, Brightness, Chroma, Contrast, Wide Dynamic, Sharpen, NR,etc. Adjustable through client software or web browser |
| Audio Compression | G.711A / U |
| ROI | Each ROI to be configured separately |
| Interfaces | |
| Network | RJ45 × 1, 10M / 100M self-adaption |
| Audio | MIC IN × 1, MIC OUT × 1 |
| Video Output | CVBS video output ( BNC × 1) |
| Storage Card | Support TF card, up to 128GB |
| RS485 | Yes |
| Alarm | Input: 1ch Output: 1ch |
| Functions | |
| Remote Monitoring | IE browsing,CMS remote control |
| Online Connection | Support simultaneous monitoring for up to 10 users;
Support multi-stream real time transmission |
| Protocol | TCP / IP, UDP, DHCP, NTP, R Protocol TSP, PPPoE, DDNS, SMTP, FTP |
| Interface Protocol | ONVIF, GB-T / 28181-2011 |
| Storage | TF card local storage, network remote storage |
| Smart Alarm | Motion Alarm, Sensor Alarn |
| Smart Analysis | Object removal detection, line crossing detection and
intrusion detection, etc. |
| PTZ | RS485 x 1 |
| PoE | Yes |
| IR Distance | 95 ~ 160ft (30-50m) |
| Water-proof | IP66 |
| Other | |
| Power Supply | DC 12V / PoE |
| Power Consumption | < 4.5W |
| IR Consumption ON | < 8W |
| Operating Environment | – 20 °C ~ 50 °C,10 % ~ 90 % humidity |
| Dimensions ( mm ) | ø 109 × 284 |
| Weight ( net ) | 1112g |
Accessories
Compatible Camera MountsPart Number: JB-SB-BR
 |
Part Number: JB-SB-UNIR
 |
Documents
Download “IPOB-SB8IRZ-Specsheet”
IPOB-SB8IRZ-Specsheet.pdf – Downloaded 374 times – 307.13 KBYou must be logged in to post a review.
