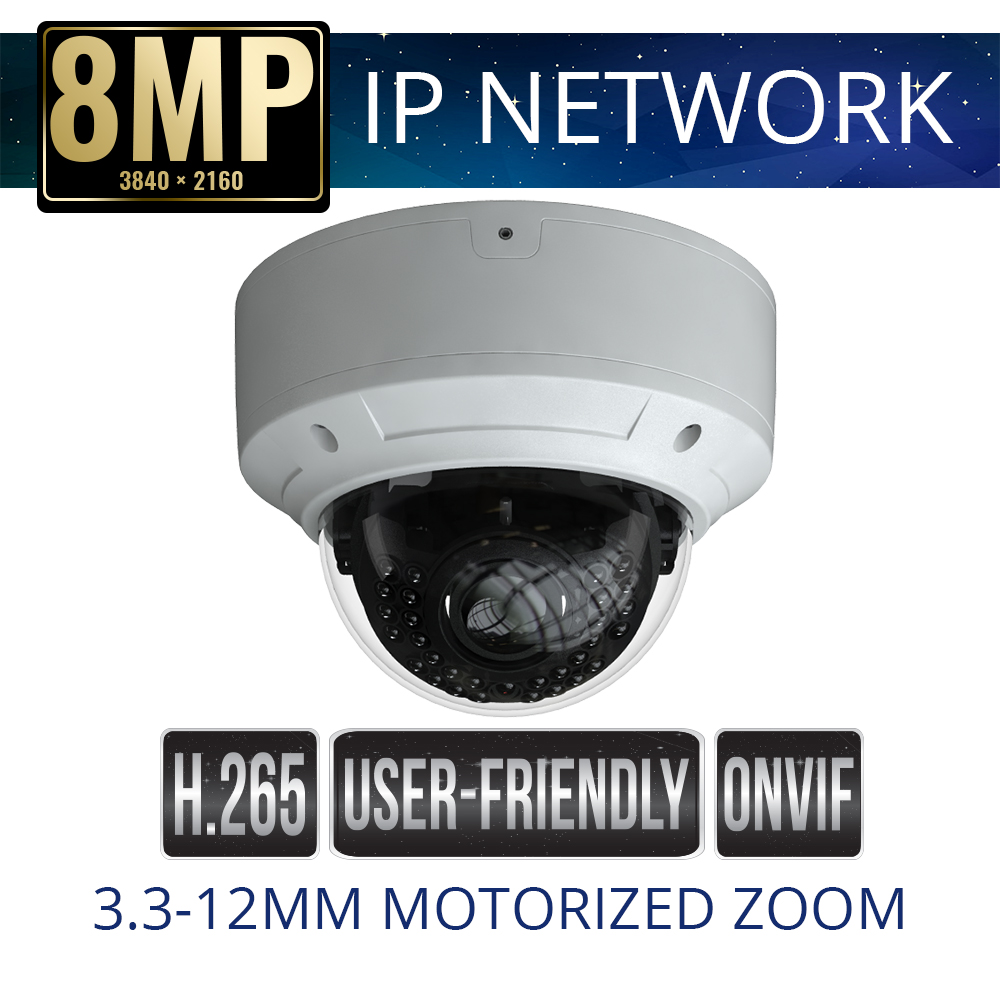

8mp IP Vandal Dome Camera Motorized Zoom Weatherproof

Sibell IPVD-SB8IRZ 8mp IP Vandal Camera Motorized Zoom for video security provides 8 Mega Pixel  4k Ultra HD resolutions at 30fps, 3D DNR Wide Dynamic Range (True WDR) and IR Cut Filter (ICR) True Day/Night to deliver quality video imagery in any type of lighting environment. This camera’s powerful 3.3 – 12mm Motorized Zoom lens is perfect for adjusting the view, zoom and focus from the on screen display. Sibell 8 megapixel cameras provide exceptional video quality, Night Vision IR distance up to 65 – 98 Feet. Easy Plug and play PoE Power supply and IP66 Rated weather resistant. All Sibell IP cameras integrate with ONVIF devices.
Key Features:

  • 8 Mega Pixel ( 3840 x 2160 )
  • H.265 video encoding
  •  3.3~12mm Motorized Zoom
  • IP66 & IK10 ingress protection
  • ICR auto switch, true day / night
  • 65 ~ 98 feet IR night view distance
  • 3D DNR, digital WDR
  • ROI coding
  • Supports local CVBS video output and Two-way audio
  • Supports PoE power supply
  • Supports smart phone, iPad, remote monitoring

Description

Model#: IPVD-SB8IRZ 4K vandal Dome

Camera
Image Sensor 1 / 2.5 “CMOS
Image Size 3840 × 2160
Electronic Shutter 1 / 25 s ~ 1 / 100000 s
Min. Illumination 0.01 lux @F1.2, AGC ON; 0 lux with IR
Lens 3.3 ~ 12 mm @F1.4, horizontal field of view : 97.5° ~ 38.5°
Lens Mount ɸ 14
Day & Night ICR
Wide Dynamic Range Digital WDR
BLC Yes
HLC Yes
Defogging Yes
Digital NR 2D / 3D DNR
Angle Adjustment Pan : 0°~360°, Tilt : 0°~77°, Rotation : 0°~360°
Video Compression H.265 MP; H.264 BP / MP / HP; MJPEG
Resolution 8MP ( 3840×2160 ), 1080P ( 1920×1080 ),

D1, CIF, 480×240

Main stream 60Hz : 8MP ( 1 ~ 30fps )  1080P ( 1 ~ 30fps ) / 720P ( 1 ~ 30fps )

50Hz : 8MP ( 1 ~ 25fps ) / 1080P ( 1 ~ 25fps ) / 720P ( 1 ~ 25fps )

Bit rate 64 Kbps ~ 16 Mbps
Encode Mode VBR / CBR
Quality Five levels under VBR; Freely adjustable under CBR
Image Settings ROI, Saturation, Brightness, Chroma, Contrast, Wide Dynamic,

Sharpen, NR,etc. adjustable through client software or web browser

Audio Compression G711A / U
ROI Each ROI to be configured separately
Interfaces
Network RJ45 × 1, 10M / 100M self-adaption
Audio Two-way audio (MIC IN × 1, MIC OUT x 1)
Video Output CVBS video output ( BNC × 1 )
Storage Card Support TF card, up to 128GB
RS485 Yes
Alarm Input: 1ch Output: 1ch
Functions
Remote Monitoring IE browsing,CMS remote control
Online Connection Support simultaneous monitoring for up to 10 users;

Support multi-stream real time transmission

Protocol TCP / IP, UDP, DHCP, NTP, R Protocol TSP, PPPoE, DDNS, SMTP, FTP
Interface Protocol ONVIF, GB-T/28181-2011
Storage TF card local storage, network remote storage
Smart Alarm Motion alarm, sensor alarm
Smart Analysis Object removal detection, line crossing detection and

intrusion detection, etc.

PTZ RS485 × 1
PoE Yes
IR Distance 65-95ft (20~30m)
Water-proof IP66 IK10
Other
Power Supply DC 12V / PoE
Power Consumption < 4.5W
IR Consumption ON < 6.5W
Operating Environment – 20 °C ~ 50 °C,10 % ~ 90 % humidity
Dimensions ( mm ) ø 150 × 114
Weight ( net ) 1027g

Accessories

Compatible Camera Mounts

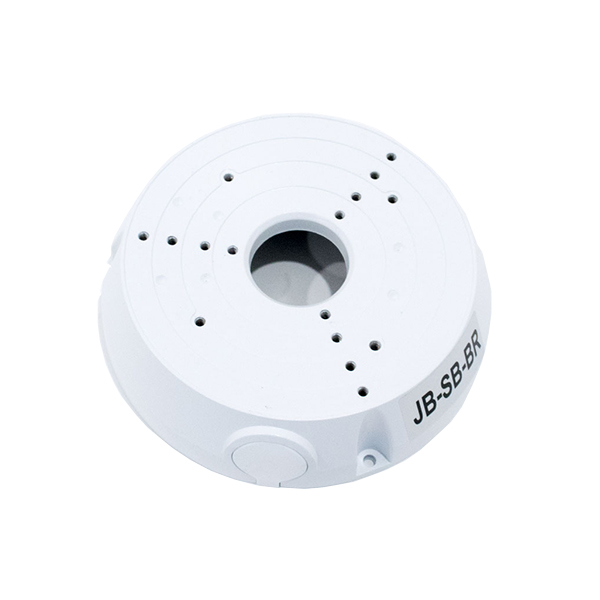

Part Number: JB-SB-BR JB-SB-BR Sibell Mounting bracket round Part Number: JB-SB-UNIR Sibell Mount JB-SB-UNIR

Documents

Download “IPVD-SB8IRZ-specsheet” IPVD-SB8IRZ-specsheet.pdf – Downloaded 79 times – 289 KB
