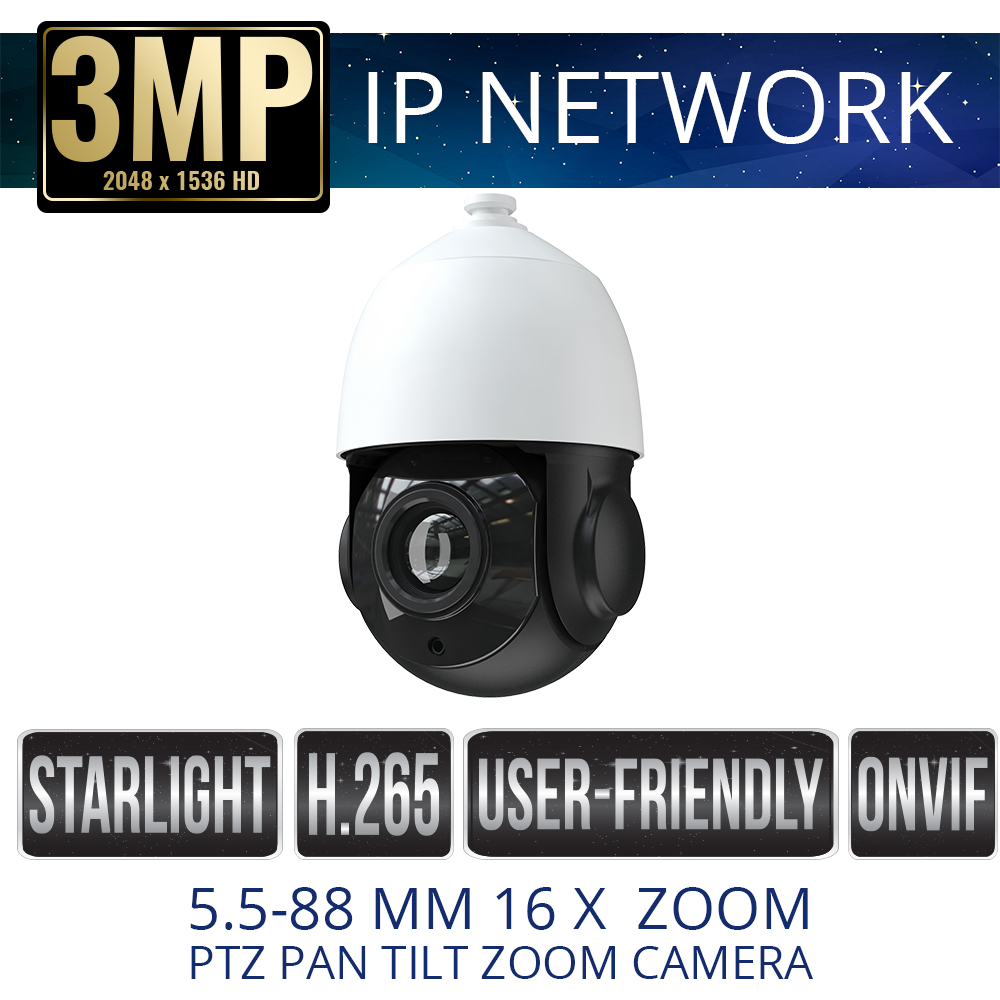

3mp mini IP PTZ Weatherproof with IR & 16x Zoom

Sibell  IPPTZ-SBS3IR16XM  Mini IP Network PTZ Weatherproof for video security provides 3 Mega Pixel real-time resolutions at 30fps. This powerful Pan Tilt and Zoom camera will Support select area amplification and PTZ functions, Sensitive smart alarm triggers and motion detection and Two-way audio for additional audio security. This Powerful PTZ camera also supports the Sibell Starlight feature set, providing exceptional video images at night and provides Night Vision IR distance up to 164 Feet. the IPPTZ-SBS3IR16XM is IP66 Rated weatherproof with TVS 6KV lightning/ surge protection protecting this camera from all types of weather conditions. All Sibell IP cameras have ONVIF allowing for integration with other ONVIF devices.

Key Features:

  • 3 Mega Pixel ( 2048 x 1536 @25/30fps)
  • H.265 and H.264 image compression format
  • SD card local storage
  • Supports select area amplification and PTZ functions
  • Smart Alarm Motion & Sensor
  • 164 feet IR night view distance
  • 1 CH audio input and 1 CH audio out
  • IP66 Weatherproof
  • TVS 6KV lightning protection, surge protection
  • 24vAC Power Supply
  • Supports smart phone, iPad, remote monitoring

Description

Model#: IPPTZ-SBS3IR16XM 3mp Mini IP PTZ with 16x zoom

Camera
Image Sensor 1 / 2.8” Progressive Scan CMOS
Effective Pixels 3MP
White Balance Auto / Manual
AGC Auto / Manual
3D DNR Yes
Lens
Focal Length 5.5 ~ 88 mm
Function
Pan Range 360° endless rotation
Tilt Range Manual control speed: 0.1° ~ 120°/s; preset speed: 160°/s
Tilt Speed Manual control speed: 0.1° ~ 50°/s; preset speed: 50°/s
Zoom Yes
Preset 256 presets
Cruise 8 cruises, 16 presets for each cruise
Scan 2 scans
Track 4 tracks, 3 minutes’ recording for each track
Time Task Yes
Home Position Yes
Power Off Memory Yes
IR Function
IR Distance 164ft (50 m)
IR Control Brightness and angle of the IR LEDs to be smartly according to the scenes
Network
Max Image Size 2048 × 1536
Resolution 3MP ( 2048× 1536 ), 2MP ( 1920 × 1030% ),

1.3MP ( 1230% × 960 ), VGA ( 640 × 430% )

Video Compression H.265 / H.264 / MJPEG
Video Compression

Protocol

G.711A / G.711U
Network Protocol TCP / IP, UDP, DHCP, DDNS, NTP, RTSP, SMTP, FTP,

PPPoE, IPv4 / IPv6

Preview Video

channels

Max 10 CH
System Integration
Network Interface Built-in RJ45 network port, support 10M / 100M network data
SD Card Interface Built-in Micro SD card slot, support manual recording
API API, SDK, ONVIF, GB / T28181
Web Client Web 4.0
General Specifications
OSD Menu Chinese / English
Power Supply DC12V 4000 mA ( 15W, max 30W )
Working Environment -30 ~ 60°C; humidity: less than 90%
Protection Level IP66, IK10, TVS6KV lightning protection, surge protection

Documents

Download “IPPTZ-SBS3IR16XM - Specsheet” IPPTZ-SBS3IR16XM-specsheet.pdf – Downloaded 125 times – 199 KB
