4mp IP Motorized Zoom Vandal-proof Dome Weatherproof with IR

Sibell IPVD-SB4IRZA 4mp IP Motorized Zoom Vandal-proof Dome Weatherproof Camera for video security provides 4 Mega Pixel real-time resolutions at 30fps. the 3.3-12mm Motorized zoom lens allows the user to zoom in and out to capture those fine details. 3D DNR Wide Dynamic Range (True WDR) and IR Cut Filter (ICR) True Day/Night to deliver quality imagery in any type of lighting environment. Night Vision IR distance up to 65 – 98 Feet. POE Power supply and IP66 Rated. All Sibell IP cameras have ONVIF allowing for integration with other ONVIF platforms.

Key Features:

  • 4 Mega Pixel ( 2592 x 1520 ) (2560 x 1440)
  • H.265 video encoding (optional)
  • 3.3~12mm Motorized Zoom
  • IP66 & IK10 ingress protection
  • ICR auto switch, true day / night
  • 65 ~ 98 feet IR night view distance
  • 3D DNR, True WDR
  • ROI coding (Region Of Intrest Feature)
  • Supports local CVBS video output and Two-way audio
  • Supports PoE power supply
  • Supports smart phone, iPad, remote monitoring
  • Supports three streams

Description

Model#: IPVD-SB4IRZA 4mp IP Motorized Zoom Vandal-proof Dome Weatherproof

Camera
Image Sensor 1/ 3 “CMOS
Image Size 2688 x 1520
Electronic Shutter 1 / 25 s ~ 1 / 100000 s
Min. Illumination 0.05 lux @F1.2,AGC ON; 0 lux with IR
Lens 3.3~12mm
Angle Adjustment Pan : 0°~360°, Tilt : 0°~77°, Rotation : 0°~360°
Video Compression H.265/ H.264 / MJPEG
Resolution 4MP ( 2560×1440 ), 3MP ( 2304×1296 ),1080P ( 1920×1080 ), 720P ( 1280×720 ), D1, CIF, 480×240
Main stream 60Hz :  ( 1 ~ 30fps ) /  1080P( 1 ~ 30fps ) / 720P( 1 ~ 30fps ) 4MP 4MP 3MP( 1 ~ 30fps ) /

50Hz :  ( 1 ~ 25fps ) / 3MP( 1 ~ 25fps ) / 1080P( 1 ~ 25fps ) / 720P( 1 ~ 25fps )

Bit rate 64 Kbps ~ 10 Mbps
Encode Mode VBR / CBR
Quality Five levels under VBR; Freely adjustable under CBR
Image Settings ROI, Saturation, Brightness, Chroma, Contrast,

Wide Dynamic, Sharpen, NR,etc.

Adjustable through client software or web browser

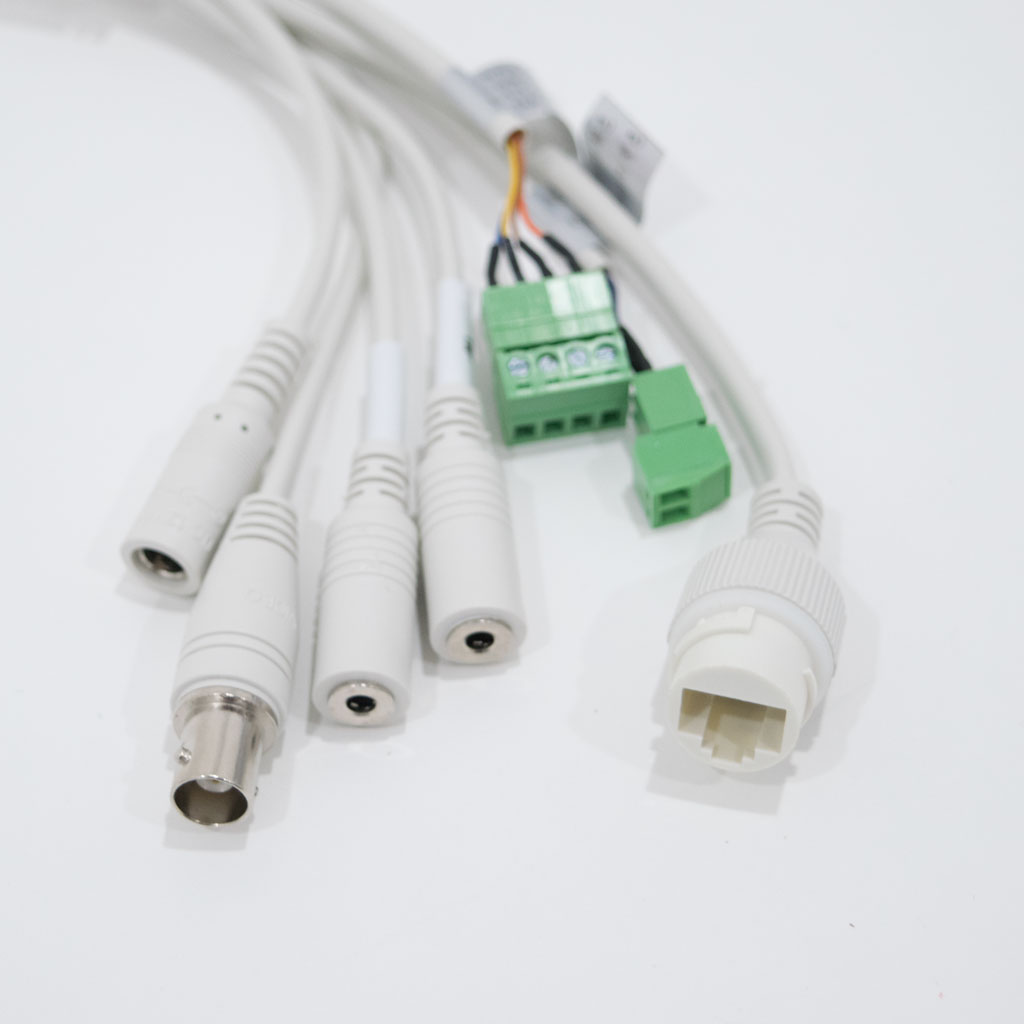

Interfaces
Network RJ45
Audio Two-way audio (MIC IN × 1, MIC OUT x 1)
Video Output CVBS video output ( BNC × 1 )
Storage Card Support TF card, up to 128GB
RS485 Yes
Alarm Input: 1ch Output: 1ch
Functions
Remote Monitoring IE browsing,CMS remote control
Online Connection Support simultaneous monitoring for up to 10 users;

Support multi-stream real time transmission

Protocol TCP / IP, UDP, DHCP, NTP, R Protocol TSP, PPPoE, DDNS, SMTP, FTP
Storage Network remote storage
Smart Alarm Motion Alarm
Day & Night ICR
PoE Yes
IR Distance 65-95ft (20~30m)
Water-proof IP66
Other
Power Supply DC 12V / PoE
Power Consumption < 2.5W
IR Consumption ON < 5W
Operating Environment – 20 °C ~ 50 °C,10 % ~ 90 % humidity
Dimensions ( mm ) ø 150 × 114
Weight ( net ) 1030g

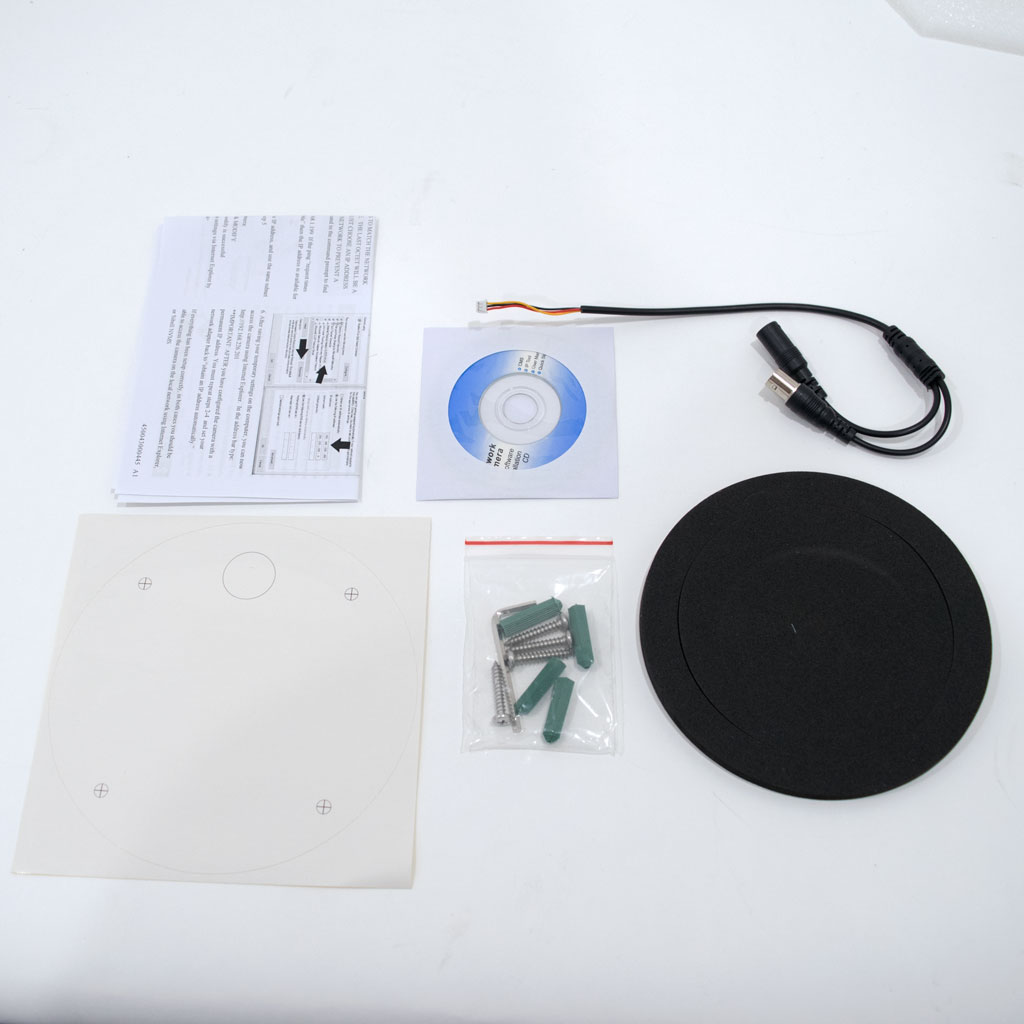

Accessories

Compatible Camera Mounts
Part Number: JB-SB-VDR JB-SB-VDR Part Number: WM-SB-VD wm-sb-vd

Documents

Download “IPVD-SB4IRZA Specsheet” IPVD-SB4IRZA-Specsheet.pdf – Downloaded 275 times – 370 KB

Download “IPVD-SB4IRZA Quick Start Guide” IPVD-SB4IRZA-QSG.pdf – Downloaded 275 times – 3 MB

Download “Sibell 4MP User Manual for Varifocal Lens Bullet and Dome” Sibell-4MP-user-munual-for-varifocal-lens-bullet-and-dome.pdf – Downloaded 417 times – 2 MB
