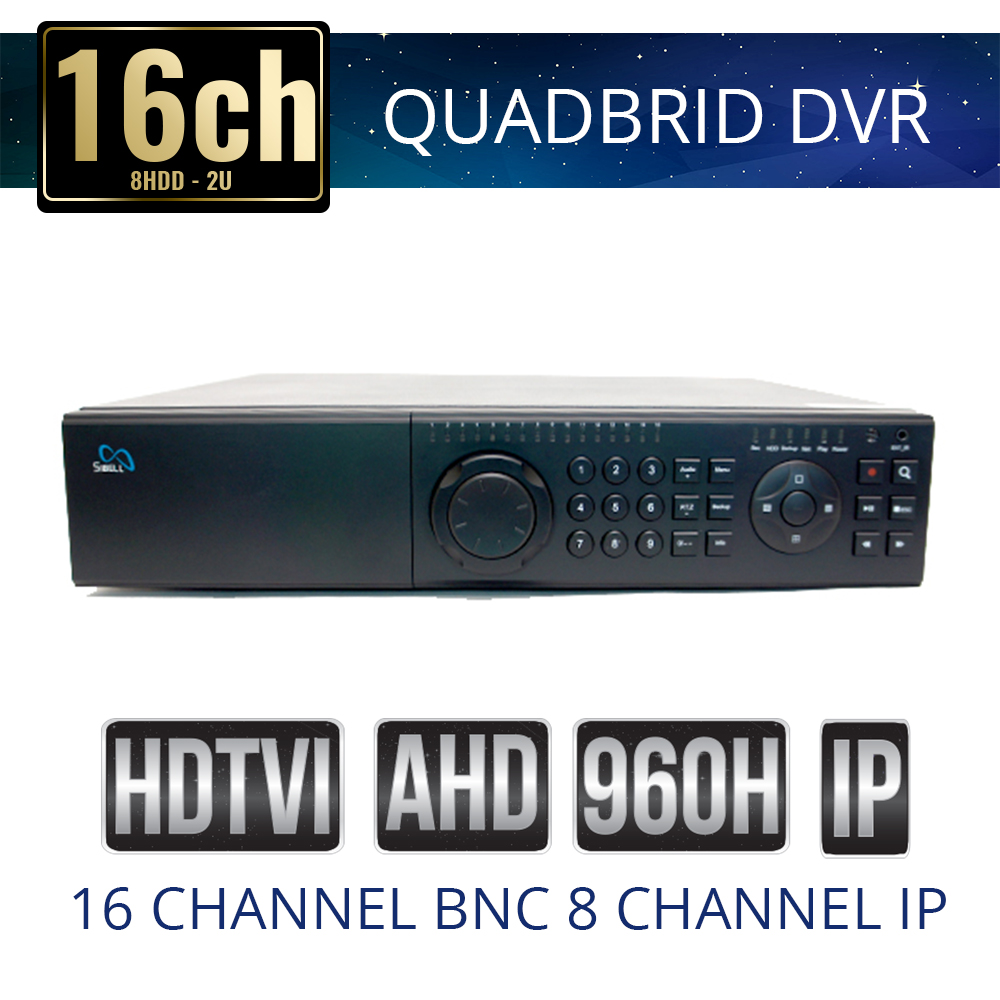

16ch Sibell Quadbrid DVR 8HDD TVI/AHD/IP/Analog

QDVR-SBE16 16ch Sibell Quadbrid DVR 8HDD TVI/AHD/IP/Analog is a quadbrid machine that supports up to 16 channels TVI, up to 16 channels AHD 2.0, up to 16 channels Analog and up to 8 channels IP and supports 1080p & 720p resolutions (3 megapixel for IP Cameras). You can mix and match any 16 channel camera combination on this machine in TVI/AHD/Analog or the 8 IP Channels. This is the ideal device for analog customer upgrades. The Sibell User interface was designed for usability, and can easily be interpreted as one of the most intuitive systems developed and embedded. This 16 channel Quadbrid machine intuitive and affordable making for a pleasant user experience. Sibell Quadbrid machines accept ONVIF devices.

Key Features:

  • 16ch TVI / AHD 2.0 video input
  • 16ch 1080P / 1080P lite / 720P recording
  • 8ch IP Camera 3MP / 1080P / 960P / 720P recording
  • H.264 high profile compression format
  • Intuitive, user-friendly GUI with Modular Design
  • Recording Modes in Manual, motion, sensor or timer
  • Search video: Time Slice, Time, Event or Tag Search
  • Express backup options
  • Remote Monitoring via Browser or CMS
  • Mobile Viewing Via Sibell Mobile App on IOS & Android
  • NAT function & QRCode scan to set up mobile viewing

Click Here to Learn More about the User Interface Features

Description

Model#: QDVR-SBE16 16ch Sibell Quadbrid DVR 8HDD TVI/AHD/IP/Analog

System Compression Standard H.264
OS Embedded Linux

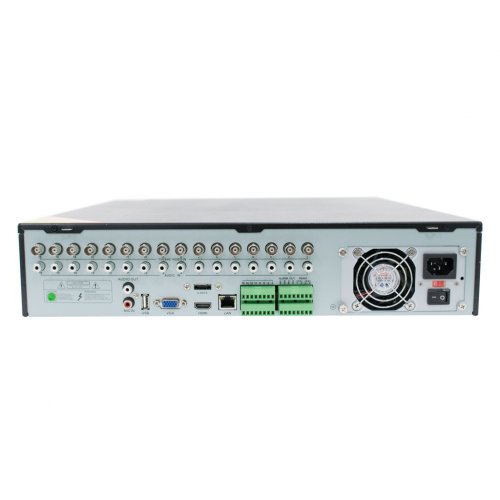

Video Input BNC x 16
Resolution



TVI / AHD 2.0 1080P, 720P, WD1 real time
IP Input /

Access

Bandwidth

IPC x 8 / 24Mbps
Output HDMI x 1:1920 x 1080, VGA x 1: 920 x 1080
Audio Input RCA x 16
Output RCA x 1
2-way audio RCA x 1
Record Resolution 1080P: 1920 x 1080, 720P: 1280 x 720
Frame Rate 1080P : 200fps ( PAL) / 240fps (NTSC )
720P : 400 fps (PAL) / 480fps (NTSC)
Bit Rate 768Kbps ~ 8Mbps
Encode VBR / CBR
Quality 6 Level
Mode Manual, timer, motion, sensor
File Manager Lock, unlock
IP Input Resolution 3MP / 1080P / 960P / 720P
Frame Rate 1080p : 200fps (PAL)
960P/ 720P: 240fps (NTSC) (NTSC)
Playback Playback 8 CH
Search Time / calendar search, event ( motion, external alarm )
Smart

Search

Highlighted date and time to display the channel record
Function Play, Pause, FF, FB, Digital zoom
Alarm Mode Sensor, motion, video loss
Input 16CH
Output 4 CH
Triggering Record, PTZ move, alarm out, e-mail, etc
Network Interface RJ45 10M / 100M x 1
Protocol TCP / IP, UDP, DHCP, DNS, PPPOE, DDNS
Web Client 10 users online, dual stream
Mobile Device OS IOS, Android
Storage HDD SATA x 8, e-SATA x 1
Others Power Supply DC 12V
Consumption ≤ 26W ( without HDD )
Dimensions 430 × 450 × 90 ( W × D × H )
Environment -10 °C ~ 50 °C 10% ~ 90% humidity

Documents

Download “QDVR-SBE16 Specsheet” QDVR-SBE16-Specsheet.pdf – Downloaded 320 times – 450 KB

Download “QDVR-SBE16 Quick Start Guide” qdvr-sbe16-quick-start-guide.pdf – Downloaded 353 times – 2 MB

Download “Sibell Quad Machine DVR Manual” Sibell-Quad-MachineDVR-user-manual.pdf – Downloaded 703 times – 6 MB
