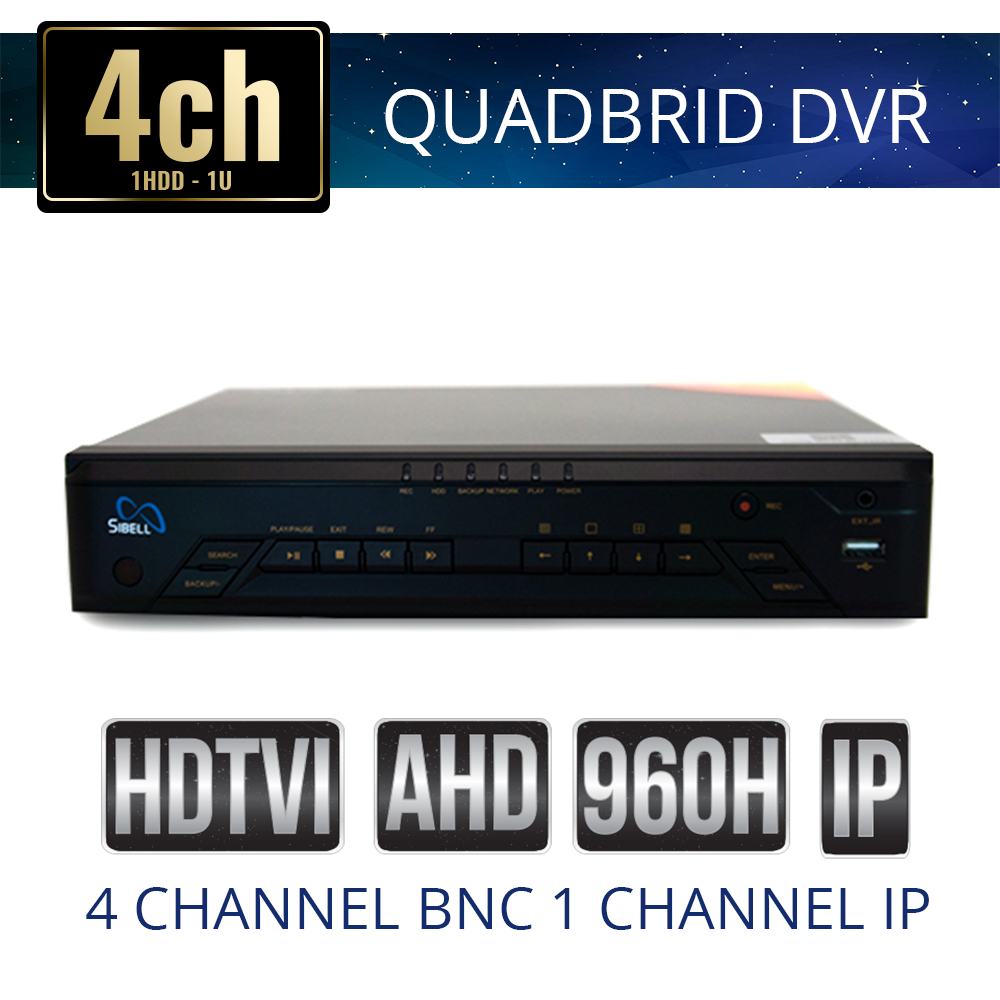

4ch Sibell Quadbrid DVR 1HDD TVI/AHD/IP/Analog

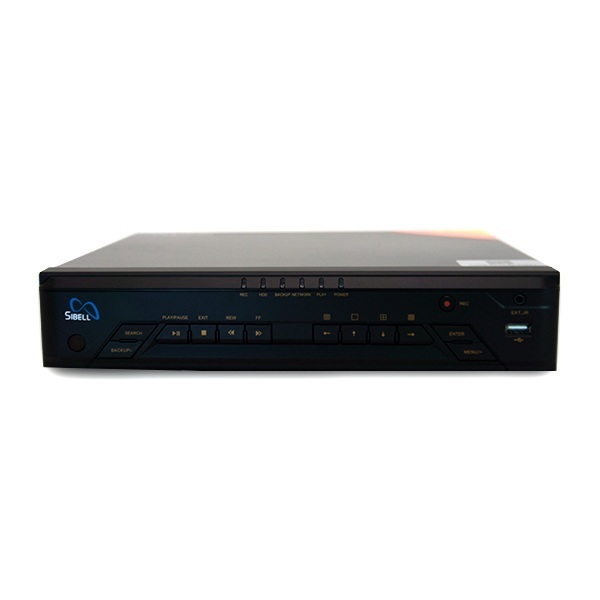

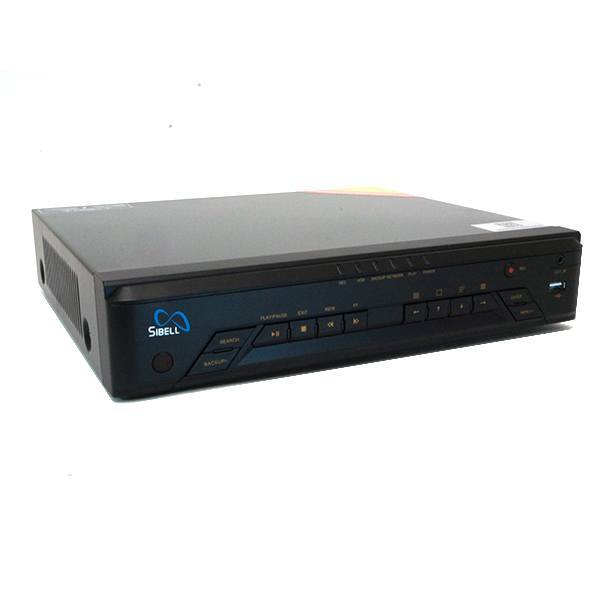

QDVR-SBE4ME 4ch Sibell Quadbrid DVR 1HDD TVI/AHD/IP/Analog is a quadbrid machine that supports up to 4 channels TVI, up to 4 channels AHD 2.0, up to 4 channels Analog and up to 1 channel IP and supports 1080p & 720p resolutions. You can mix and match any 4 channel camera combination on this machine in TVi/AHD/Analog or the Single IP Channel. This is the ideal device for analog customer upgrades. The Sibell User interface was designed for usability, and can easily be interpreted as one of the most intuitive systems developed and embedded. This 4 channel Quadbrid machine intuitive and affordable making for a pleasant user experience. Sibell Quadbrid machines accept ONVIF devices.

Key Features:

  • 4ch TVI / AHD 2.0 video input
  • 4ch 1080P / 1080P lite / 720P recording
  • 4ch DVR: 1ch IP 1080P / 960P / 720P recording
  • H.264 high profile compression format
  • Intuitive, user-friendly GUI with Modular Design
  • Recording Modes in Manual, motion, sensor or timer
  • Search video: by time, calendar and events
  • Express backup options
  • Remote Monitoring via Browser or CMS
  • Mobile Viewing Via Sibell Mobile App on IOS & Android
  • NAT function & QRCode scan to set up mobile viewing

Click Here to Learn More about the User Interface Features

Product Description

Model#: QDVR-SBE4ME 4ch Sibell Quadbrid DVR 1HDD TVI/AHD/IP/Analog

SystemCompressionStandard H.264
OSEmbedded Linux

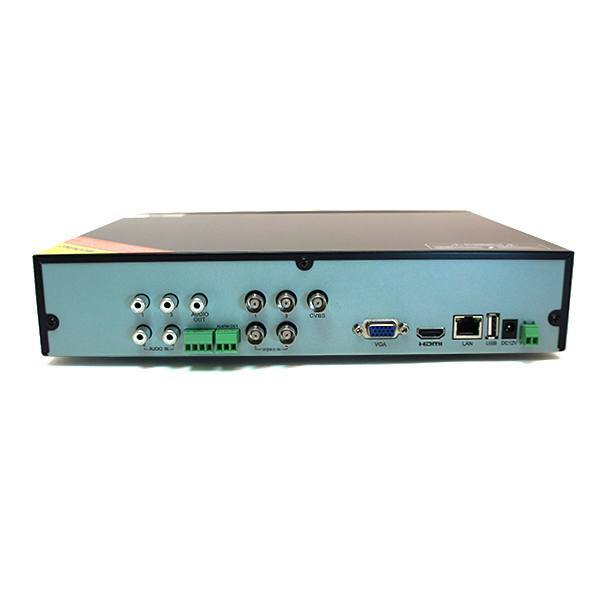

VideoNetwork InputBNC x 4
ResolutionTVI / AHD 2.0 1080P, 720P, WD1 real time
IP Input/ Access BandwidthIPC × 1 / 6Mbps
OutputHDMI × 1 : 1920 × 1080, VGA × 1 : 1920 × 1080, BNC × 1 : CVBS ( used as the main or spot output )
AudioInputRCA × 4
OutputRCA x 1
Two-way audioTake up channel one audio input
RecordResolution1080P, 1080P lite, 720P
Frame Rate1080P : 1~12fps ( PAL / NTSC )
1080P Lite / 720P : 1~real time ( PAL / NTSC )
Bit Rate768Kbps ~ 8Mbps
EncodeVBR / CBR
Quality6 Level
ModeManual, timer, motion, sensor
File ManagerLock, unlock
IP InputFrame rate3MP: NO
1080p : 25fps (PAL)
960P/ 720P: 30fps (NTSC)
SearchTime / calendar search, event ( motion,sensor )
Smart SearchHighlighted date and time to display the channel record
FunctionPlay, pause, FF, FB, digital zoom
AlarmModeSensor, motion, video loss
TriggeringRecord, PTZ move, alarm out, e-mail, etc
NetworkInterfaceRJ45 10M / 100M × 1
Web Client10 users online, dual stream
Mobile DeviceOSIOS, Android
StorageHDDSATA x1, 6TB Max per Hard Drive
PortRS485RS485 × 1
USBUSB 2.0 × 2, connect to mouse and USB backup  device
Remote ControllerYes
OthersPower SupplyDC12V
Consumption≤ 5W ( without HDD )
Dimensions12 × 11 × 2.2 ( W × D × H ) in
Environment-10 °C ~ 50 °C 10% ~ 90% humidity
Related articles :


Download “QDVR-SBE4ME Specsheet” QDVR-SBE4ME-Specsheet.pdf – Downloaded 356 times – 565 KB

Download “QDVR-SBE4ME Quickstart Guide” QDVR-SBE4ME-QSG.pdf – Downloaded 300 times – 2 MB

Download “Sibell Quad Machine DVR Manual” Sibell-Quad-MachineDVR-user-manual.pdf – Downloaded 658 times – 6 MB
