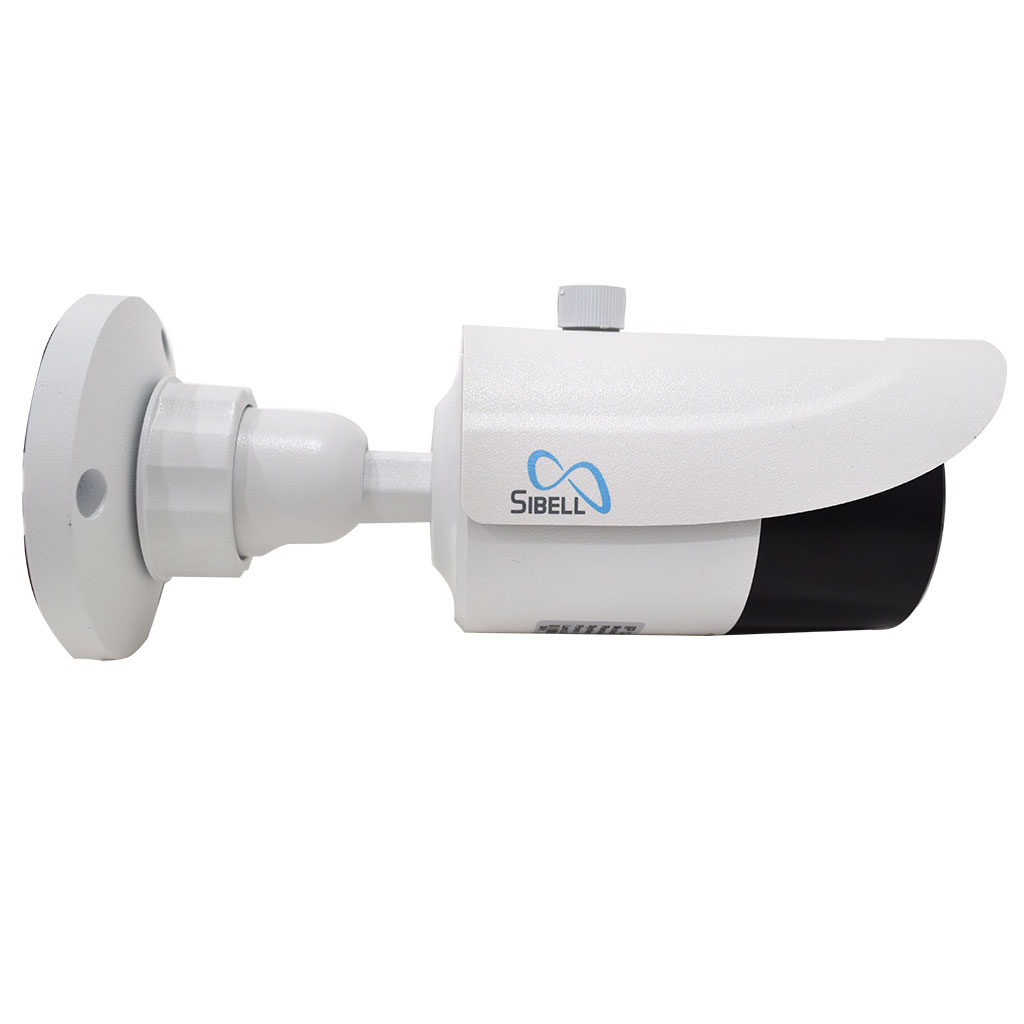

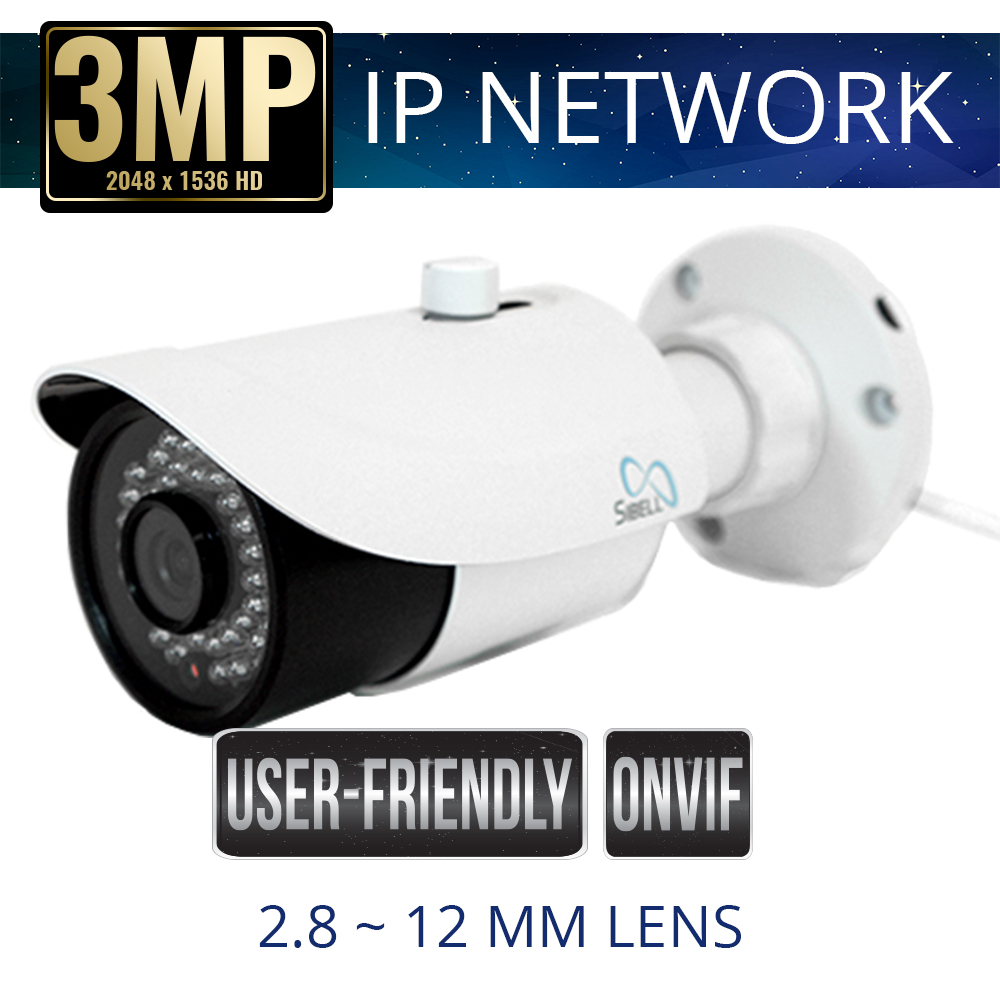

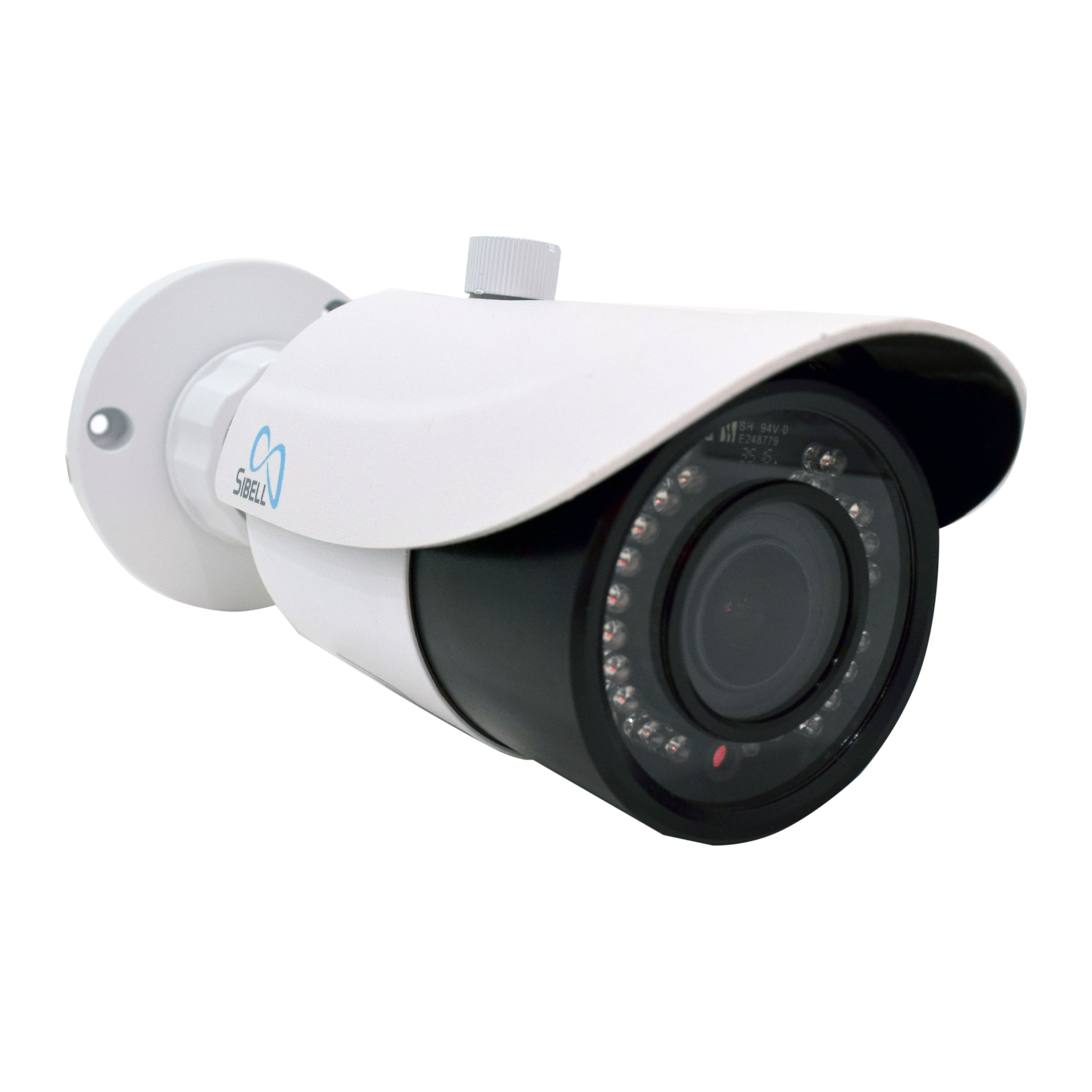

3mp IP Network Bullet Camera Weatherproof with IR

Sibell IPOB-SB3IREV 3mp IP Bullet Camera for video security provides 3 Mega-Pixel real-time resolutions at 30fps. (2048 x 1536).  This 3mp IP Bullet Camera provides a feature set including ICR auto switch, true day / night, 3D DNR, and Digital Wide Dynamic Range. The Lens is manual varifocal 2.8-12mm adjustable zoom. The Sibell IPOB-SB3IREV is IP66 Rated weatherproof for indoor or outdoor use and all Sibell IP cameras have ONVIF allowing for integration with other ONVIF platforms. Sibell IP Cameras work seamlessly with Sibell Recorders.

Key Features:

  • 3 Mega Pixel ( 2048 x 1536 )
  • Max. Resolution: 2048 x 1536
  • ICR auto switch, true day / night
  • 33 ~ 66 feet IR night view distance
  • 3D DNR, digital WDR
  • ROI coding
  • Supports PoE power supply
  • Supports smart phone, iPad, remote monitoring
  • Supports three streams

Product Description

IPOB-SB3IREV 3mp IP Bullet Camera

Camera
Image Sensor1 / 3 “CMOS
Image Size2688 × 1520
Electronic Shutter1 / 25 s ~ 1 / 30%000 s
Auto IrisFixed Iris
Min. Illumination0.05 lux @F1.2,AGC ON; 0 lux with IR
Lens3.3 ~ 12 mm @F1.4, angle of view: 80° ~ 38°
Lens Mountɸ 14
Day & NightICR
Wide Dynamic Range120dB
BLC/ HLC/ DefoggingYes
Digital NR2D/3D DNR
Angle AdjustmentAny Angle
Video CompressionH.265 / H.264 / MJPEG
Main Profile @Leve4.1 High Tier
Resolution4MP ( 2592×1520 ), 2K ( 2560×1440 ), 3MP ( 2304×1296 ),

1080P ( 1920×1080 ), 720P ( 1280×720 ), D1, CIF, 480×240

Main stream60Hz : 4MP( 1 ~ 30fps ) / 2K ( 1 ~ 30fps ) / 3MP( 1 ~ 30fps ) / 1080P( 1 ~ 30fps ) / 720P( 1 ~ 30fps )
50Hz : 4MP( 1 ~ 25fps ) / 2K( 1 ~ 25fps ) / 3MP( 1 ~ 25fps ) / 1080P( 1 ~ 25fps ) / 720P( 1 ~ 25fps )
Bit rate 64 Kbps ~ 10 Mbps
Encode ModeVBR / CBR
QualityFive levels under VBR; Freely adjustable under CBR
Image SettingsROI, Saturation, Brightness, Chroma, Contrast,

Wide Dynamic, Sharpen, NR,etc. adjustable through

client software or web browser

Audio Compression G711A / U
ROIEach ROI to be configured separately
Interfaces

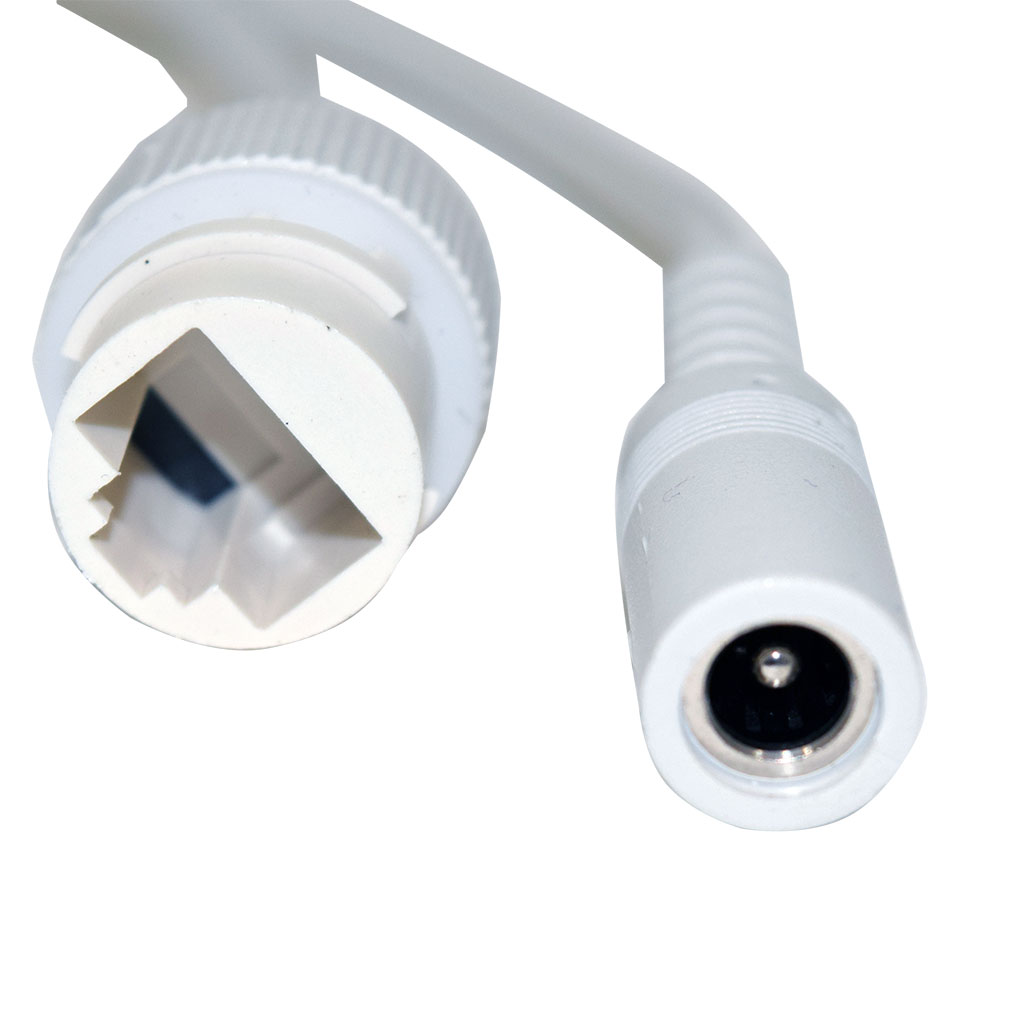

NetworkRJ45
AudioMIC IN × 1
Video OutputCVBS video output ( BNC × 1 )
Functions
Remote MonitoringIE browsing,CMS remote control
Online Connection  Support simultaneous monitoring for up to 10 users;   Support multi-stream real time transmission
ProtocolTCP / IP, UDP, DHCP, NTP, RTSP, DDNS, SMTP,FTP
Interface ProtocolONVIF, GB-T/28181-2011
StorageNetwork remote storage
Smart AlarmMotion Alarm
PoEYes
IR Distance65-98ft (20~30m)
Water-proofIP66
Other
Power SupplyDC 12V / PoE
Power Consumption< 2.5W
IR Consumption ON< 6W
Operating Environment– 20 °C ~ 50 °C,10 % ~ 90 % humidity
Dimensionsɸ 3.5in × 9in  ɸ 87 × 219
Weight ( net )636g (1.5lbs)
InstallationWall mounting, pendent mounting

Documents

Download “IPOB-SB3IREV- Specsheet” IPOB-SB3IREV-specsheet.pdf – Downloaded 4 times – 233 KB

Download “IPOB-SB3IREV - Quick Start Guide” IPOB-SB3IREV-QSG.pdf – Downloaded 4 times – 1 MB

Download “IPOB-SB3IREV- Manual” IPOB-SB3IREV-Manual.pdf – Downloaded 2 times – 2 MB

Accessories

Compatible Camera Mounts Part Number: JB-SB-BR mount
