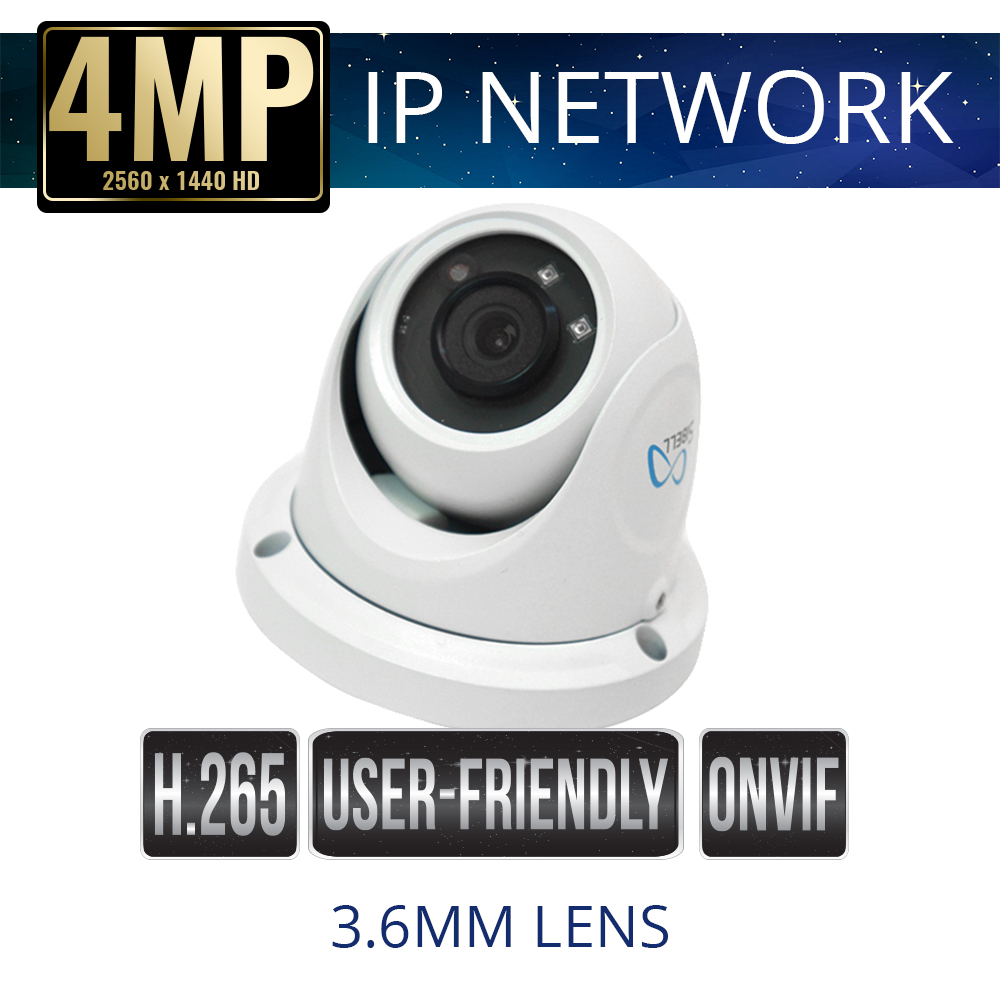

4mp IP Network Dome Camera Weatherproof with IR

Sibell IPOD-SB4IR4mp IP Network Dome Camera for video security provides 4 Mega Pixel real-time resolutions at 30fps. 3D DNR Wide Dynamic Range (digital WDR) and  IR Cut Filter (ICR) True Day/Night to deliver quality video surveillance in any type of lighting environment. Night Vision IR distance is up to 32 – 65 Feet with easy PoE Power supply and IP66 Rated perfect for Indoor and Outdoor applications. All Sibell IP cameras come with ONVIF allowing for integration with ONVIF platforms, Sibell 4 Mega Pixel IP cameras offer exceptional image quality that adapts to most situations, weather you need surveillance inside, outside, in the light or the dark Sibell cameras provide the solution.

Key Features:

  •  4 Mega Pixel ( 2560 x 1440 ) Max: 2560 x 1440
  • 3.6mm Wide Angle Lens
  • H.265 Video coding (optional)
  • ICR auto switch, true day / night
  • 32 ~ 65 feet IR night view distance
  • 3D DNR, WDR
  • ROI coding (Region Of Intrest)

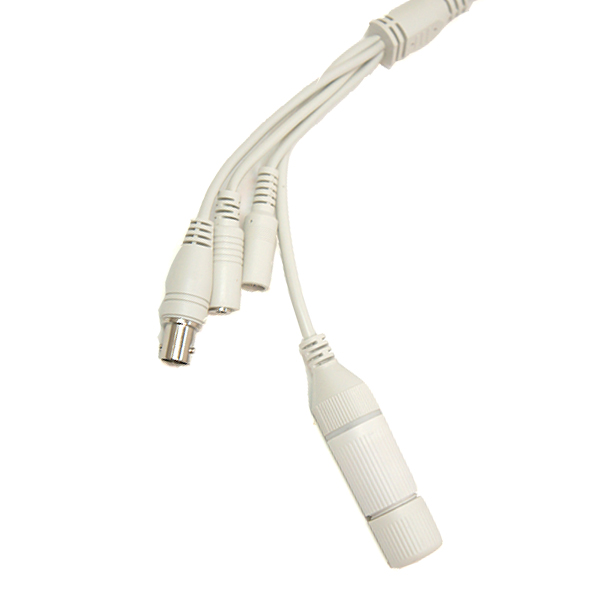

  • Supports local CVBS video output and one-way audio
  • Supports PoE power supply
  • Supports smart phone, iPad, remote monitoring
  • Supports three streams

Description

Model#: IPOD-SB4IR 4mp IP Network Dome Camera

Camera
Image Sensor 1 / 3 “CMOS
Image Size 2688 x 1520
Electronic Shutter 1 / 25 s ~ 1 / 100000 s
Min. Illumination 0.05 lux @F1.2,AGC ON; 0 lux with IR
Lens 3.6mm Fixed
Lens Mount M12
Day & Night ICR
Wide Dynamic Range Digital WDR
Digital NR 2D/3D DNR
Angle Adjustment Any Angle
Video Compression H.265/ H.264 / MJPEG
Resolution 4MP ( 2560 × 1440 ), 3MP (2304 × 1296), 1080p ( 1920 × 1080 ),  720P ( 1280 × 720 ), D1, CIF, 480 × 240
Main stream 60Hz : 4MP( 1 ~ 30fps ) / 3MP( 1 ~ 30fps ) / 1080P( 1 ~ 30fps ) / 720P( 1 ~ 30fps )

50Hz : 4MP( 1 ~ 25fps ) / 3MP( 1 ~ 25fps ) / 1080P( 1 ~ 25fps ) / 720P( 1 ~ 25fps)

Bit rate 64 Kbps ~ 10 Mbps
Encode Mode VBR / CBR
ROI Each ROI to be configured separately
Quality Five levels under VBR; Freely adjustable under CBR
Image Settings ROI, Saturation, Brightness, Chroma, Contrast,

Wide Dynamic, Sharpen, NR,etc.

Adjustable through client software or web browser

Interfaces
Network RJ45
Audio MIC IN × 1
Audio Compression G711A / U
Video Output CVBS video output ( BNC × 1 )
Functions
Remote Monitoring IE browsing,CMS remote control
Online Connection Support simultaneous monitoring for up to 10 users;

Support multi-stream real time transmission

Protocol TCP / IP, UDP, DHCP, NTP, R Protocol TSP, PPPoE, DDNS, SMTP, FTP
Storage Network remote storage
Smart Alarm Motion Alarm
PoE Yes
IR Distance 32-65ft (10~20m)
Water-proof IP66
Other
Power Supply DC 12V / PoE
Power Consumption < 5W (when IR is on < 4.5W)
Operating Environment – 20 °C ~ 50 °C,10 % ~ 90 % humidity
Dimensions ( mm ) ø 87 × 108  (Weight:427g)

Accessories

Compatible Camera Mounts
Part Number: JB-SB-BR JB-SB-BR Sibell Mounting bracket round Part Number: WB-SB-ED Sibell Mount wm-sb-ed

Documents

Download “IPOD-SB4IR Specsheet” IPOD-SB4IR-specsheet.pdf – Downloaded 318 times – 565 KB

Download “IPOB-SB4IR Quick Start Guide” IPOB-SB4IR-QSG.pdf – Downloaded 299 times – 2 MB

Download “Sibell 4MP Manual for fixed lens Eyeball/Bullet” Sibell-4MP-manual-for-fixed-lens-eyeball-bullet.pdf – Downloaded 365 times – 2 MB
