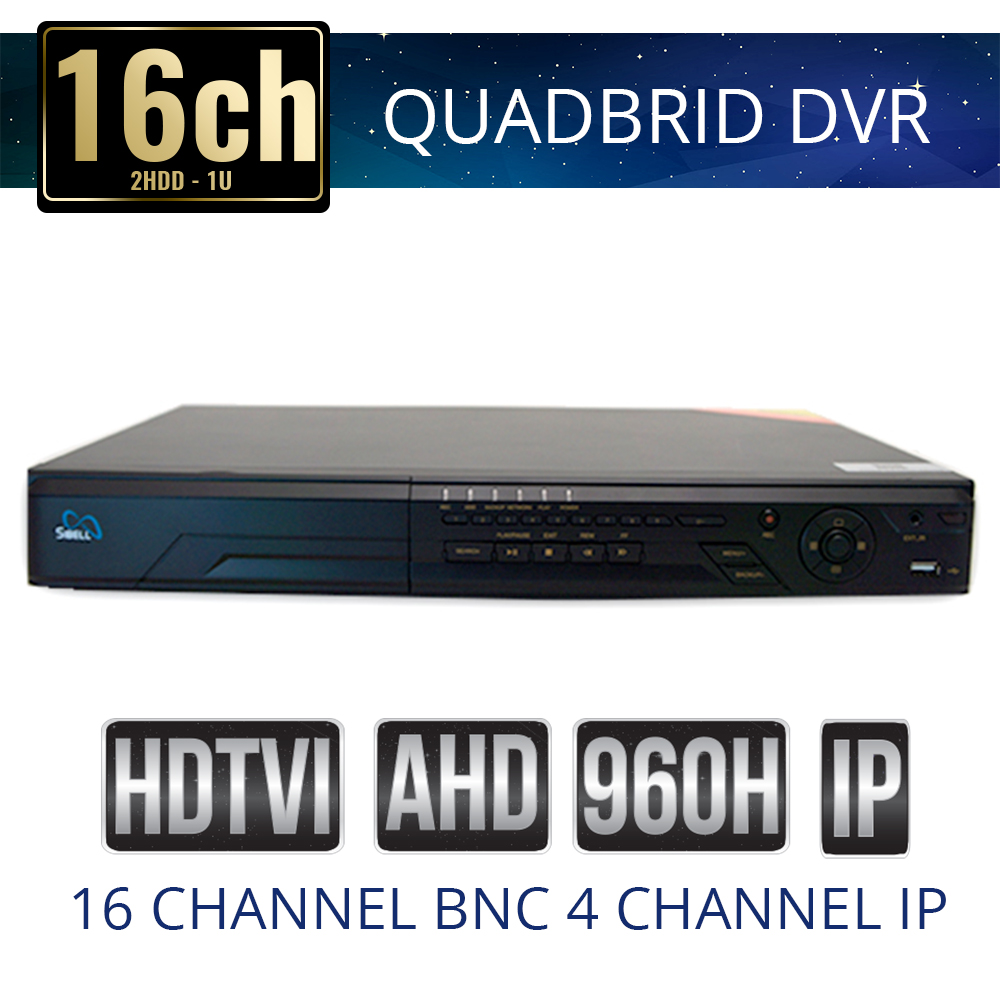

16ch Sibell Quadbrid DVR 2HDD TVI/AHD/IP/Analog

QDVR-SBE16M 16ch Sibell Quadbrid DVR 2HDD TVI/AHD/IP/Analog is a quadbrid machine that supports up to 16 channels TVI, up to 16 channels AHD 2.0, up to 16 channels Analog and up to 4 channels IP and supports 1080p & 720p resolutions (3 megapixel for IP Cameras). You can mix and match any 16 channel camera combination on this machine in TVI/AHD/Analog or the 4 IP Channels. This is the ideal device for analog customer upgrades. The Sibell User interface was designed for usability, and can easily be interpreted as one of the most intuitive systems developed and embedded. This 16 channel Quadbrid machine intuitive and affordable making for a pleasant user experience. Sibell Quadbrid machines accept ONVIF devices.

Key Features:

  • 16ch TVI / AHD 2.0 video input
  • 16ch 1080P / 1080P lite / 720P recording
  • 4ch IP Camera 3MP / 1080P / 960P / 720P recording
  • H.264 high profile compression format
  • Intuitive, user-friendly GUI with Modular Design
  • Recording Modes in Manual, motion, sensor or timer
  • 16 ch Simultaneous playback
  • Search video: Time Slice, Time, Event or Tag Search
  • Express backup options
  • Remote Monitoring via Browser or CMS
  • Mobile Viewing Via Sibell Mobile App on IOS & Android
  • NAT function & QRCode scan to set up mobile viewing

Click Here to Learn More about the User Interface Features

Product Description

Model#: QDVR-SBE16M 16ch Sibell Quadbrid DVR 2HDD TVI/AHD/IP/Analog

SystemCompressionStandard H.264
OSEmbedded Linux
VideoInputBNC x 16
Resolution



TVI / AHD 2.0 1080P, 720P, WD1 real time
IP Input /

Access

Bandwidth

IPC x 4 / 24Mbps
OutputHDMI x 1:1920 x 1080, VGA x 1: 920 x 1080

BNC x 1 : CVBS ( used as the main or SPOT output )

AudioInputRCA x 4
OutputRCA x 1
2-way audioTake up channel one audio input
RecordResolution1080P, 1080P lite, 720P
Frame Rate1080P : 1~12fps ( PAL / NTSC )
1080P Lite / 720P : 1~real time ( PAL / NTSC )
Bit Rate768Kbps ~ 8Mbps
EncodeVBR / CBR
Quality6 Level
ModeManual, timer, motion, sensor
File ManagerLock, unlock
IP InputResolution3MP / 1080P / 960P / 720P
Frame Rate200 fps (PAL) / 240 fps (NTSC)
PlaybackPlayback16 CH
SearchTime / calendar search, event ( motion, external alarm )
Smart

Search

Highlighted date and time to display the channel record
FunctionPlay, Pause, FF, FB, Digital zoom
AlarmModeSensor, motion, video loss
Input4CH
Output1 CH
TriggeringRecord, PTZ move, alarm out, e-mail, etc
NetworkInterfaceRJ45 10M / 100M x 1
ProtocolTCP / IP, UDP, DHCP, DNS, PPPOE, DDNS
Web Client10 users online, dual stream
Mobile DeviceOSIOS, Android
StorageHDDSATA × 2, max 6TB per HDD
PortRS485RS485 x 1, connect to PTZ or keyboard
USBUSB 2.0 × 1 ( front panel ), USB 3.0 × 1 ( rear panel )
Remote ControllerYes
OthersPower SupplyDC 12V
Consumption≤ 15W ( without HDD )
Dimensions17 × 12 × 2.2 ( W × D × H ) in
Environment-10 °C ~ 50 °C 10% ~ 90% humidity
Related articles :

Documents

Download “QDVR-SBE16M Specsheet” QDVR-SBE16M-Specsheet.pdf – Downloaded 157 times – 736 KB

Download “QDVR-SBE16M Quick Start Guide” QDVR-SBE16M-QSG.pdf – Downloaded 242 times – 2 MB

Download “Sibell Quad Machine DVR Manual” Sibell-Quad-MachineDVR-user-manual.pdf – Downloaded 449 times – 6 MB
