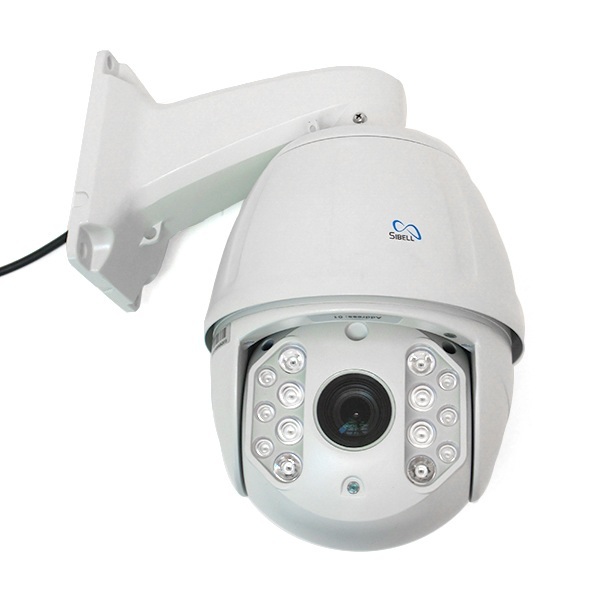

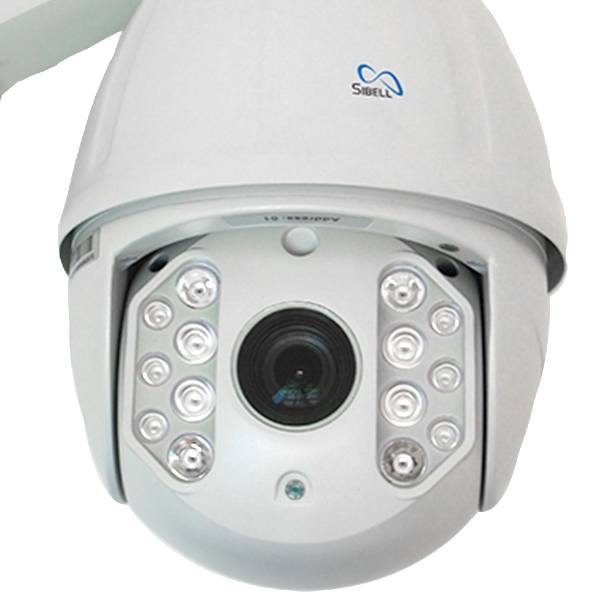

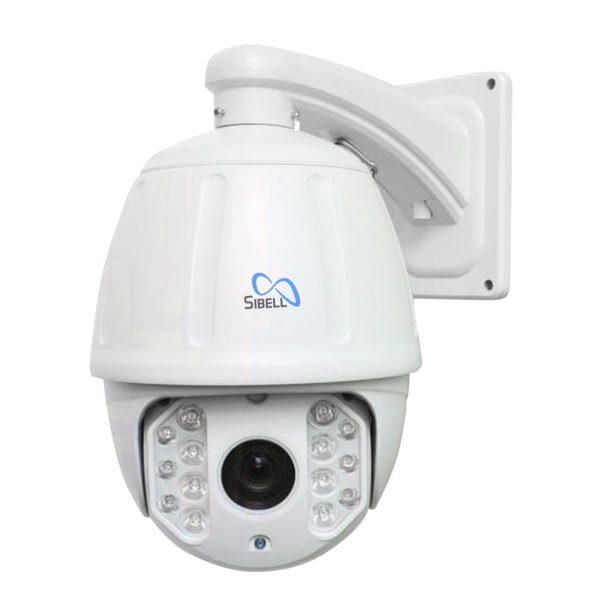

2mp TVI PTZ Weatherproof with Long range IR & 18x Optical Zoom
Sibell TVIPTZ-SB2IR18XE 2mp TVI PTZ Weatherproof with Long range IR & 18x Optical Zoom for video security provides 2 Mega Pixel real-time resolutions at 30fps. This powerful Pan Tilt and Zoom camera Supports 18x Optical Zoom to see intimate details and is programmable for 360° Scan with 220 preset points. Powerful solutions TVI hd over coax, weatherproof camera that can see up 390 feet in the dark.
Key Features:
- 2 Mega Pixel 1080P (1920 x 1080)
- 18X Optical Zoom
- 390 feet of IR night view distance
- Programmable 360° Scan
- 220 Preset Points
- IP66 Weatherproof
- TVI High Definition Over Coaxial Cable
- 12vDC/3A Power Supply
Description
Model#: TVIPTZ-SB2IR18XE 2mp TVI PTZ Weatherproof with Long range IR & 18x Optical Zoom |
|
| Camera | |
| Image Sensor | 1/2.8” SONY CMOS Sensor 2.4MP |
| Image Resolution | 1080P |
| S/N Ratio | ≥58dB |
| PTZ | |
| Horizontal Rotation Speed | 60°/s |
| Horizontal Rotation Range | 360° |
| Tilt Rotation Speed | 360° |
| Tilt Rotation Range | 93° |
| Auto Flip | Horizontal 180°, Vertical 93° |
| Ratio Speed | Support |
| 360° Scan | User programmable |
| 360° Scan Speed | 01-64speed setting available |
| A-B Scan | User programmable |
| A-B Scan Speed | 01-64speed setting available |
| PWR on Action | Memory/Tour/360 scan/AB scan/Home/Nop |
| Park Time | 1-60 mins setting available |
| Dwell Preset | 1-60s interval available |
| Preset Points | 220 |
| Go to Preset Speed | 200°/s |
| Guard Tours | 4 groups |
| Guard Points | Max.16 points, dwell time user selectable |
| Lens | |
| Focus Length | 5.35mm-96.3mm |
| Focus Control | 18X Optical Zoom |
| Night Vision | |
| Infrared LED | 22x8PCS + 16x6PCS |
| IR Range | 390 Feet (120m) |
| Auxiliary Interface | |
| Communication Protocol | Pelco-D, Pelco-P |
| Communication | RS485 |
| Baud Rate | 1200/2400/4800/9600bps |
| General | |
| Weatherproof | 1p66 |
| Operating Humidity | ≤95% Non Condensing |
| Heater & Blower | Auto temperature control |
| Auto Control IR LED | PWM |
| OSD Menu | Yes English |
| Power | DC12V/3A |
| Power Consumption | ≤ 36W |
| Lightning Protection | Transient voltage 6000V |
| Dimension | 32x32x43(cm) |
| Weight | 7kgs |
Documents
Download “TVIPTZ-SB2IR18XE Specsheet”
TVIPTZ-SB2IR18XE-Specsheet.pdf – Downloaded 550 times – 164.05 KBDownload “TVIPTZ-SB2IR18XME & TVIPTZ-SB2IR18XE Manual”
TVIPTZ-SB2IR18XE-SB2IR18XME-USER-MANUAL.pdf – Downloaded 631 times – 13.71 MBYou must be logged in to post a review.
