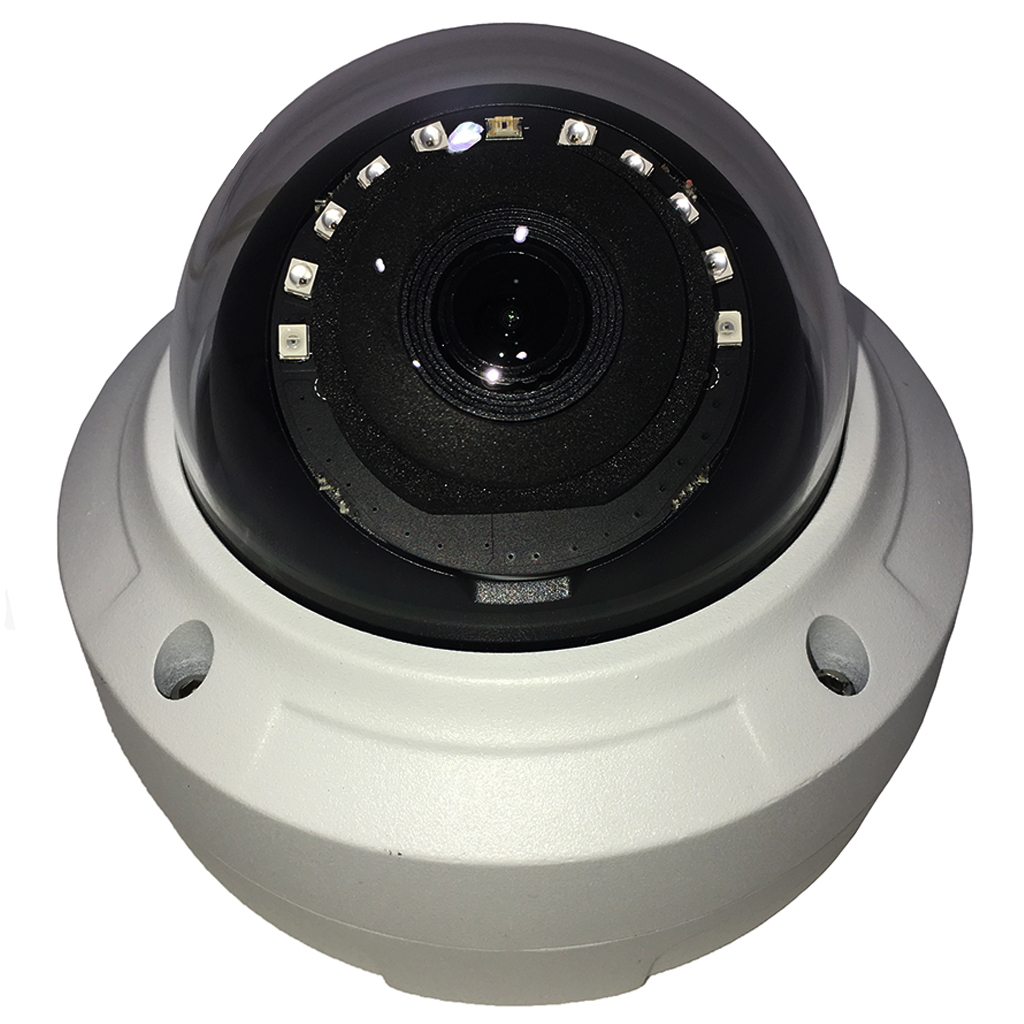

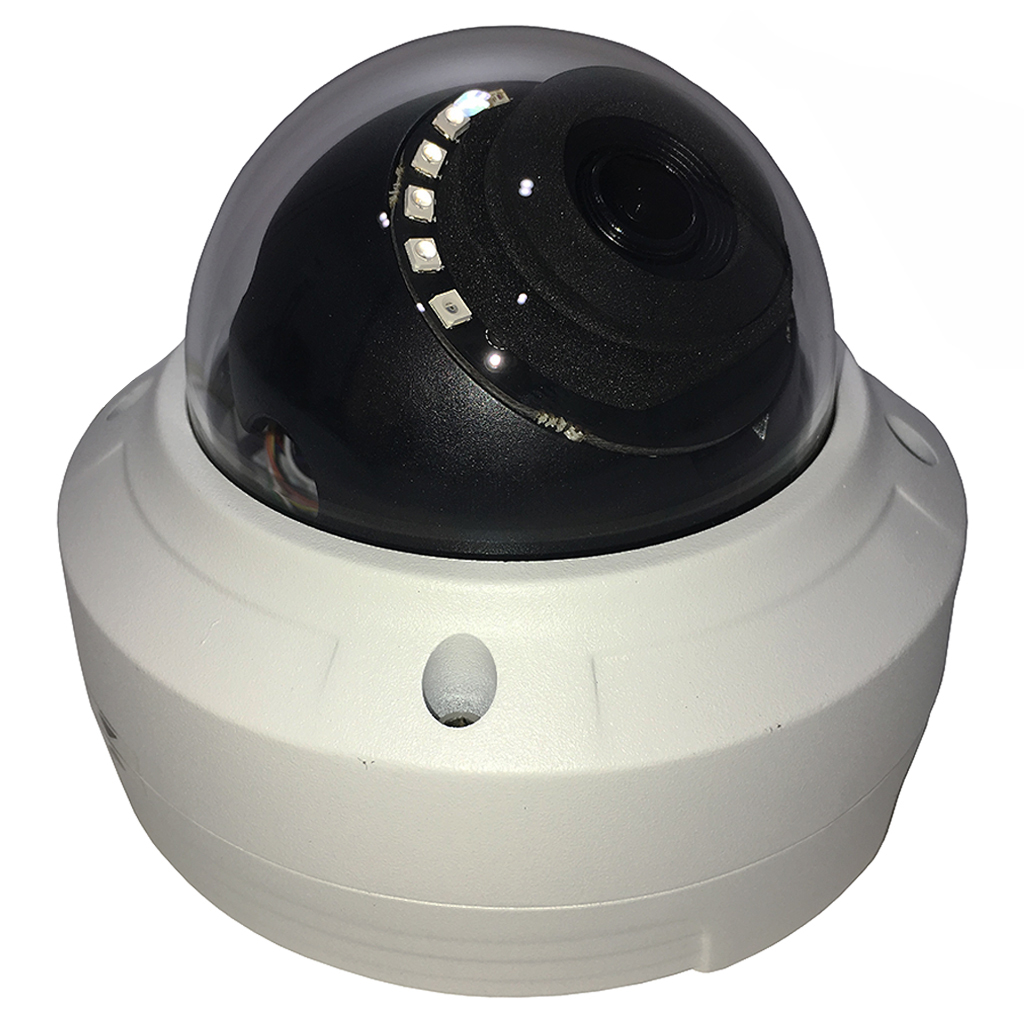

4mp IP Vandal-proof Dome with IR & 2.8mm fixed lens

Sibell IPVD-SB4IR28 4mp IP Vandal-proof Dome Weatherproof Camera for video security provides 4 Mega Pixel real-time resolutions at 30fps. 3D DNR Wide Dynamic Range and IR Cut Filter (ICR) True Day/Night to deliver quality imagery in any type of lighting environment. Sibell 4 Mega Pixel Camera offer exceptional video day or night, the IPVD-SB4IR has a 2.8wide-angle fixed lens and has IK10 ingress protection (protects from criminal tampering). The Night Vision IR distance is 30 – 65 Feet and comes with easy  PoE (power over Ethernet) Power supply.  Thie vandal proof dome is also weatherproof IP66 Rated making it great for outdoor or indoor applications. All Sibell IP cameras use ONVIF allowing for integration with ONVIF devices.

Key Features:

  • 4 Mega Pixel ( 2592 x 1520 ) (2560 x 1440)
  • H.265 video encoding (optional)
  • IP66 & IK10 ingress protection
  • ICR auto switch, true day / night
  • 30 ~ 65 feet IR night view distance
  • 3D DNR, True WDR
  • ROI coding (Region of Intrest Feature)
  • Supports local CVBS video output and one-way audio
  • Supports PoE power supply
  • Supports smart phone, iPad, remote monitoring

Description

Model#: IPVD-SB4IR28 4mp IP Vandal-proof Dome with IR & 2.8mm fixed lens



Camera
Image Sensor 1 / 3 “CMOS
Image Size 2688 × 1520
Electronic Shutter 1 / 25 s ~ 1 / 100000 s
Iris Type Fixed
Min. Illumination 0.05 lux @F1.2, AGC ON; 0 lux with IR
Lens  2.8 mm @F1.6, angle of view: 100º
Lens Mount M12
Day & Night ICR
Wide Dynamic Range 120dB
BLC  Yes
HLC  Yes
Defogging  Yes
Digital NR 2D / 3D DNR
Angle Adjustment Pan : 0°~240°, Tilt : 0°~68°, Rotation : 0°~220°
Video Compression H.265/ H.264 / MJPEG
H.265 Compression Standard Main Profile @Leve4.1 High Tier
Resolution 4MP ( 2560×1440 ), 3MP ( 2304×1296 ),1080P ( 1920×1080 ), 720P ( 1280×720 ), D1, CIF, 480×240
Main stream 60Hz :  ( 1 ~ 30fps ) /  1080P( 1 ~ 30fps ) / 720P( 1 ~ 30fps ) 4MP 4MP 3MP( 1 ~ 30fps ) /

50Hz :  ( 1 ~ 25fps ) / 3MP( 1 ~ 25fps ) / 1080P( 1 ~ 25fps ) / 720P( 1 ~ 25fps )

Bit rate 64 Kbps ~ 10 Mbps
Encode Mode VBR / CBR
Quality Five levels under VBR; Freely adjustable under CBR
Image Settings ROI, Saturation, Brightness, Chroma, Contrast,

Wide Dynamic, Sharpen, NR,etc.

Adjustable through client software or web browser

Audio Compression G711A / U
ROI Each ROI to be configured separately

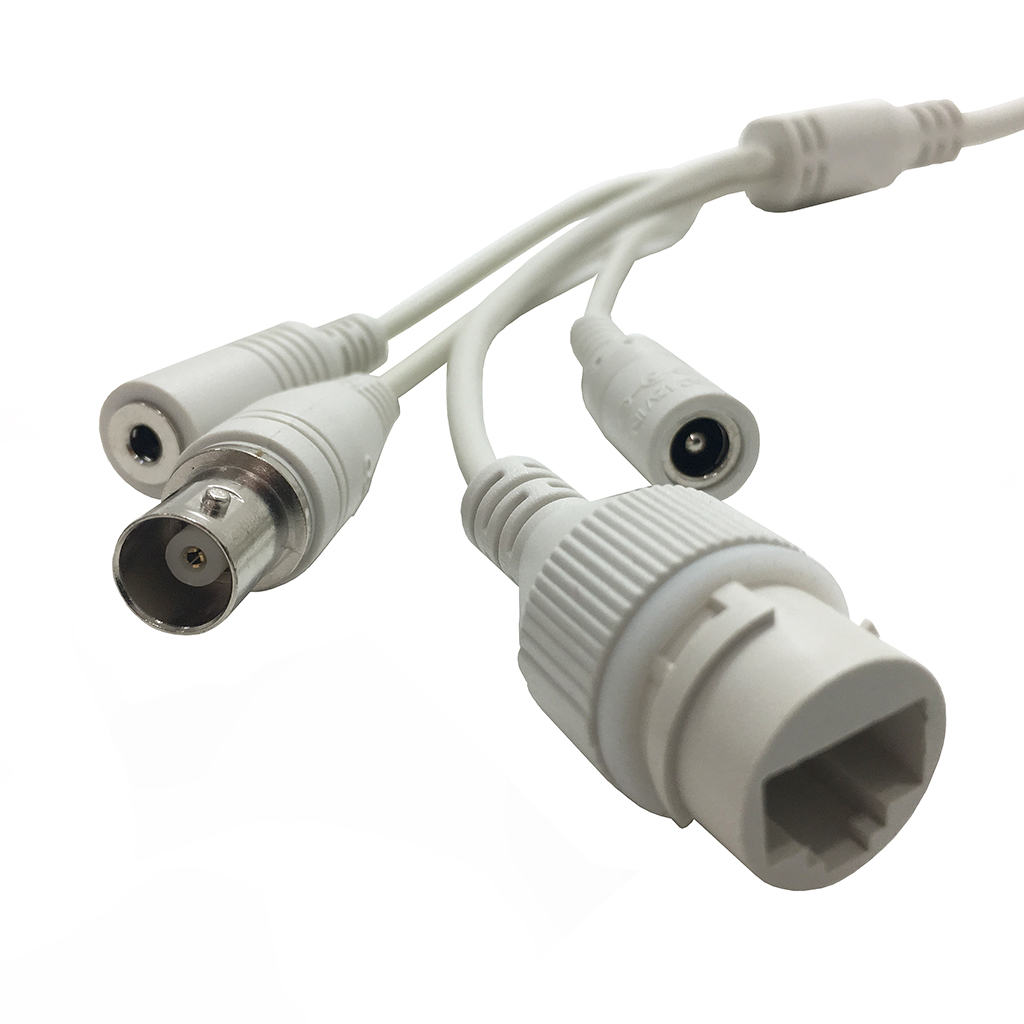

Interfaces
Network RJ45
Audio One-way audio (MIC IN × 1)
Video Output CVBS video output ( BNC × 1 )
Functions
Remote Monitoring IE browsing,CMS remote control
Online Connection Support simultaneous monitoring for up to 10 users;

Support multi-stream real time transmission

Protocol TCP / IP, UDP, DHCP, NTP, R Protocol TSP, PPPoE, DDNS, SMTP, FTP
Interface Protocol ONVIF, GB-T/28181-2011
Storage Network remote storage
Smart Alarm Motion Alarm
PoE Yes
IR Distance 30-65ft (10~20m)
Water-proof IP66

Accessories

Compatible Camera Mounts Part Number: JB-SB-UNIR Sibell Mount JB-SB-UNIR
