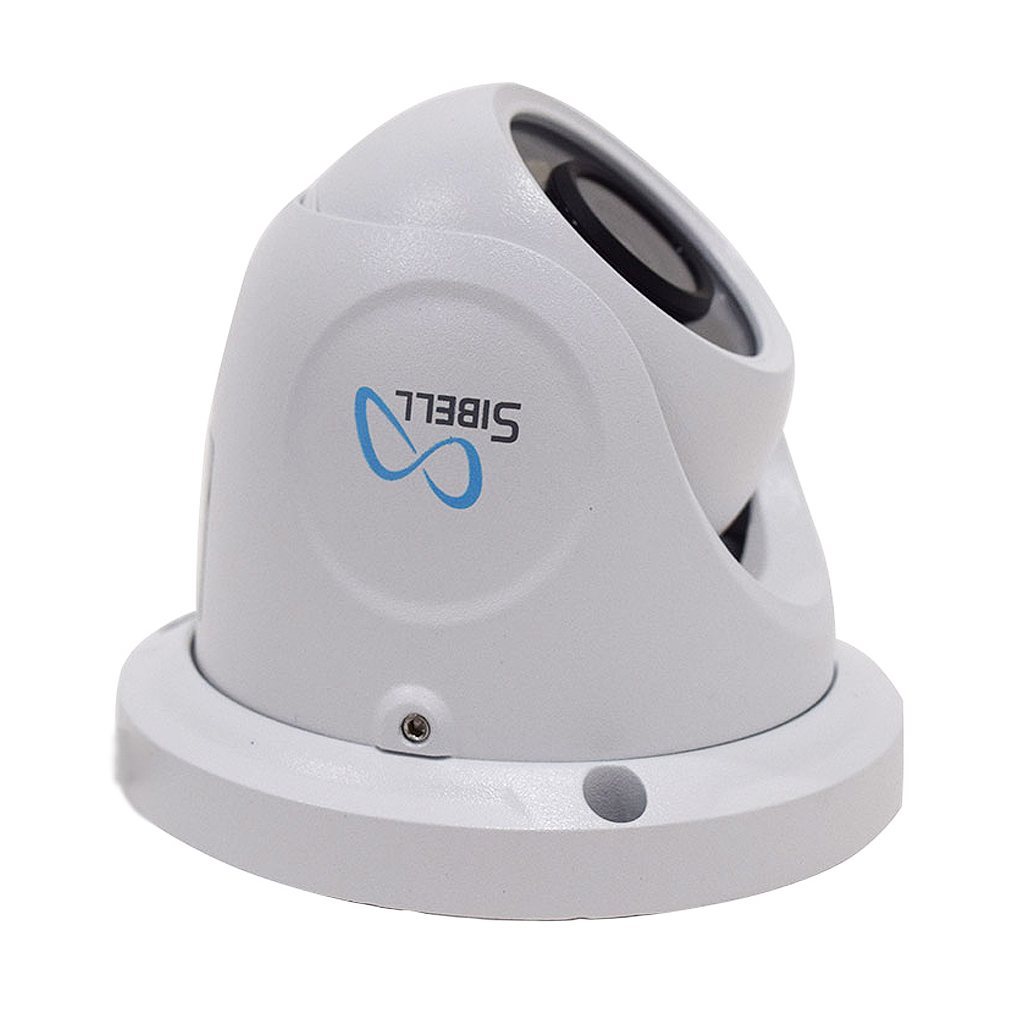

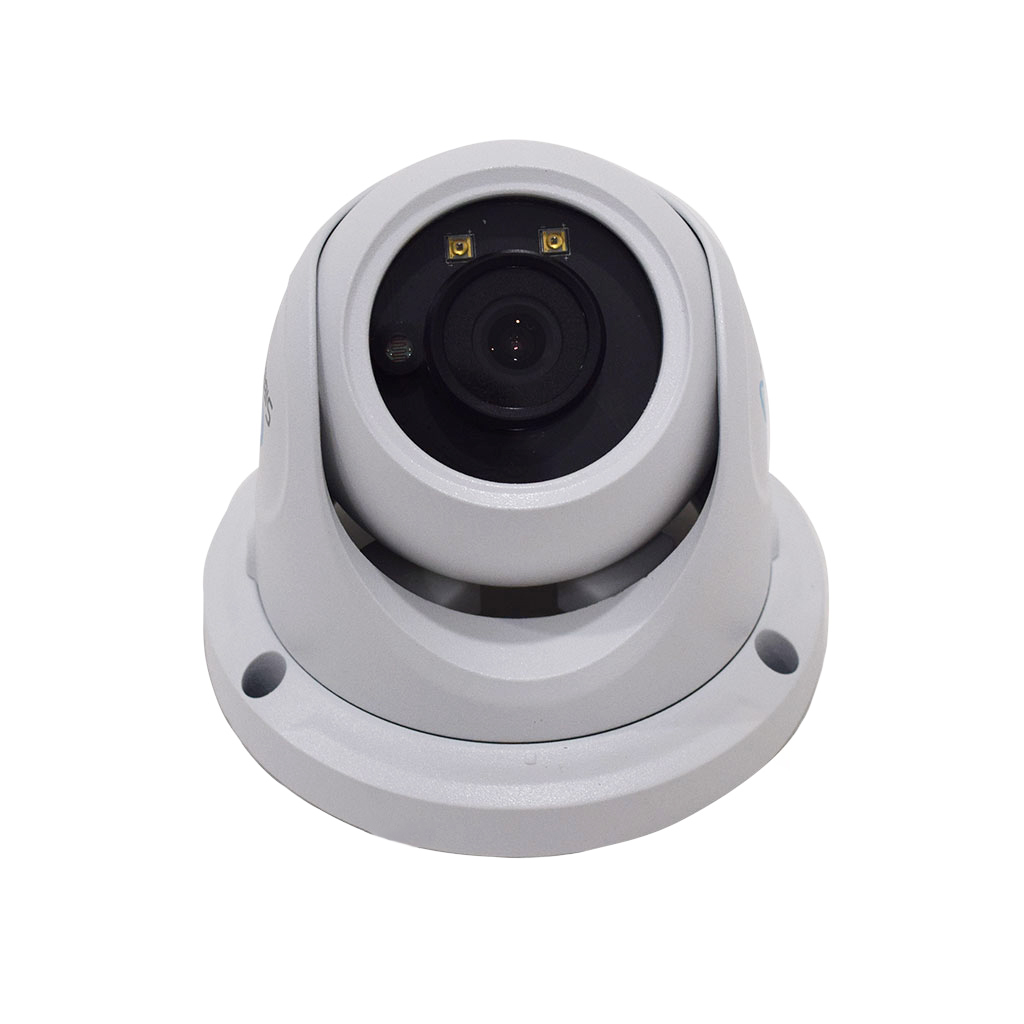

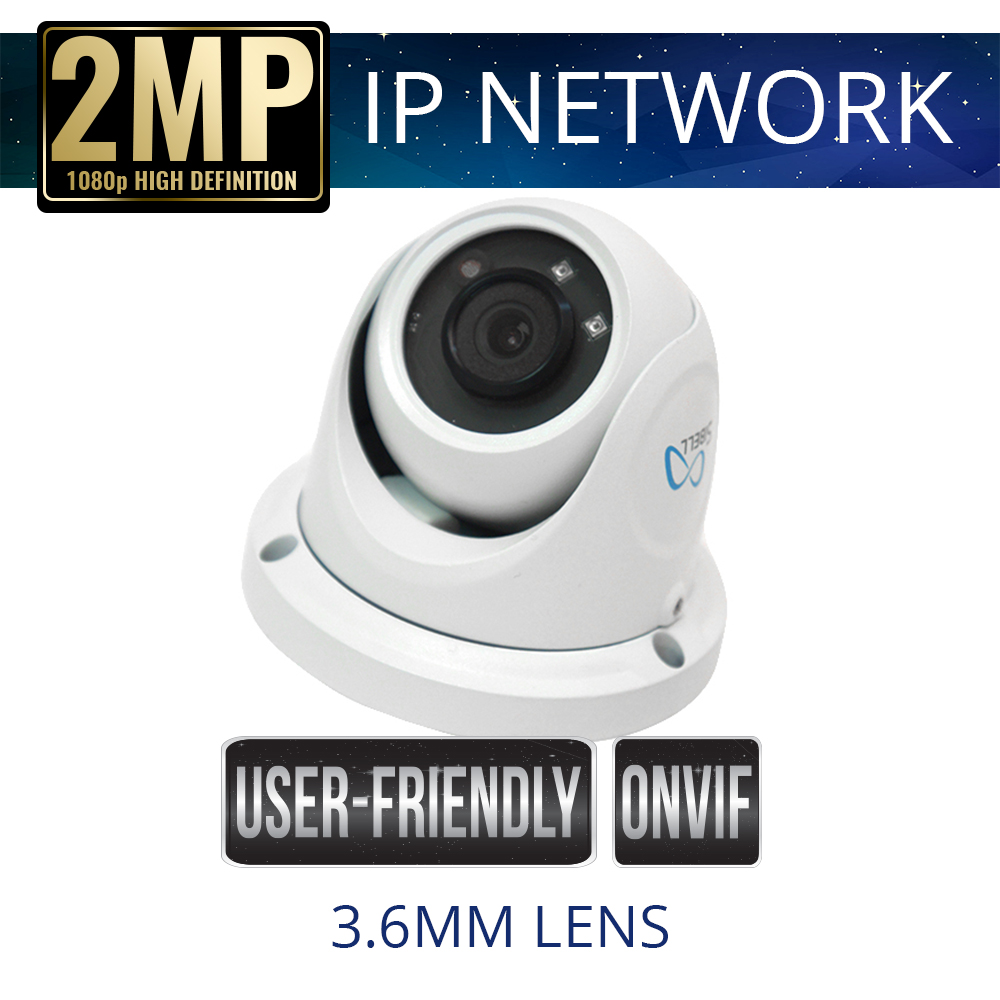

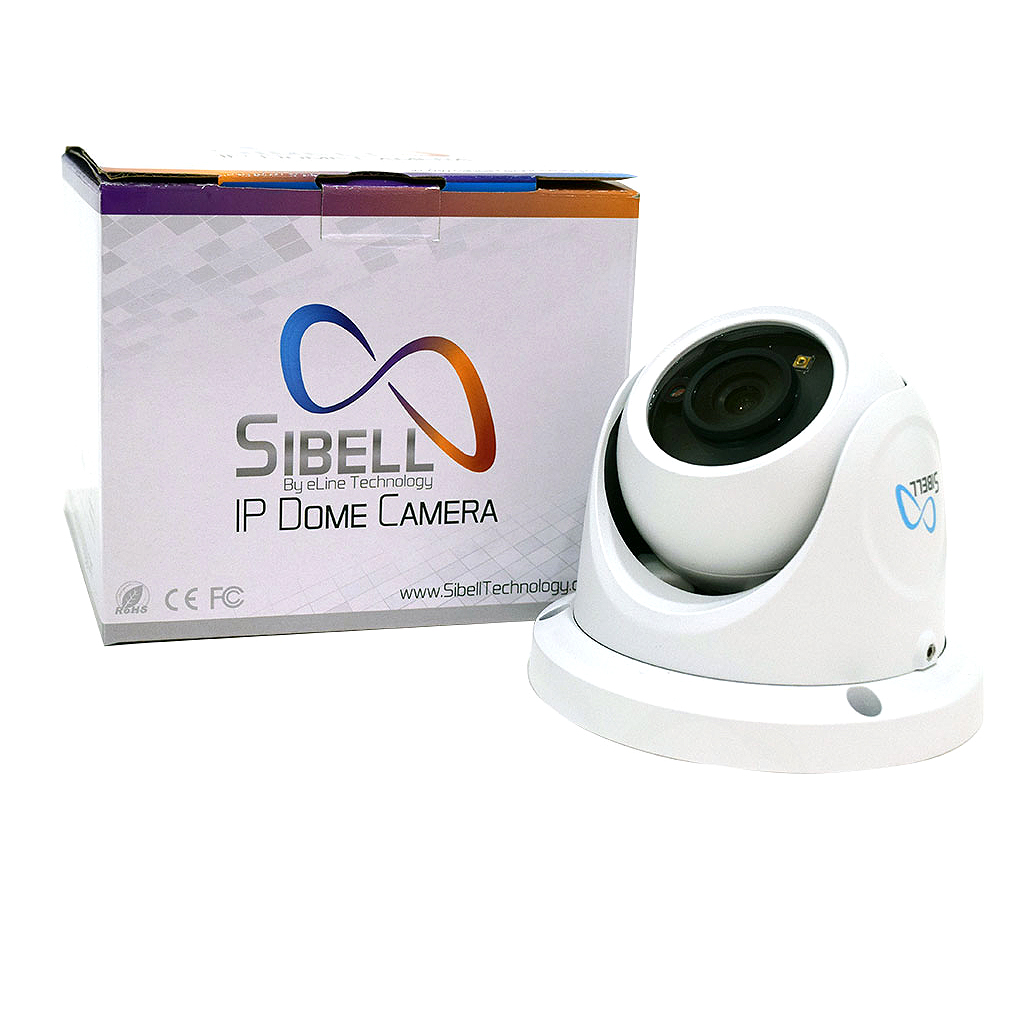

2mp IP Network Eyeball Dome Security Camera

Sibell’s IPOD-SB2IRE IP Network Eyeball Dome Security Camera Provides 2 Mega Pixel real-time 1080p resolutions at 30fps and provides a range of features including Digital WDR, 3D DNR , ICR auto switch and True Day/Night for a variety of lighting situations. This Sibell IP Network Eyeball Dome Security Camera Provides Night Vision IR distance up to 33 – 66 Feet. The IPOD-SB2IRE also supplies an easy plug and play POE Power supply and is IP66 Rated for indoor and outdoor environments.  All Sibell IP cameras have ONVIF allowing for integration with other ONVIF platforms.

Key Features:

  • 2 Mega Pixel 1080P ( 1920 x 1080 )
  • Max. Resolution: 1920 x 1080
  • ICR auto switch, true day / night
  • 33 ~ 66 feet IR night view distance
  • 3D DNR, digital WDR
  • ROI coding
  • Supports PoE power supply
  • Supports smart phone, iPad, remote monitoring
  • Supports three streams


Model#: IPOD-SB2IRE 2mp IP Network Eyeball Dome

Image Sensor 1 / 2.8 “CMOS
Image Size 1920 x 1080
Electronic Shutter 1 / 25 s ~ 1 / 100000 s
Auto Iris Fixed Iris
Min. Illumination 0.1 lux @F1.2,AGC ON; 0 lux with IR
Lens 3.6 mm @ F1.6, angle of view: 79°
Lens Mount M12
Day & Night ICR
Wide Dynamic Range Digital WDR
Digital NR 3D DNR
Angle Adjustment Any Angle
Video Compression H.264 / MJPEG
Baseline Profile / Main Profile / High Profile
Resolution 1080P ( 1920×1080 ),720P ( 1280×720) D1,CIF(480×240)
Main stream 60Hz : 1080P( 1 ~ 30fps ) / 720P( 1 ~ 30fps )

50Hz : 1080P( 1 ~ 25fps ) / 720P( 1 ~ 25fps )

Bit rate 256Kbps ~ 5Mbps
Encode Mode VBR / CBR
Quality Five levels under VBR; Freely adjustable under CBR
Image Settings ROI, Saturation, Brightness, Chroma, Contrast,

Wide Dynamic, Sharpen, NR,etc.

Adjustable through client software or web browser

Network RJ45
Remote Monitoring IE browsing, CMS remote control
Online Connection Support simultaneous monitoring for up to 3 users;

Support multi-stream real-time transmission

Interface Protocol ONVIF
Storage Network remote storage
Smart Alarm Motion Alarm
PoE Yes
IR Distance 33-66ft (10~20m)
Water-proof IP66
Power Supply DC 12V / PoE
Power Consumption < 2W
IR Consumption ON < 4W
Operating Environment – 20 °C ~ 50 °C,10 % ~ 90 % humidity
Dimensions ø 3.5in × 4in  (ø 87mm × 108mm)
Weight ( net ) 369g (1lbs)
Installation Wall mounting, pendent mounting


Compatible Camera Mounts
Part Number: JB-SB-BR mount Part Number: WB-SB-ED wm-sb-ed


Download “IPOD-SB2IRE - Specsheet” ipod-sb2ire-specsheet.pdf – Downloaded 98 times – 174 KB

Download “IPOD-SB2IRE- Quick Start Guide” IPOD-SB2IRE-QSG.pdf – Downloaded 107 times – 1 MB

Download “IPOD-SB2IRE-Manual” IPOD-SB2IRE-Manual.pdf – Downloaded 124 times – 2 MB
