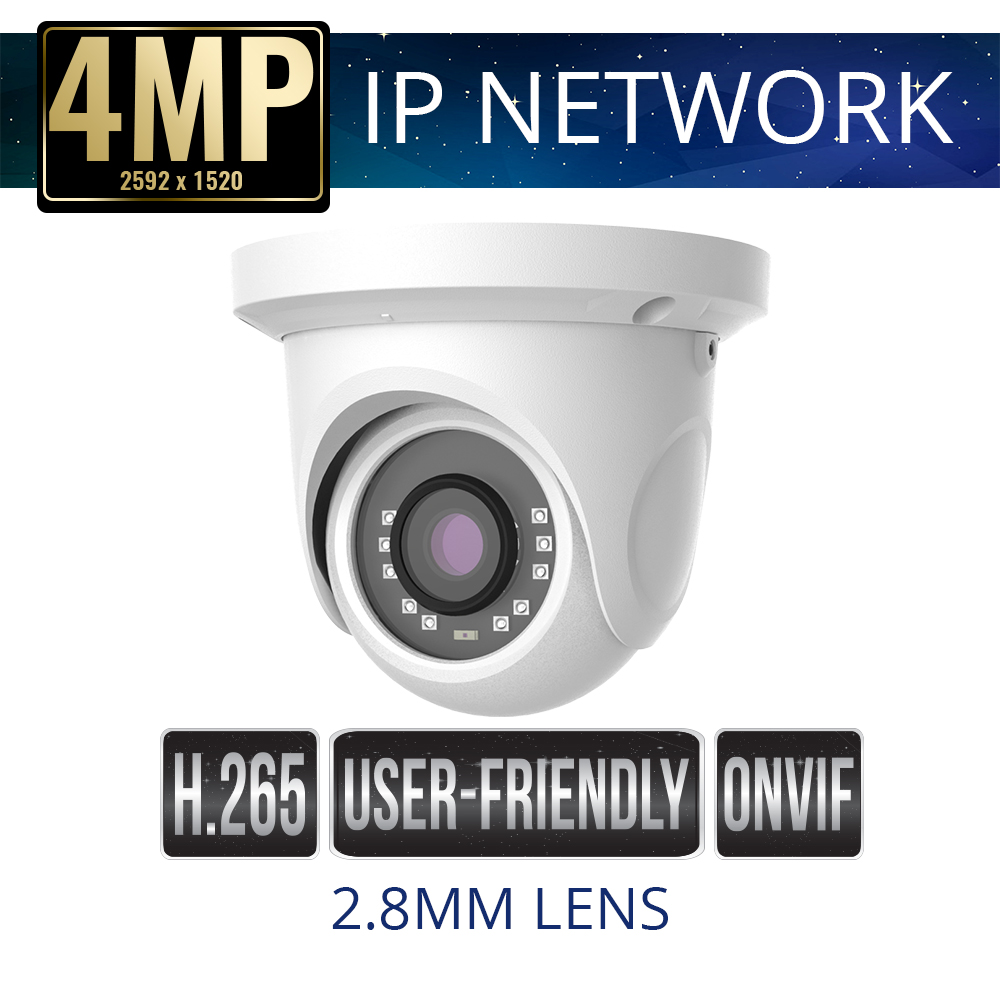

2.8mm 4mp Economy IP Dome Camera Weatherproof with IR
Sibell’s IPOD-SBE4IR28 Economy IP Dome Camera for video security provides 4 Mega-Pixel real-time resolutions at 30fps. The IPOD-SBE4IR28 provides advanced features like 3D DNR Wide Dynamic Range (digital WDR) and IR Cut Filter (ICR) True Day/Night to deliver quality imagery in any type of lighting. This IP dome Camera displays Night Vision IR distance from 32 – 65 Feet and is Plug and Play POE Power supply. The Sibell IPOD-SBE4IR28 is IP66 Rated weatherproof for indoor or outdoor use. All Sibell IP cameras have ONVIF allowing for integration with other ONVIF platforms and work seamlessly with Sibell Recorders.
Key Features:
- 4 Mega Pixel ( 2592 x 1520 )
- Max. Resolution: 2592 x 1520
- H.265 Coding
- ICR auto switch, true day / night
- 32 ~ 65 feet IR night view distance
- 3D DNR, digital WDR
- ROI coding
- Supports PoE power supply
- Supports smart phone, iPad, remote monitoring
Description
Model#: IPOD-SBE4IR28 4mp Economy IP Dome Camera |
|
| Camera | |
| Image Sensor | 1 / 3 “CMOS |
| Image Size | 2592 × 1520 |
| Electronic Shutter | 1 / 25 s ~ 1 / 100000 s |
| Min. Illumination | 0.05 lux @F1.2, AGC ON; 0 lux with IR |
| Lens | 2.8mm Fixed |
| Lens Mount | M12 |
| Day & Night | ICR |
| Wide Dynamic Range | 120dB |
| Digital NR | 2D/ 3D DNR |
| Angle Adjustment | Any Angle |
| Image | |
| Video Compression | H.265 / H.264 / MJPEG |
| H.265 Compression
Standard |
Main Profile @Leve4.1 High Tier |
| Resolution | 4MP ( 2592 × 1520 ), 2K ( 2560 × 1440 ), 3MP ( 2304 × 1296 ),
3MP ( 2048 × 1536 ), 1080P ( 1920 × 1080 ), 720P ( 1280 × 720 ), D1, CIF, 480 × 240 |
| Main stream | 60Hz : 4MP( 1 ~ 20fps ) / 2K( 1 ~ 20fps ) / 3MP( 1 ~ 30fps ) / 1080P( 1 ~ 30fps ) / 720P( 1 ~ 30fps )
50Hz : 4MP( 1 ~ 20fps ) / 2K( 1 ~ 20fps ) / 3MP( 1 ~ 25fps ) / 1080P( 1 ~ 25fps ) / 720P( 1 ~ 25fps ) |
| Bit rate | 128Kbps ~ 8Mbps |
| Encode Mode | VBR / CBR |
| ROI | 3 ROI |
| Quality | Five levels under VBR; Freely adjustable under CBR |
| Image Settings | ROI, Saturation, Brightness, Chroma, Contrast, Wide Dynamic, Sharpen, NR, Antiflicker, etc. adjustable through client software or web browser |
| Interfaces | |
| Network | RJ45 |
| Functions | |
| Remote Monitoring | IE browsing,CMS remote control |
| Online Connection | Support simultaneous monitoring for up to 10 users;
Support multi-stream real time transmission |
| Protocol | TCP/IP, UDP, DHCP, NTP, RTSP, DDNS, SMTP,FTP |
| Interface Protocol | ONVIF |
| Storage | Network remote storage |
| Smart Alarm | Motion Alarm |
| Smart Analysis | Video exception, line crossing, intrusion, etc. |
| PoE | Yes |
| IR Distance | 32-65ft (10~20m) |
| Water-proof | IP66 |
| Other | |
| Power Supply | DC 12V / PoE |
| Power Consumption | < 2.5W |
| IR Consumption ON | < 5W |
| Operating Environment | – 20 °C ~ 50 °C,10 % ~ 90 % humidity |
| Dimensions ( mm ) | ɸ 87 × 108 |
| Weight ( net ) | 415g |
Accessories

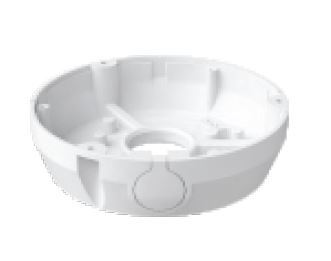

Compatible Camera Mounts Part Number: JB-SB-BR
Documents
Download “IPOD-SBE4IR28-specsheet”
IPOD-SBE4IR28-specsheet.pdf – Downloaded 398 times – 349.68 KBYou must be logged in to post a review.
