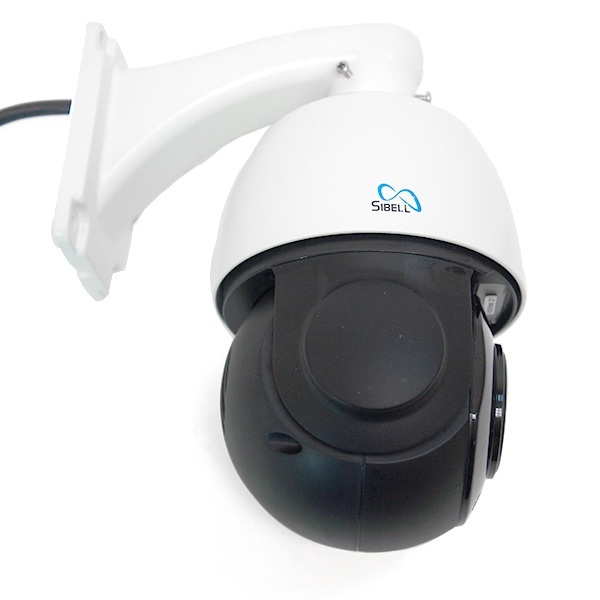

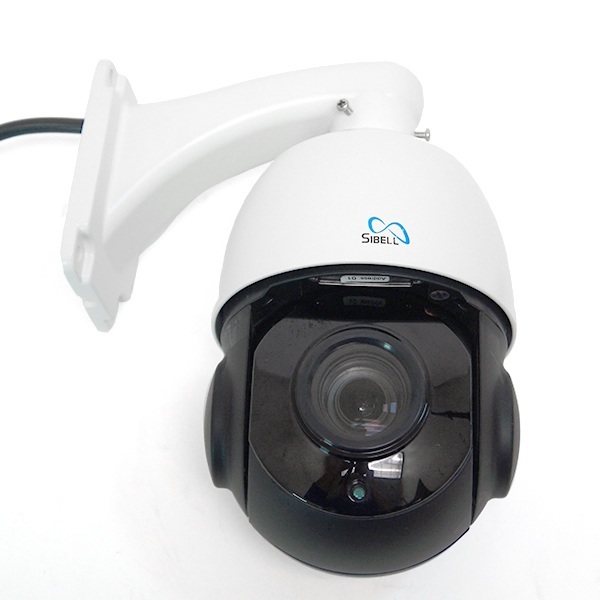

2mp TVI PTZ Camera Weatherproof with IR & 18x Optical Zoom

Sibell TVIPTZ-SB2IR18XME 2mp TVI PTZ Camera Weatherproof with IR & 18x Optical Zoom for video security provides 2 Mega Pixel real-time resolutions at 30fps. This powerful compact Pan Tilt and Zoom camera Supports 18x Optical Zoom to see intimate details and is programmable for 360° Scan with 220 preset points. Powerful solutions TVI hd over coax, weatherproof camera that can see up 195 feet in the dark.

Key Features:

  • 2 Mega Pixel 1080P (1920 x 1080)
  • 18X Optical Zoom
  • 195 feet of IR night view distance
  • Programmable 360° Scan
  • 220 Preset Points
  • Weatherproof IP66 Rated
  • TVI High Definition Over Coaxial Cable
  • 12vDC/3A Power Supply

Product Description

Model#: TVIPTZ-SB2IR18XME 2mp TVI PTZ Camera Weatherproof with IR & 18x Optical Zoom

Camera
Image Sensor1/2.8” SONY CMOS Sensor 2.4MP
Image Resolution1080P
S/N Ratio≥58dB
PTZ
Horizontal Rotation Speed45°/s
Horizontal Rotation Range360°
Tilt Rotation Speed30°/s
Tilt Rotation Range93°
Auto FlipHorizontal 180°, Vertical 93°
Ratio SpeedSupport
360° ScanUser programmable
360° Scan Speed01-64speed setting available
A-B ScanUser programmable
A-B Scan Speed01-64speed setting availabl
PWR on ActionMemory/Tour/360 scan/AB scan/Home/Nop
Park Time1-60 mins setting available
Dwell Preset1-60s interval available
Preset Points220
Go to Preset Speed200°/s
Guard Tours3 groups
Guard PointsMax.16 points, dwell time user selectable
Lens
Focus Length5.35mm-96.3mm
Focus Control18X Optical Zoom
Night Vision
Infrared LED42x6PCS
IR Range195 Feet (60m)
Auxiliary Interface
Communication ProtocolPelco-D, Pelco-P
CommunicationRS485
Baud Rate1200/2400/4800/9600bps
General
WeatherproofIP66 Rated
Operating Temperature Indoor: 0°~ +40°   Outdoor:  -40°~ +60°
Operating Humidity≤95% Non Condensing
Heater & BlowerAuto temperature control
Auto Control IR LEDPWM
OSD Menu Yes English
PowerDC12V/3A
Power Consumption≤ 36W
Lightning ProtectionTransient voltage 3000V
Dimension29.5x28x17(cm)
Weight2.5kgs

Documents

Download “TVIPTZ-SB2IR18XME Specsheet” TVIPTZ-SB2IR18XME-Specsheet.pdf – Downloaded 214 times – 158 KB

Download “TVIPTZ-SB2IR18XME & TVIPTZ-SB2IR18XE Manual” TVIPTZ-SB2IR18XE-SB2IR18XME-USER-MANUAL.pdf – Downloaded 248 times – 14 MB
