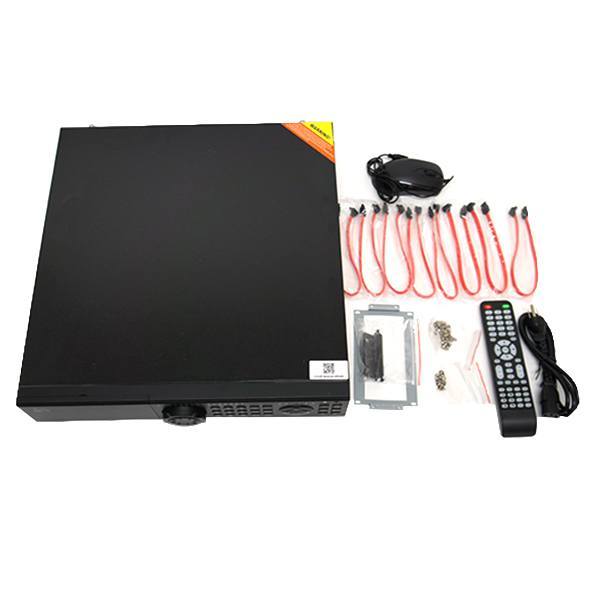

NVR-SB32-16P-front-3NVR-SB32-16P-front-2NVR-SB32-16P-backNVR-SB32-16P-box-contentsNVR-SB32-16P-frontNVR-SB32-16P-top

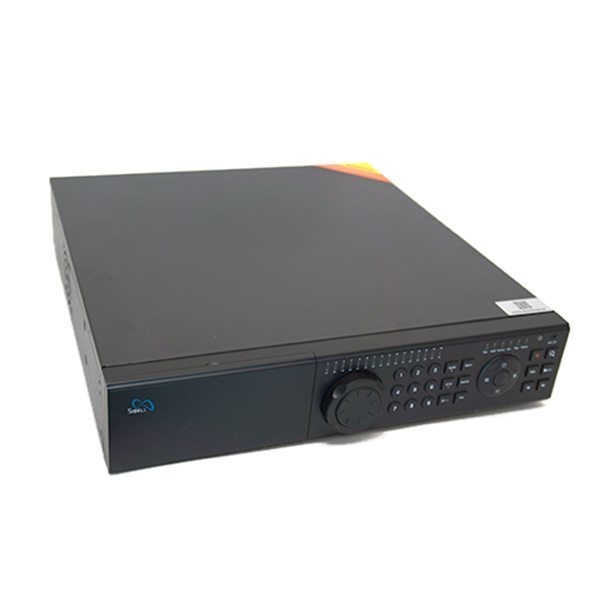

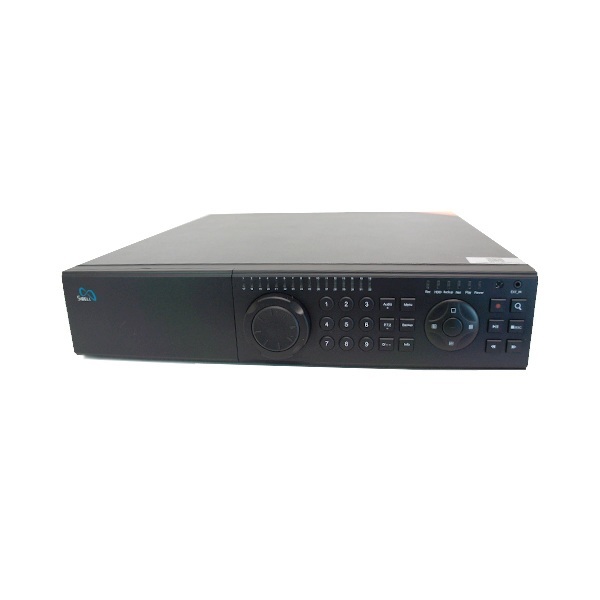

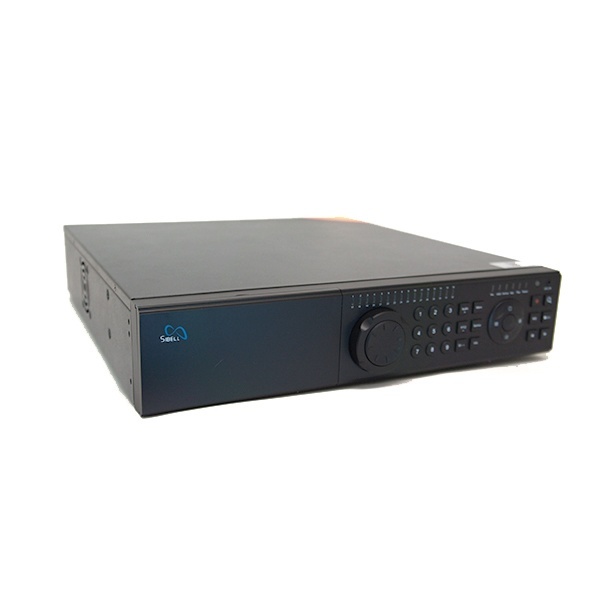

32ch Sibell NVR 8HDD with 16 PoE Ports

NVR-SB32-16P 32ch Sibell NVR 8HDD with 16 PoE Ports supports camera resolutions from 720p to 5 Mega Pixels. H.265 High profile compression available to help save you on hard drive space. This 32ch Sibell NVR 8HDD can take a 8 hard drives up to 6TB each. The Sibell User interface was designed for usability, and can easily be interpreted as one of the most intuitive systems developed and embedded. This 32 channel machine is powerful enough for the largest jobs without losing any of the usability and has 16 PoE ports to Support Power over Ethernet cameras. This NVR will also take ONVIF compatible devices.

Key Features:

  • Supports 32ch 1MP(720p) – 5MP IP Inputs
  • Supports 16 PoE Ports for connection and power
  • H.265 high profile compression format
  • Intuitive, user-friendly GUI with Modular Design
  • Recording Modes in Manual, motion, sensor or timer
  • 16 ch Simultaneous playback
  • Search video: Time Slice, Time, Event or Tag Search
  • Express backup options
  • Remote Monitoring via Browser or CMS
  • Mobile Viewing Via Sibell Mobile App on IOS & Android
  • NAT function & QRCode scan to set up mobile viewing

Click Here to Learn More about the User Interface Features

Product Description

Model#: NVR-SB32-16P 32ch Sibell NVR 8HDD with 16 PoE Ports

SystemCompressionStandard H.265
OSEmbedded Linux
VideoNetwork Input32 CH IPC input
Bandwidth256Mbps
Network Access Format



5MP / 4MP / 3MP / 1080P / 960P / [email protected] / 30fps
OutputHDMI × 1: 4K x 2K/ 1920 x 1080 / 1280 x 1024

VGA x1: 1920×1080/ 1280 x 1024

AudioNetwork Input32 CH IPC audio input
2-way AudioRCA x 1
Local OutputRCA x 1
RecordRecord StreamDual stream recording
Resolution5MP / 4MP / 3MP / 1080P / 960P / 720P
ModeManual, timer, motion, sensor
PlaybackSimultaneous PlaybackMax 16 CH
SearchTime slice / time / event / tag search
Smart SearchHighlighted color to display the camera record in a certain period of time, different colors refers to different record events
FunctionPlay, pause, FF, FB, digital zoom, etc.
AlarmModeManual, sensor, motion, exception
Input16 CH local alarm input, support IPC alarm input
Output4Ch
TriggeringRecord, snap, preset, e-mail, etc.
NetworkInterfaceRJ45 10 / 100 / 1000 Mbps × 1
PoE PortRJ45 x 16
ProtocolTCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP
Web ClientMax 10 users online
Mobile DeviceOSIOS, Android
StorageHDDSATA × 8, e-SATA × 1, max 6T per HDD
BackupLocal BackupU disk, USB mobile HDD
Network BackupYes
PortUSBUSB 2.0 × 1 ( one in the front panel and the other in the rear panel ), USB 3.0 × 1 ( rear panel )
Remote ControllerYes
OthersPower SupplyATX
Consumption≤ 15W ( without HDD )
Dimensions17 × 18 × 3.5 ( W × D × H ) in
Environment-10 °C ~ 50 °C 10% ~ 90% humidity

Documents

Download “NVR-SB32-16p Specsheet” NVR-SB32-16P.pdf – Downloaded 212 times – 794 KB

Download “NVR-SB32-16P Quick Start Guide” NVR-SB32-16P-QSG.pdf – Downloaded 237 times – 2 MB

Download “Sibell NVR Manual” Sibell-2016-NVR-manual.pdf – Downloaded 788 times – 6 MB
