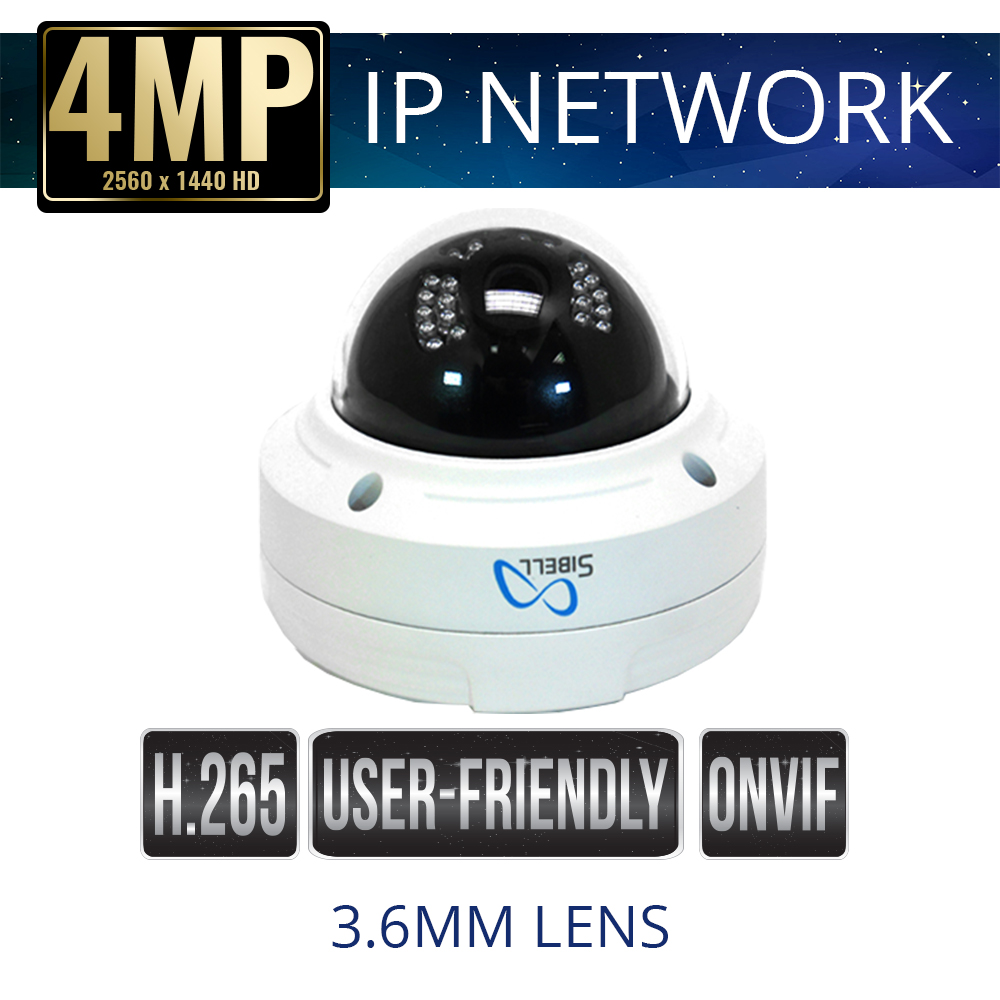

4mp IP Vandal-proof Dome Weatherproof with IR

Sibell IPVD-SB4IR 4mp IP Vandal-proof Dome Weatherproof Camera for video security provides 4 Mega Pixel real-time resolutions at 30fps. 3D DNR Wide Dynamic Range (True WDR) and IR Cut Filter (ICR) True Day/Night to deliver quality imagery in any type of lighting environment. Sibell 4 Mega Pixel Camera offer exceptional video day or night, the IPVD-SB4IR has a 3.6mm wide angle fixed lens and has IK10 ingress protection (protects from criminal tampering). The Night Vision IR distance is from 30 – 65 Feet and come with easy  PoE (power over Ethernet) Power supply.  Thie vandal proof dome is also weatherproof IP66 Rated making it great for outdoor or indoor applications. All Sibell IP cameras use ONVIF allowing for integration with ONVIF devices.

Key Features:

  • 4 Mega Pixel ( 2592 x 1520 ) (2560 x 1440)
  • H.265 video encoding (optional)
  • IP66 & IK10 ingress protection
  • ICR auto switch, true day / night
  • 30 ~ 65 feet IR night view distance
  • 3D DNR, True WDR
  • ROI coding (Region of Intrest Feature)
  • Supports local CVBS video output and one-way audio
  • Supports PoE power supply
  • Supports smart phone, iPad, remote monitoring
  • Supports three streams

Description

Model#: IPVD-SB4IR 4mp IP Vandal-proof Dome Weatherproof

Camera
Image Sensor 1 / 3 “CMOS
Image Size 2560 x 1440
Electronic Shutter 1 / 25 s ~ 1 / 100000 s
Min. Illumination 0.05 lux @F1.2,AGC ON; 0 lux with IR
Color : 0.05 lux @F1.2, AGC ON; B / W : 0.01 lux @F1.2, AGC ON
Lens 3.6mm
Lens Mount M12
Angle Adjustment Pan : 0°~240°, Tilt : 0°~68°, Rotation : 0°~220°
Video Compression H.265/ H.264 / MJPEG
Resolution 4MP ( 2560×1440 ), 3MP ( 2304×1296 ),1080P ( 1920×1080 ), 720P ( 1280×720 ), D1, CIF, 480×240
Main stream 60Hz :  ( 1 ~ 30fps ) /  1080P( 1 ~ 30fps ) / 720P( 1 ~ 30fps ) 4MP 4MP 3MP( 1 ~ 30fps ) /

50Hz :  ( 1 ~ 25fps ) / 3MP( 1 ~ 25fps ) / 1080P( 1 ~ 25fps ) / 720P( 1 ~ 25fps )

Bit rate 64 Kbps ~ 10 Mbps
Encode Mode VBR / CBR
Quality Five levels under VBR; Freely adjustable under CBR
Image Settings ROI, Saturation, Brightness, Chroma, Contrast,

Wide Dynamic, Sharpen, NR,etc.

Adjustable through client software or web browser

Interfaces
Network RJ45
Audio One-way audio (MIC IN × 1)
Video Output CVBS video output ( BNC × 1 )
Functions
Remote Monitoring IE browsing,CMS remote control
Online Connection Support simultaneous monitoring for up to 10 users;

Support multi-stream real time transmission

Protocol TCP / IP, UDP, DHCP, NTP, R Protocol TSP, PPPoE, DDNS, SMTP, FTP
Storage Network remote storage
Smart Alarm Motion Alarm
Day & Night ICR
PoE Yes
IR Distance 30-65ft (10~20m)
Water-proof IP66
Other
Power Supply DC 12V / PoE
Power Consumption < 2.5W
IR Consumption ON < 4W
Operating Environment – 20 °C ~ 50 °C,10 % ~ 90 % humidity
Dimensions ( mm ) ø 116 × 91
Weight ( net ) 605g

Accessories

Compatible Camera Mounts Part Number: JB-SB-UNIR Sibell Mount JB-SB-UNIR

Documents

Download “IPVD-SB4IR Specsheet” IPVD-SB4IR-Specsheet.pdf – Downloaded 293 times – 328 KB

Download “IPVD-SB4IR Quick Start Guide” IPVD-SB4IR-QSG.pdf – Downloaded 290 times – 2 MB

Download “Sibell 4MP User Manual for Varifocal Lens Bullet and Dome” Sibell-4MP-user-munual-for-varifocal-lens-bullet-and-dome.pdf – Downloaded 408 times – 2 MB
